Product Description
Die casting is a professional manufacturing tech for metal forming industry. We can offer Aluminium die casting, zinc die casting, copper die casting. And with the service for post-treatment, such as blasting, polishing, machining, plating, anodizing, as well as good service, we hope we can earn your trust in this field...?
Sometimes, we use Cast& flow simulation software to help to get good quality control for die casting production.?
For cold chamber process, the molten metal is ladled into the cold chamber for each shot. There is less time exposure of the melt to the plunger walls or the plunger. This is particularly useful for metals such as Aluminum, and Copper (and its alloys) that alloy easily with Iron at the higher temperatures. Such as Aluminium Die Casting we ca offer.?
For hot chamber process the pressure chamber is connected to the die cavity is immersed permanently in the molten metal. The inlet port of the pressurizing cylinder is uncovered as the plunger moves to the open (unpressurized) position. This allows a new charge of molten metal to fill the cavity and thus can fill the cavity faster than the cold chamber process. The hot chamber process is used for metals of low melting point and high fluidity such as tin, zinc, and lead that tend not to alloy easily with steel at their melt temperatures. Such as Zinc Die castings, Copper Die castings we offer.?
Pressure die casting is a competitive casting method when the components are needed at high volumes or when better tolerances and surface finish are required than can be achieved by gravity die casting. The need for machining is very low due to the close casting tolerances. Heat treatment of pressure die casting is not possible but due to the high rate of solidification the mechanical properties are good.?
Our factory have Large spectrum of die casting machines (280T - 1600T), can produce Variety of alloys available to meet in house production requirements and to provide quality custom-made die-casting parts for other industries.
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
Item |
Description |
Contents |
Die casting mould |
Mold core material |
H13, Dievar, DAC 55, Germany 12344V, etc. |
Mold core treatment |
Vacuum hardening |
Mold base material |
QT600, 45#, 50#, etc. |
Mold base treatment |
Thermal refining |
Max mould |
2000T |
Leading time |
50 days |

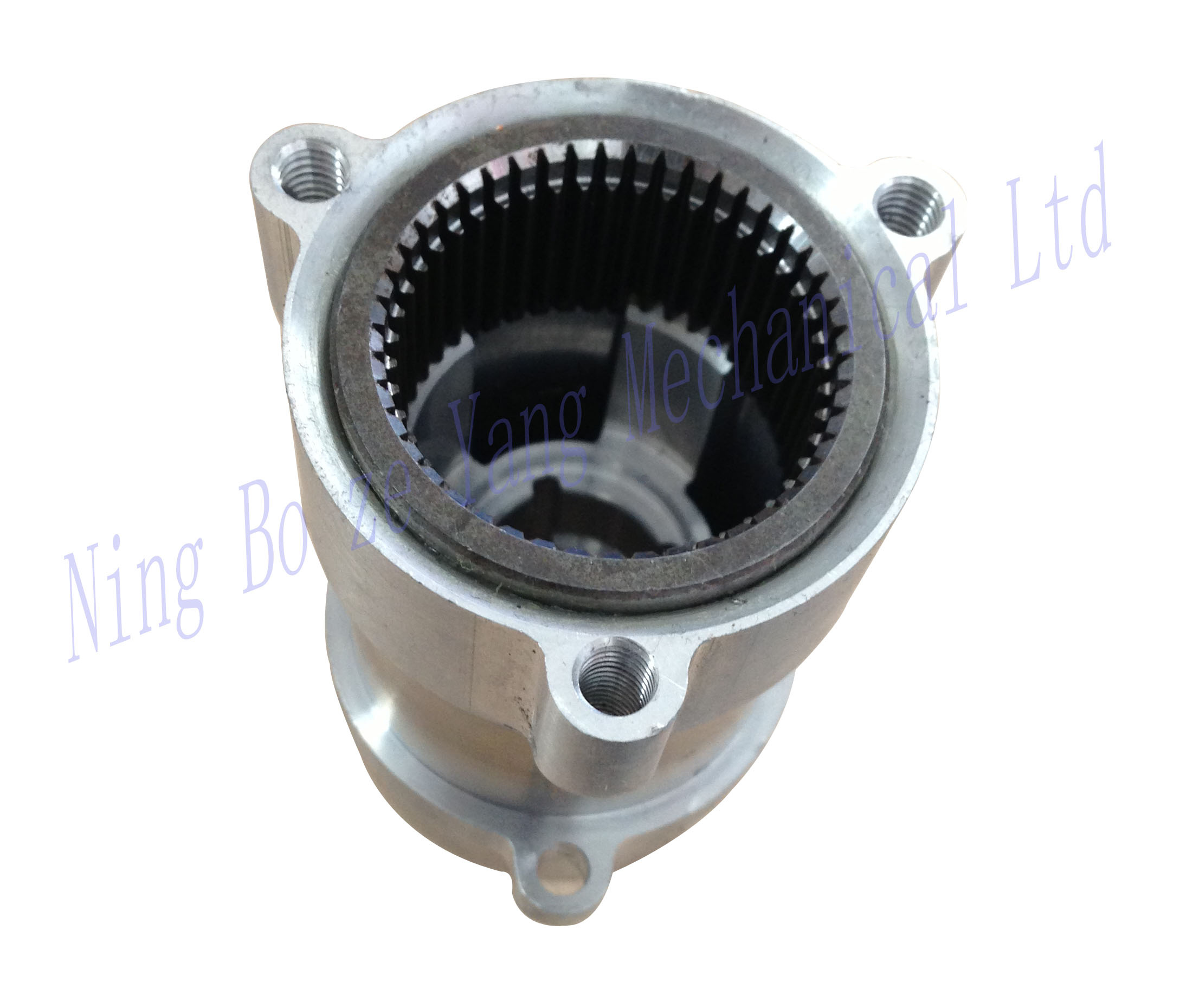

Die casting parts |
Name: |
Gear Housing For Solar Generator |
Material: |
ADC12/A380/A360/Alsi9MgMn/Alsi12Cu2Fe |
Surface treatment: |
Electrophoresis |
Package: |
Bubble Pack & Carton & Pallet |
Capacity: |
2000/month |
MOQ: |
500pcs |
Industry: |
Solar energy fittings |
Production Equipment |
Electric discharge machines EDM: |
LCG703D2 16P DA7140 |
|
BM70 DA7135 |
|
BM50 EDM3540M-A |
Toshiba die casting machine |
|
LKTECH die casting machine |
|
Natural gas concentration meling furnace |
|
CNC amchining center: |
TMC-960 TMC-900 |
|
HTM-850G HTM-1500G |
CNC lathe: |
L-5A C6250A |
|
C0632A DB7155 |
Infiltration production line |
|
Shot-blasting machine |
|
Carving machine: |
DC-42 DC-2007 |
Knee type milling machine : |
X6130A 500T |
|
X53K 400T |
Grinding machine: |
MT140/G 280T |
|
M7163*12G/GM 160T |
Shot-blasting machine |
|
Testing Equipment |
Ultrasonic washing equipment |
|
High-precision CMM |
|
Spectrograph |
|
X-ray flaw detector |
|
Salt fog tester |
|
Universal tensile testing machine |
|
Roughness measuring instrument |
|
Hardness tester |
|
Projector |
|
3000i Flexible 3D Measurement System |
|
Rockwell Hardness Tester |
|
Ningbo Jiangdong ZeYang Machinery Co., Ltd. is engaged in comprehensive multi-business, industry and trade integration of mold designing & manufacturing, aluminum alloy and zinc alloy casting, precision machining, heat treatment and surface treatment. It's located in No. 16-1 Zhousudu Road Jiangdong, Ningbo, China. Our own factory-Ningbo High-tech Zone Sansheng Aluminum Co., Ltd was established in 1998. We got export license at year 2008 with name of ZeYang. Our worldwide sales cover Canada, USA, Germany, Israel, France, Sweden, Norway, Italy, Chile, Peru, South Korea, etc. We are also qualified supplier of Flextronics. In 2012, we successfully set a new agent in Israel which is also responsible for worldwide sales.
From designing to delivery; From manufacturing to end testing; From single part to assembly, Zeyang people are full of enthusiam to focus on every single details to give every of our customers the star-level service!
We believe we can have a splendid cooperation in near future.
