Product Description

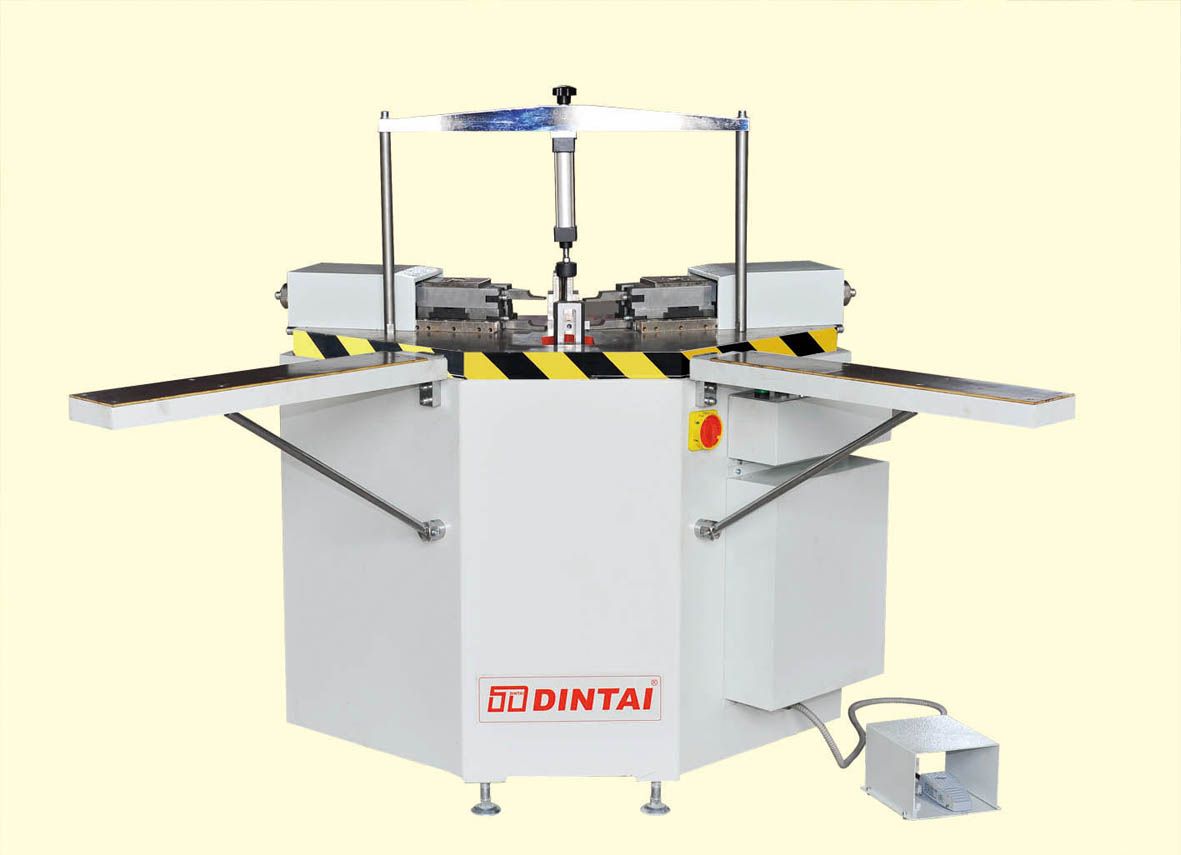

Aluminum corner crimping mmachine --multi-bytes corner crimping machine for aluminum window and doorZJ-120H
This machine is used for aluminum window crimping
Hydraulic system supplied work smoothly and reliable
It adopt PLC control make sure side cutter synchronous group horns
Double tool, the position is adjustable
Elevating the primary orientation institutions
Main technique parameter
Power supply: 380H
Input power: 1.6kW
Hydraulic pressure: 20MPa
Air pressure: 0.5-0.8mPa
Air consumption: 2L/min
Processing Max. Width: 120mm
Stroke: 50mm
Group stroke: 30mm
Overall dimension: 1020× 650× 1400mm
Weight: 420kgs
Jinan dingliyuantai machinery Co., Ltd. is located in jinan and is specialized in manufacturing window and door machines.
With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
