| Prod Model: |
PB1100T/1400T//1800T/2000T/2500T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Extrusion Machine |
Product Description
Usage: Mainly to extrude all kind of aluminum profiles
Characteristics: We combine domestic and international modern advanced extrusion technology, and are specialized in all kinds of extruders and oil hydraulic equipment. Manufacture.

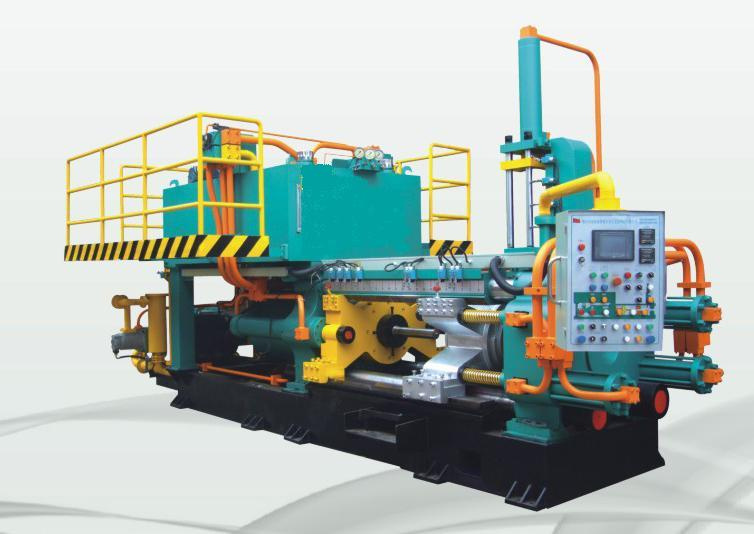

The extrusion press is an automatic, horizontal, hydraulic pressure type which features with four-cylinder die-locking clamping system and numerical constant speed extrusion systems, which enhance the stability of the production at low power consumption and increase the accepted rates of the finished products up to 80% to 90%
Electric and hydraulic devices:
All electric control elements are from Schneider
PLCs from Japan Mitsubishi are adopted. A 10.4" color touch screen is available.
The main hydraulic from Rexroth of Germany, other is members from Jeou Gang of Taiwan are adopted.
|
Model(PB) |
PB1100T |
PB1400T |
PB1800T |
PB2000T |
PB2500T |
|
Plunger diameter(mm) |
Φ 750 |
Φ 870 |
Φ 1000 |
Φ 1050 |
Φ 1180 |
|
Side-cylinder diameter(mm) |
Φ 150× 200 |
Φ 160× 200 |
Φ 180× 250 |
Φ 180× 250 |
Φ 180× 250 |
|
container diameter(mm) |
Φ 90xΦ 160x4 |
Φ 120xΦ 180x4 |
Φ 160xΦ 220x4 |
Φ 160xΦ 220x4 |
Φ 180xΦ 250x4 |
|
Main cylnder stroke(mm) |
1450 |
1530 |
1650 |
1800 |
2100 |
|
Billet size(D*L) |
Φ 128× 600 |
Φ 155× 650 |
Φ 178× 750 |
Φ 200× 780 |
Φ 220× 900 |
|
Die size(mm) |
Φ 250× 260 |
Φ 260× 260 |
Φ 360× 350 |
Φ 300× 295 |
Φ 300× 295 |
|
Main fame central height(mm) |
1085 |
1250 |
1350 |
1630 |
2010 |
|
Outer diamension(mm) |
7000× 2200× 3850 |
8500× 3200× 4000 |
9000× 2500× 4200 |
9300× 2500× 4800 |
9500× 2500× 5000 |
|
main motor power |
55KW× 2 |
55KW× 3 |
90KW× 3 |
90KW× 3 |
180KW× 2 |
|
Total power(KW) |
140 |
190 |
300 |
320 |
420 |
|
Weight(T) |
49 |
70 |
105 |
130 |
250 |
|
Discharge speed |
0-60M/Second |
|
system pressure |
21Mpa |
|
Power supply |
380V 50HZ |
|
hydraulic pressure oil |
#68 Anti-wearing hydraulic oil |
Foshan City Nanhai Chengqiang Machinery Manufacturing Co., Ltd. is a professional manufacturer and an industrial group specialized in aluminum production machinery and aluminum products, such as aluminum extrusion press, extrusion handling table system, powder coating plant system, anodizing plant system, melting and casting workshop system, aluminum profiles for constructions and industrial sections etc.
We are located in Guangdong Foshan, famous city and dynamic area of Chinese economic, trade, and manufacture. With abundant experiences in the aluminum production technology and excellent R&D for the machines manufacturing and installation, we can provide the "one-stop-services" for international commerce and helping the customer to build up the plant with most effective and reliable production equipment, but with less cost and more care on the quality and after-sale services on training and commission, even arrange the skillful technicians for production and management.
Cooperating with customers from Southeast Asia, South America, Middle East, African countries and India, we provide the machines of high-quality, competitive price and excellent after-sales services which brings the high praises from customers based on good quality on the machines & the production and the real care-from-heart services.
We are expecting to establish the long-term and friendly business with clients from all over the world and reach the win-win partnership. Let what we do to be your PROFIT BRIDGE.
