| Prod Model: |
SEAC-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Useful: |
Take Away |
| Cavities: |
Three |
| Speed: |
40-75times |
| Alloy: |
8011,3003,8006 |
| Forging Forming Method: |
Mold Forging |
Product Description

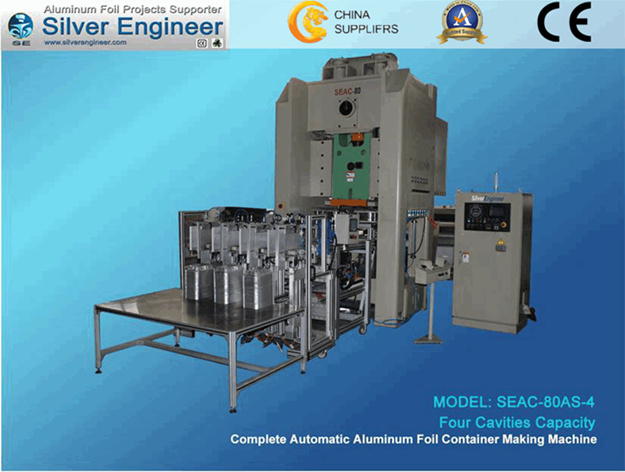

Complete Automatic Aluminium Foil Container Making Machine
Model: SEAC-80/110AS (Four Cavities or Five Cavities Capacity !)
Units: Automatic Feeder+Automatic 80Ton H Type Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other old model machines.
Specification:
1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm;
Alloy: 8011,8006,3003,3005; Temper O to H24;
2.Good Japan's Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 1200mm;
4.Max. diameter of Aluminum foil: 800mm;
5.Core diameter of Aluminum foil: 76mm(152mm as Optional );
6.Working speed: 40-68 times/min;
7.Total Power: 14kw+2kw+2.5kw+3kw;
8.Compressed air needed: 0.5- 0.8 Mpa, 0.4m3/min;
9.Install dimension: 6400*2600*3600mm;
Technical Data:
Max.mould size: 1400*1000*480mm;
Slide block stroke:150-260mm ; (Offer Stroke adjustable system as option!)
Automatic mould adjust unit: 0.5kw;
Work plate dimension: 1500*1000mm;
Mould handle hole dimension: 80*80mm(Diameter*Depth);
Power: 4P, 380/220V, 50/60Hz;
Net weight: 13,000kg.
SEAC-80AS is the four cavities or five cavities capacity model production line for AFC.
Complete automatic level upgrade your factory capacity, lead your company be higher level competition and situation.
1. Easy operation: With one PLC control system. All information requried is set accordingly to convenient operation.
2. Save production cost: Only One person is needed to operate whole production line.
3. Tidy and environmental: Oil systems is inside machine body, which is different with many companys. It is new technology developped newly.
4. Application Fields: All aluminium foil products.
5. All specs are accept.
We will make the production line accoring to customer requirement Specialized in making kinds of aluminium foil products mould, long operating life, good performance and new design. Specialized in making kinds of aluminium foil products mould, long operating life, good performance and new design. Cutting, forming, plugging and rolling with one-step by one punching.
Can be designed with one cacity or more cavities accoordint to customers requirement. Suitable for various food container, such as smoothwall container, multi-cavity container, one compartment container and multi-compartment container, and food container with various edges (G style, L style, IVC style or folding style).
Keywords: Aluminum foil container machine, aluminum foil container tool, aluminum foil rewinder, aluminum foil machine, aluminum foil container making machine, aluminum foil wrap, aluminum foil container mould, aluminium foil container machine, aluminium foil container making machine, aluminium foil container production line, aluminium foil container mould.
