Product Description

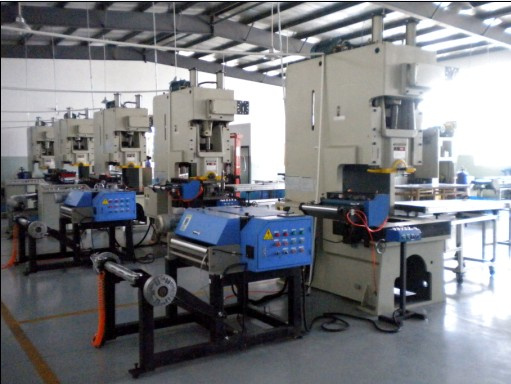

Product Name: AL-foil container automatic production line
Product Model: HY-ALCH-45A
COMPLETE PRODUCTION LINE HY-ALCH-45A
The line include the following equipments:
Uncoiler Machine
Press
Mould
Automatic Container Stacker
Scrap collector
Waster press
Environmental requirements.
Power supply: AC 3 phase 5wires(with neutral and earth)
Three phase voltage: 380V
Single phase voltage: 220V
Frequency range: 50/60Hz
Humidity: Below 80%
Pneumatic supply: Consumption≥ M3/min, pressure0.6~0.8MPa.
Designation Of uncoiler machine
1. Max roll diameter 750 MM
2. Max width of the material 500 MM
3. Feeding speed 1-50 M/MIN
4. Feeding length 30-999 MM
5. Feeding accuracy plus or minus 0.6 MM
6. Net weight 800 KG
7. Dimension 1650*1255*1100MM (L*W*H).
* We have 2 type feeding machine: Common feeding machine and embossing feeding machine.
Designation pressure
1. Stroke time 20-90TIME/MIN
2. Stroke height 200MM
3. Max die installation height 440MM
4. Height adjustment for die 80MM
5. Distance from the center of slice to the body 340MM
6. Dimension of Slide block bottom, Size of handle hole 320*145MM
7. Work plate dimension 660*1000MM
8. Body work plate hole dimension 300*300MM
9. Work plate thickness 50MM
10. Slice underside dimension 220*400MM
11. Die handle hole dimension 50*60MM
12. Dimension 1650*1350*2800MM (L*W*H)
13. Net weight 5000KG.
*The precise press machine adopts steel plate welding body, dry friction clutch, overload protector, features high preciseness, reliable operating.
Automatic container stacker
1. Collector Belt Width 550mm
2. Collector Belt Height 920 plus or minus 25mm(Adjustable height system on request)
3. Min. Container dimensions 100*100mm(smaller on request)
4. Max. Container dimensions
500*300mm(1 ways)
215*300mm(2ways).
5. Max. Height of the stacker 420mm(depend on the container shape and size)
6. Lifting system By step motor and linear guide
7. Photocell with Electronic counting device
8. Container counter automatically stops press at top of
9. Stroke in emergency situations
10. Control Panel Touch screen
11. Stacking SystemPhotoelectricity Control the high of stacker, electric brake system
12. Installed power 3KW
13. Air consumption(2ways) 0.2m3/Min
14. Net. Weight 1000kg
15. Stacker Dimensions3300*1010*1290mm( plus or minus 25mm)(L*W*H).
* we can develop according to a special container stacking machine
Mould
Mould/die is made of high quality die steel, with the function of edge trimming and curling.
*we can make two or three cavity about one mould if you need.
Scrap collector
1. Speed 1450rpm
2. High-lift 1000mm.
3. Install poewer 5KW.
