| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Certificate: |
ISO9001 SGS CE |
| Origine: |
Qingdao |
| Brand: |
Chifine |
| Service: |
OEM and ODM |
| Delivery Time: |
30 Days After Receiving The Payment |
| Machinig: |
CNC Turning Milling Drilling Lathe |
| Material: |
Aluminum Alloy |
| Surface Preparation: |
Oxygenation |

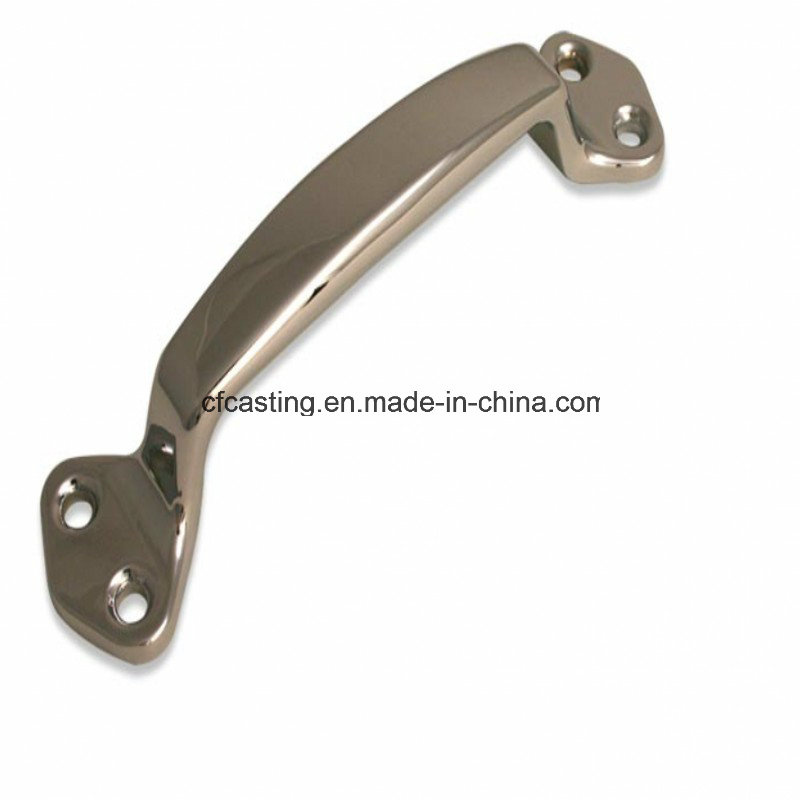

Product Description
Manufacture Process
1) Process: Die Casting
2)Surface Finish: Chrome plating, sandblasting, painting, anodizing, powder coating, electrophoresis
3) Surface Finish: Chrome plating, sandblasting, painting, anodizing, powder coating, electrophoresis
Product Character:
-Customized Tool Design Drawings are Available;
-Molds are carefully machined to the closest tolerance using the latest equipment;
-The prototype should be created if the customer require;
-We offer secondary processing such as oil spraying, screen printing, assembly ect.
-Traceability is maintained from all inspection gages
-Mold repair and maintenance are also supported internally.
1.Material | Aluminum |
| 2.Process | sand casting, gravity casting, low-pressure die casting, high-pressure die casting. |
| 3.Certificate | ISO9001 |
| 4.Standard | GB1173 |
| 5.Specification drawings | Pro/E, Auto CAD, Solidwork, CAXA UG, CAD/CAM/CAE. |
| 6.Precision machining | CNC, milling machine, drilling machine, numerical lathe, all types of lathe. |
| 7.Surface finish process | polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, mirror polishing. |
| 8.Service | OEM service available. |
| 9.Product | all kinds of aluminum casting(unit weight ≥0.1kg) |
| 10.Advantage | Good quality and strict delivery time. |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
