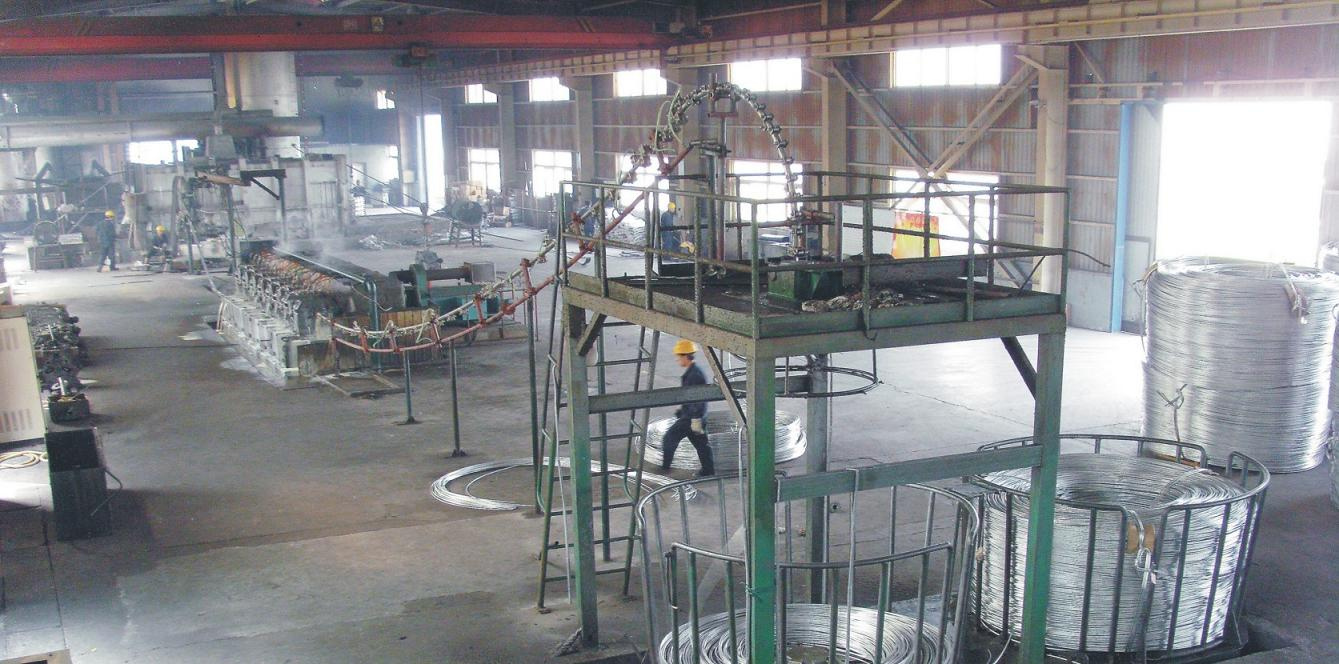

Aluminum Rod Continuous Casting and Rolling Line (UL+Z-1500+255/15)

Name: Aluminum Rod Continuous Casting and Rolling Line (UL+Z-1500+255/15)
Brand: china-castingforging.com
SKU: 664720125
Availability: InStock
Rating: 4.8 (72 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1 /Piece
Pay Type:	L/C,T/T

Contact Supplier

Deyang Bochuang Electrotechnical Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	UL+Z-1500+255/15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Application and composition

1. By means of continuous casting & rolling, this line works to produce conductive aluminum rod in a diameter Φ 9.5mm, Φ 12mm or Φ 15mm.

2. It is composed of a shaft melting furnace (5 t/h), holding furnace (2× 8t), two-wheel casting machine, single-track oil hydraulic shears, rolling mill with 15 stands, drive unit, Φ 1800mm coiler and electric control system.

Casting machine		Coiler
Diameter of casting wheel	Φ 1500mm	Max.coil bundle weight	1.5~2t
Cross-sectional area of cast bar	2420m m 2	Max.coiling diameter	Φ 1800mm
Delivery speed	7.8~ 15.6m /min	Power of motor for coiler	2.2kW(AC)
Rotation speed of casting wheel	1.66~3.3r/min	Moving speed of trolley	0.75m /s
Power of motor	3kW(DC)	Power of motor for trolley moving	2.2kW
Pressure of cooling water	0.35~0.5MPa	Overall dimension	32.05 ×7.2×4.2
Consumption of cooling water	100t/h	Total weight	65t
Y-typed rolling mill		Single-track oil hydraulic shears
Diameter of outlet	Φ 9.5, 12, 15mm	Max,shearing force	12000kgf
Number of stand	15, 13, 11	Max.shearing stroke	65mm
Nominal diameter of roller	255mm	Electric hoist type	TV-0.50
Transmission ratio between two neighboring stands	1 : 1.25	Power of motor	4kW
Final rolling speed	6.2m /s	Drive unit
Production capacity	2.6~4.2t/h	Drive speed	6.8m /s
Central height of rolling	902.5mm	Power of drive	7.5kW(AC)
Power of main motor	250kW(DC)	Power of drive	7.5kW(AC)
