| Prod Model: |
UL+Z-1500+255/14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Used to Produce Ec Grade Al. Rod with Dia. 9.5mm |
Product Description

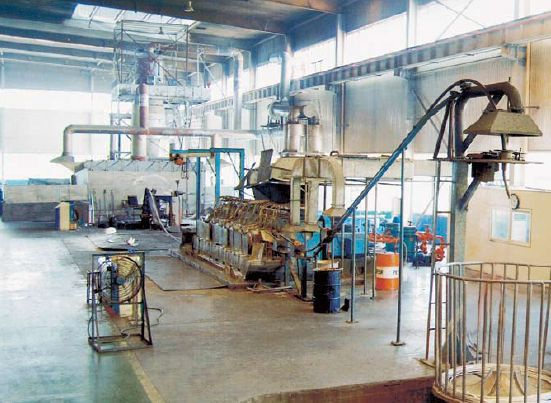

This production line is used for Aluminium & Aluminium alloy conductor(magaluma, Almasilium etc. ), by adopting continuous casting and rolling technology, with output rod of diameter 9.5mm. It consists of of melting furnace, holding furnace, casting machine, oil shearer, rolling mill and coiling system.
| Aluminium Alloy Rod Continuous Casting and Rolling Line |
| Type | UL+Z-1500+255/14 |
| Melting furnace | Shaft furnace | 5t/h |
| Melting rate |
| Holding furnace | Hydraulic tilting-type | 2×9t |
| Capacity (ton) |
| Filter & degassing device | Treatment gas | Nitrogen or Argon |
| Treatment capacity (kg/min) | 30~100 |
| Degassing efficiency (%) | 50~70 |
| Container capacity (kg) | 440 |
| Casting machine | Casting ring dia. (mm) | 1500 |
| Casting bar speed (m/min) | 8~12 |
| Casting bar section (mm²) | 2300 |
| Water consumption (m³/h) | 100 |
| Motor for casting ring (kw) | 4 |
| Accessory shearer | Max. shearing force (kg) | 14000 |
| Max. shearing stroke (mm) | 85 |
| Straightening & edge shaver | No. of straightening roller | 5 |
| Pulling motor (kw) | 3 |
| Induction heater | Output frequency (Hz) | 350 |
| Output power (kw) | 300 |
| Water consumption (m³/h) | 15 |
| Rolling mill | Outlet rod dia. (mm) | 9.5 |
| No. of rolling stand (m/s) | 14 |
| Rollers' dia. (mm) | 255 |
| Finished rolling speed (m/s) | 4-6 |
| Production capacity (ton/hour) | 2.6~4.0 |
Center height (mm)
Main motor (kw)
Emulsion consumption (m³/h) | 1052.5
355(DC)
60 |
| Rod quenching device | Rod quenching tunnel | 8 |
| Outlet rod temperature (ºC) | ≤100 |
| Water consumption (m³/h) | 60 |
| Rod orbital coiler | Pulling speed (m/s) | 6.94 |
| Pulling motor (kw) | 7.5 |
| Coil's size (mm) | Φ1500×2300 |
| Laying head motor (kw) | 4 |
| Coils' weight (kg) | 1500~1800 |
