| Prod Model: |
Q35Y-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Q35y-25 |
| Punching Maximum Capacity: |
35X25 |
| Forging Forming Method: |
Mold Forging |
Product Description

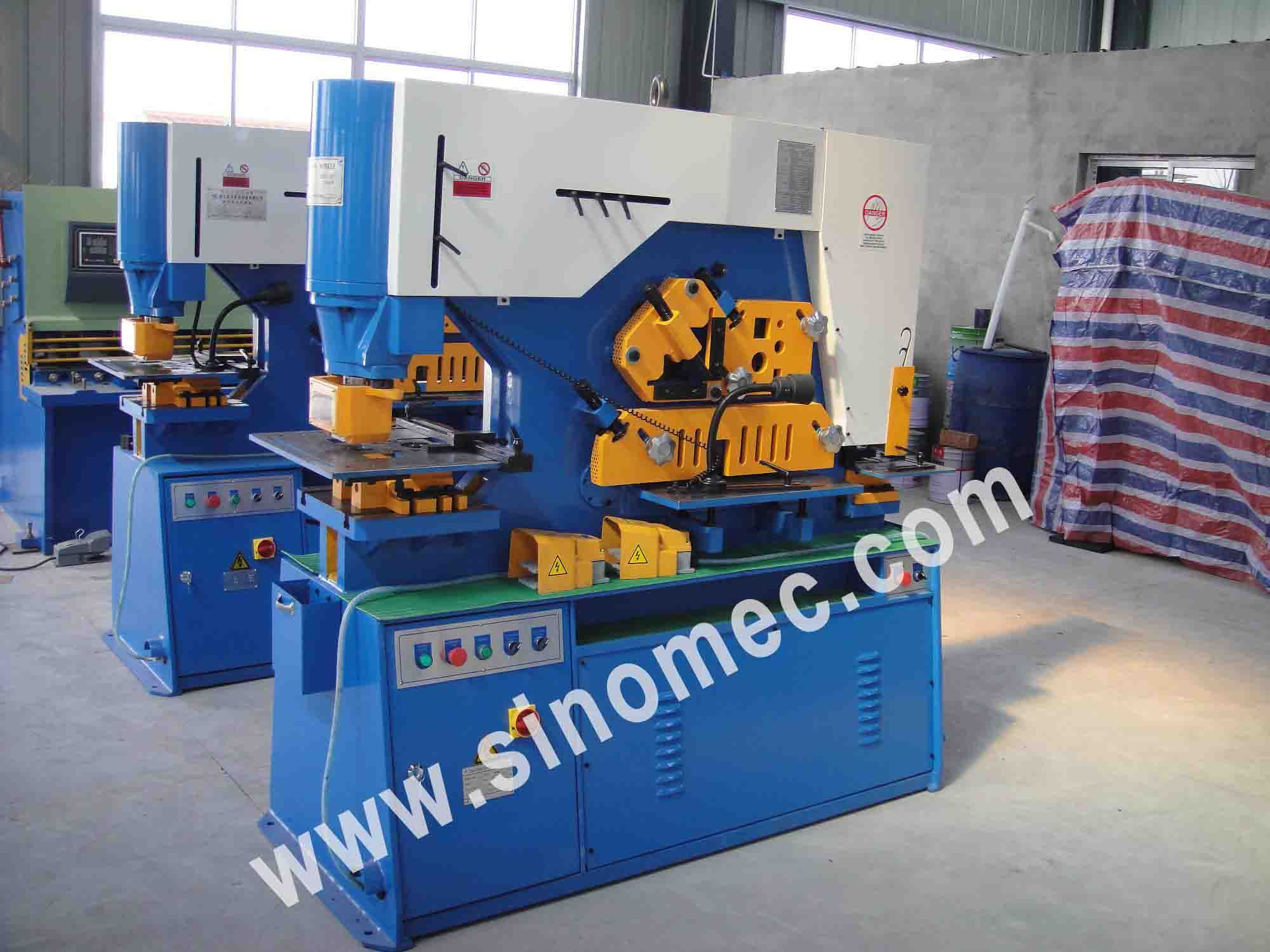

Q35Y-25 metal ironworker machine
Hydraulic Ironworker is widely used in steel structure, high voltage tower, telecommunication tower, large rigid frame bridge, military and air craft and other metal fabricating industries. It also can be used in vocational school for teaching purpose.
The Ironworker featuring multiple functions, including: Punching all kinds of holes (round hole, square hole, oblong hole), louver punching, profile steel shearing (channel shearing, I-beam shearing, round/square bar shearing, T-bar shearing, steel plate shearing, angle steel shearing), notching, press brake, angle bending. We can design any special tools according to your metal fabricating requirements.
Free standing on suitable floor, the ironworker machines just require electrical connection to be ready for work. For two operator utilization, the hydraulic system is activated by two shielded for switch control, one operating the punching end cylinder, the other operating shearing end cylinder, the shear cylinder provides the power to three shearing stations and notching station.
The universal machines are supplied with standard tools include support table at punching, shearing and notching stations:
1. One set of round hole die
2. One set of steel plate shearing blade
3. One set of angle shearing blade
4. One set of channel shearing blade
5. One set of notching blade
The above moulds will be installed in the machine, safety guards are also fitted as standard on all working stations. For other dies and blades, customers need to order and pay additionally.
After-Sale Service
1. Two year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the two year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
| Specification | Q35Y-25 |
| Punching maximum capacity | 35x25 |
| Stroke Ram length | 80 |
| Deep Throat Standard | 400(optional 600) |
| Punching Largest hole (Optional) | 160 |
| Working height | 1142 |
| Shearing |
|
| Flat Plate Shearing Maximum | 330x25 |
| Flat Plate Shearing Maximum | 600x16 |
| Blade length | 620 |
| Angle Flange Trim Maximum 45° | 100x14 |
| Working Height | 851 |
| Angle Cutting Station |
|
| 90° Miter (True Interior /Exterior ) | 160x15 |
| 45° Miter (True Interior /Exterior ) | 80x10 |
| Working Height | 1220 |
| Section Cutting Station |
|
| Round Bars/ Square Bars Maximum Diameter | 60/55 |
| Channel /I Beams ( Optional ) | 200x75 |
| Tee ( Optional ) | 90x12 |
Sinomec Machine Tool manufacture Co., Ltd is manufacturer of fabricating machinery in China; Our Company covers an area of 40, 000m² With building area 31, 600m² . Our employees can reach up to 300, including 30 intermediate and senior technician and engineers. We also have professional and technical team supply novelty design and advanced production equipment enables us to turn out high quality machines.
The Company has passed the certificate of ISO9001-2000 international quality certificate, and the qualification certificate. The machines also get the CE certificate which enables it to export products to European market. We also honored with "enterprise of hi-tech". The products have won the titles of "hi-tech products", "products meeting user's satisfaction". Moreover, we have altogether four national invention patents as well as utility patents.
Our machines have been exported to Europe, America, Southeast Asia, and Middle East with high quality. We commit ourselves to cooperating with importers and exporters all over the world. Our technicians will assure you of appropriate equipment with reasonable prices. With a professional service team, they have researched technology and engine repair equipment of ship, automobile, tractor, generator for many years. We can provide best pre-sale and after-sale services to customers in the first time. Besides, we always welcome relative business partners and companies to be our distributors in your market to reach our mutual benefits.
