Product Description

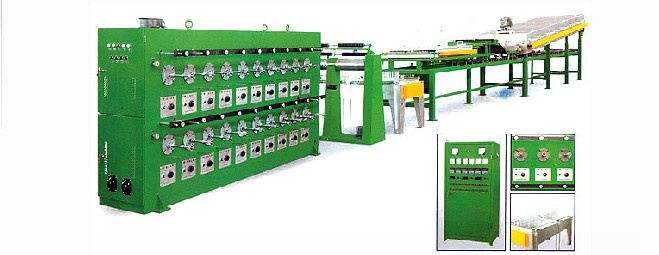

Annealing & Tinning machine technology parameter
Machine type 40H 40H
No. Of wire 40 40
Length of annealing tank 4.5m 6m
Wire dia. φ 0.10-φ 0.32mm φ 0.10-0.60mm
Pay-off stand By tension wire By tension wire
Max. Line speed 300m/min
Tin-coating type Dual furnace by heater
Pay-off bobbin size φ 300mm or according to customers requirements
Spooler dia. PT5-PT25 or according to customers requirements
Take-up type Single spooler drive by torque motor
Annealer Continuous annealing by heater
Total power consumption 50KW 65KW
Machine dimension 20000× 2000× 1900 21000× 2200× 1900
