| Prod Model: |
orifice flange |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
15mm-6000mm |
| Process: |
Forged |
| Pressure: |
150#-2500# |
| RF Face: |
Stock Finished |
| Standard: |
GOST |
| Type: |
Welding Flange |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
Product Description

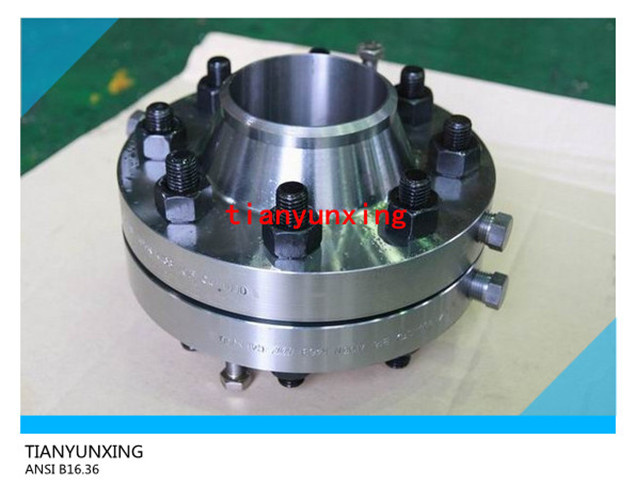

Forging ANSI Orifice Flange:
1. Size: 15mm-6000mm
2. Type: Orifice flange
3. Standard: ANSI
4. Material: A105, A350LF2, A694F42, A694F52, A694F60, A694F65, A694F70 and so on
5. Class: 150#-2500#
6. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on
7. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
| Materials | Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH and so on |
| P250GH, P280GHM 16MN, 20MN ,20# |
| Alloy Steel: A182 F11, A182F22, A182F12, A182 F5, A182F91, A182 F9 and so on |
| Types | Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed |
| Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange |
| Blind Flange/Blank flange, Lap Joint Flange /LJ Flange |
| Socket Weld Flange/SW Flange Threaded Flange/Screwed Flange |
| Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring |
| Custom Flange/Special Flange Hot/Cold/Electro Gavanized Flange |
| Standards | ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES |
| JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504 |
| BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123 |
| GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES |
| Pressure &Ratings | 150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5 |
| PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI |
| PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504 |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80 |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80 |
| 600kPa, 1000.1600.2500.4000.-SANS 1123 |
| 5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503 |
| TABLE D, TABLE E ,TABLE F-BS 10, AS2129 |
| CLASS D, CLASS E, CALSS F, AWWA C207 |
| Surface Treatment | Rust Prevention , Black Paint Coating or Phosphating Treatment with Black Color |
| Varnish Paint Coating, Varnish Oil Coating, |
| Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20~30μm) |
| Hot Dip Galvanizing Coating (Coating Thickness 200μm around) |
| Technical | Forging |
| Application | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry |
| and general pipes connecting projects etc. |
| Inspection | Quality Control System-Well Equipments and Machinery-Well Workers and Engineers |
| Packing | Wooden Pallets or Wooden Cases or As Customers' Requirements |
| Payment Terms | L/C Or 30 % Advance By T/T and The balance Will be Paid After the copy of B/L |
| Delivery Time | 30 Days \after the Advance or the L/C |
| After-Sales Service | Orders and Products Tracking System |
We are Tianyunxing Imp. & Exp. Co., Ltd, which is approved by the Foreign Economic Trade Ministry of the People' S Republic of China, handling the business of manufacture and export steel pipe fittings and industrial valves. Our boss invests money to two factories, which manufacture pipe fittings, the other manufacture forged flanges. Pipe fittings are according to ANSI/ASTM, JIS, DIN, API, GOST and non-standard. The sizes are 1/2" up to 24" for seamless, 26" up to 110" for welded. 1/2" up to 6000mm for flanges and valves as per DIN, ANSI, AS, BS, JIS and we also can produce according to your drawings, 150lbs -2500lbs.
Our products have been widely used in contruction, oil field, water treatment, metallurgy, pipe lines, chemical industry and so on.
We always export our products to Europe, Russia, Vietnam, Middel east, Africa, USA, Korea, Japan, Singapore, Thailand and so on.
Looking forward to cooperating with you, and welcome to visit our factory.
You are assured you will be very happy to work with us, we wont let you down!
