| Prod Model: |
Weld Neck |
| Markets: |
Africa,Western Europe |
| Material: |
Stainless Steel |
| Manufacturing Way: |
Forging |
| Standard: |
ANSI |
| Type: |
Welding Flange |
Product Description

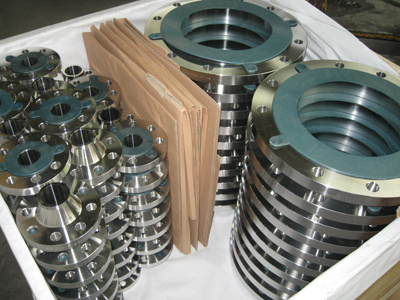

Forged Steel Flanges certified by European Directive 97/23/EC (EN 764-5, section 2, and AD 2000-Merkblatt W 0)
Our Factory is under European Pressure Equipment Directive PED 97/23/EU and AD 2000 Merkblatt W0 checked by the TÜV and certified.
Materials, Grades (stainless steel) Available:
1) EN 10222-5(DIN17440) 1.4301, 1.4306(1.4307), 1.4401, 1.4404 and 1.4541, 1.4571etc.
2) ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM SA/A 182 F316Ti, ASTM A182 F321 etc.
3) SUS F304, SUS F304L, SUS F316, SUS F316L, SUS F321 etc
Mainly Flange Standards Available:
1)ANSI B16.5 (150LBS-2500LBS) Blind/ Slip-on/Welding Neck (SCH 5S-SCH XXS) /Socket weld/ Threaded/ Lap Joint Flange
2) EN 1092-1 Flanges TYPE 01, 02, 05 and 11 Flanges
3)DIN 2527 (PN6-PN100), DIN 2533, DIN 2573 PN 6, DIN 2576 PN10, DIN 2631 PN6, DIN 2632 PN10, DIN 2633 PN16, DIN 2634 PN25, DIN 2635 PN40, DIN 2636 PN64, DIN 2637 PN100, DIN 2638 PN 160 Flanges, DIN 2641 PN 6, DIN 2642 PN 10 Flanges.
4) JIS 5K, 10K, 16K, 20K, 30K (PL, SO, BL, TH, SW), JIS 30K Weld Neck Flange
5) BS 10 Table D/E/F/H Flange, BS 4504 Flanges, SABS 1123 Flanges
6) AS2129 Table D/E/F/H Flanges
DN (Nominal Diameter): 10A -1500A (3/8"-60")
Sealing Surface: FF, RF, LJ, TG, FM, and R. T. J.
Package: Plywood Case, Exporting packing and suitable for sea freight.
Jiangyin Dongsheng Flange Co., Ltd. is specializing in manufacturing different kinds of flanges, such as welding neck flanges, plate flanges, threaded flanges, slip-on flanges, socket welding flanges, lap joint flanges, blind flanges and special flanges.
Our company is 9 kilometers away from Zhangjiagang Port and Jiangyin Port and 150 kilometers away from Shanghai City. Our products can be produced according to ANSI(ASME), DIN, EN1092-1, BS10, BS4504, AS2129, JIS, and GB, as well as customers' special requests.
With our whole set of modern equipment and quality control system, we have already received the ISO9000 Quality System Certification and Germany TUV Certification.
We sincerely welcome customers both at home and abroad to visit our company. If you are interested in our products, please feel free to contact us for negotiating business.
