| Prod Model: |
HBSH 832 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-64" |
| Flange Material: |
Carbon Steel |
| Flange Standard: |
ANSI,Asem, ANSI, DIN, JIS, En |
| Surface Treatment And Protection: |
Anti-Rust Oil |
| Material: |
Carbon Steel |
| Type: |
Threaded Connection Flange |
| Standard: |
GOST |
| Manufacturing Way: |
Casting |
Product Description
1. The high pressure flange is forged from high strength alloy steel with international state of the art technology. Strict heat treatment ensures uniform metallographic structure and bearing capacity. It is widely used in the petroleum and chemical industry, boilers and pressure vessels, ships and other sectors for high pressure connection.
2. Applicable standard: API Spec 6A.

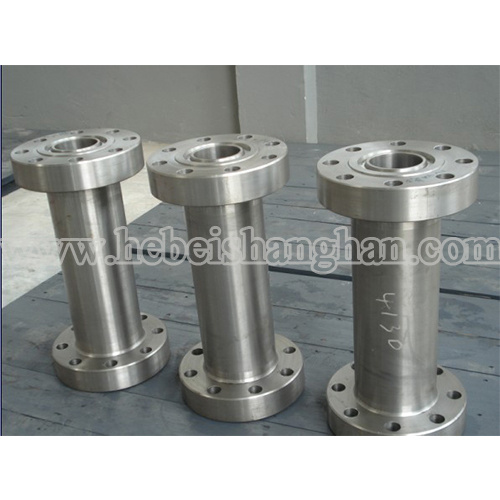

Carbon Steel Counter Flange
The product description:
1.Forging and machining flanges.
2.Machining flanges.
3.Cast Iron flanges.
4.The Specifications of the flanges:1/2-40"
5. Treatment: solution treatment
The certificate of the flanges:
Because we had a lot of the shipyard customers, so we can provide the classification society certificate for some of our customers. We can provide the BV GL DNV LR NK ABS.
Our promise:
1.The delivery time and the package can be controled according to the customers' requirement completely.
2.we will produce the products seriously according to the drawings, and make sure all the products is suitable for the customers.
3.We will communicate with the customers all the time about the products, we will send the pictures to the customers, so that they can know the Processing process.
We cordially look forward to serving you with our best goods and service!
Forging Material:Carbon Steel, Alloy steel,Stainless steel etc
Standard:JIS KS GB ANSI JPI DIN etc
| ITEM | STANDARD |
STNDARD CODE |
PRESSURE RATE |
TYPE | SIZE |
| 1 | American standard | ANSI B16.5 | Class 150,300,600,900,1500,2500 | WN, SW,SO,BL, TH,LWN | 1/2"-24" |
|
ANSI B16.36 | Class 150,300,600,900,1500,2500 | WN, SO, TH | 1/2"-24" |
| AWWA | Class B D E F | RING(HUB) flange | 3"-144" |
| ASEM B16.47 | Class 150,300,600,900 | WN, BL | 26"-60" |
| 2 | British standard | BS4504 | PN6,10,16,25,40 |
WN,SO,PL,BL |
DN10-DN2000 |
3 |
European standard | EN1092 | PN2,5,6,25,40,100,160,250,320,400 | WN,SO,PL,BL | DN10-DN4000 |
| 4 | Japanese standard | JIS B2210 | 5K, 10K, 16K, 30K | SOP(PL,BL), SOH, (SO A,B,C), WN | 10A-1500A |
| 5 | Italy |
UNI 6091-6099
UNI 2280-2286
UNI 2253-2257 |
PN6,25,40,100,160,250,320,400 | BL,WN,PL,SO | DN15-500 |
| 6 | Germany | DIN | PN2,5,6,10,16,25,40,64,100,160 | SO,BL,PL,WN,LOOSE,TH | DN10-4000 |
Material: Carbon steel: ASTM A105, A350 LF2, A694 etc.
Stainless steel: ASTM A182 F304 , 304L,,F304L,F316,316L , AISI 304 , AISI 321etc.
Alloy steel: ASTM A182 A182 F12,F11,F22,F5,F9,F91etc.
Hebei Shanghan Import&Export Trade Co., Ltd is one of the Chinese promising companies. It is a young company whose business operations cover a broad spectrum of international trade activities and equipment manufacturing and supply. Our factory built in 2004, it is located in the southeast of Hengshui.
Hebei Shanghan Import&Export Trade Co., Ltd serves as China's largest supplier of camping house and petroleum equipment, holding a dominant position in domestic petroleum equipment accessories. At the same time, Hebei Shanghan Import&Export Trade Co., Ltd is also a major supplier of refined oil products and petrochemicals. As one of the largest service suppliers in the global petroleum and petrochemical industries, Hebei Shanghan Import&Export Trade Co., Ltd can also provide operational services and technical support in such areas as geophysical prospecting, well drilling, logging, well testing, downhole operations, oilfield surface facilities construction, pipeline construction, refining and petrochemical projects, and manufacturing and supply of petroleum equipment.
By the end of 2012, there were 20 overseas exploration and production projects in 12 countries or areas such as Saudi Arabia, American, England, Kuwait, Libya, Iraq, Kazakhstan, Turkmenistan, Mexico, Russia, Venezuela, and Iran etc.
