| Price: | US $ 6-8kg |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: | flange |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 1/2"-48" |
| Wall Thickness: | Sch5s-Sch160. |
| Standard: | ANSI |
| Type: | Welding Flange |
| Material: | Stainless Steel |
| Manufacturing Way: | Forging |

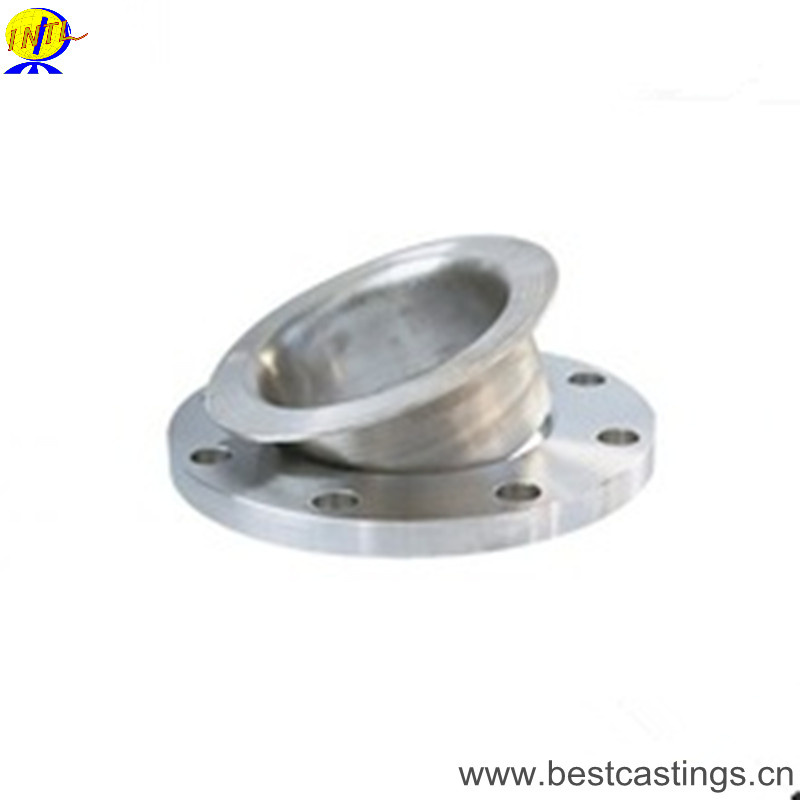

1.Name: | Loose Flange |
2.Type | Loose Flange |
3.Size: | 1/2"-48" |
| 4. Standard: | ASME B16.9,MSS SP-43,DIN2605,JIS B2313, GB/T12459,GB/T13401,SH3408. SH3409,HG/T21635,HG/T21631. |
5. Wall thickness | SCH5S-SCH160. |
6. Material: | stainless steel(1.4539,1.4401,1.4404), nickel copper, carbon steel, low alloy steel,alloy |
Nom. Pipe Size (inches) | O | Q | R | X | No. and** Dia. of Bolt Holes | Bolt Circle Dia | YY | H | J | Y | B | R | YY | BB | Z |
1/2 | 3.50 | .44 | 1.38 | 1.19 | 4-0.62 | 2.38 | 1.88 | .84 | .62 | .62 | .88 | .12 | .62 | .90 | .38 |
3/4 | 3.88 | .50 | 1.69 | 1.50 | 4-0.62 | 2.75 | 2.06 | 1.05 | .82 | .62 | 1.09 | .12 | .62 | 1.11 | .44 |
1 | 4.25 | .56 | 2.00 | 1.94 | 4-0.62 | 3.12 | 2.19 | 1.32 | 1.05 | .69 | 1.36 | .12 | .69 | 1.38 | .50 |
11/4 | 4.62 | .62 | 2.50 | 2.31 | 4-0.62 | 3.50 | 2.25 | 1.66 | 1.38 | .81 | 1.70 | .19 | .81 | 1.72 | .56 |
11/2 | 5.00 | .68 | 2.88 | 2.56 | 4-0.62 | 3.88 | 2.44 | 1.90 | 1.61 | .88 | 1.95 | .25 | .88 | 1.97 | .62 |
2 | 6.00 | .75 | 3.62 | 3.06 | 4-0.75 | 4.75 | 2.50 | 2.38 | 2.07 | 1.00 | 2.44 | .31 | 1.00 | 2.46 | .69 |
21/2 | 7.00 | .88 | 4.12 | 3.56 | 4-0.75 | 5.50 | 2.75 | 2.88 | 2.47 | 1.12 | 2.94 | .31 | 1.12 | 2.97 | .75 |
3 | 7.50 | .94 | 5.00 | 4.25 | 4-0.75 | 6.00 | 2.75 | 3.50 | 3.07 | 1.19 | 3.57 | .38 | 1.19 | 3.60 | .81 |
31/2 | 8.50 | .94 | 5.50 | 4.81 | 8-0.75 | 7.00 | 2.81 | 4.00 | 3.55 | 1.25 | 40.70 | .38 | 1.25 | 4.10 | |
4 | 9.00 | .94 | 6.19 | 5.31 | 8-0.75 | 7.50 | 3.00 | 4.50 | 4.03 | 1.31 | 4.57 | .44 | 1.31 | 4.60 | |
5 | 10.00 | .94 | 7.31 | 6.44 | 8-0.88 | 8.50 | 3.50 | 5.56 | 5.05 | 1.44 | 5.66 | .44 | 1.44 | 5.69 | |
6 | 11.00 | 1.00 | 8.50 | 7.56 | 8-0.88 | 9.50 | 3.50 | 6.63 | 6.07 | 1.56 | 6.72 | .50 | 1.56 | 6.75 | |
8 | 13.50 | 1.12 | 10.62 | 9.69 | 8-0.88 | 11.75 | 4.00 | 8.63 | 7.98 | 1.75 | 8.72 | .50 | 1.75 | 8.75 | |
10 | 16.00 | 1.19 | 12.75 | 12.00 | 12-1.00 | 14.25 | 4.00 | 10.75 | 10.02 | 1.94 | 10.88 | .50 | 1.94 | 10.92 | |
12 | 19.00 | 1.25 | 15.00 | 14.38 | 12-1.00 | 17.00 | 4.50 | 12.75 | 12.00 | 2.19 | 12.88 | .50 | 2.19 | 12.92 | |
14 | 21.00 | 1.38 | 16.25 | 15.75 | 12-1.12 | 18.75 | 5.00 | 14.00 | To Be Specified by Purchaser | 2.25 | 14.14 | .50 | 3.12 | 14.18 | |
16 | 23.50 | 1.44 | 18.50 | 18.00 | 16-1.12 | 21.25 | 5.00 | 16.00 | 2.50 | 16.16 | .50 | 3.44 | 16.19 | ||
18 | 25.00 | 1.56 | 21.00 | 19.88 | 16-1.25 | 22.75 | 5.50 | 18.00 | 2.69 | 18.18 | .50 | 3.81 | 18.20 | ||
20 | 27.50 | 1.69 | 23.00 | 22.00 | 20-1.25 | 25.00 | 5.69 | 20.00 | 2.88 | 20.2 | .50 | 4.06 | 20.25 | ||
24 | 32.00 | 1.88 | 27.25 | 26.12 | 20-1.38 | 29.50 | 6.00 | 24.00 | 3.25 | 24.25 | .50 | 4.38 | 24.25 |
