| Prod Model: |
HT Blower XTS-050 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electric Current Type: |
AC |
| Air Volume: |
5508~119491m3/H |
| Package: |
Wooden Package or as Customers' |
| Delivery Detail: |
10-30 Days After Receiv |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Power: |
4~315kw |
| Certification: |
ISO |
| Material: |
Aluminum |
| Flow Direction: |
Centrifugal |
| Pressure: |
Medium Pressure |
| Usage: |
Cement |
Product Description
Quick Details
Type: Centrifugal Fan
Electric Current Type: AC
Blade Material: Cast Iron
Mounting: Free Standing
Place of Origin: Henan, China (Mainland)
Brand Name: HT Blower
Model Number: HT Blower XTS-050
Power: 4~315KW
Voltage: 380~660V, 3~11kV
Air Volume: 5508~119491m3/h
Speed: 730~2550rpm
Certification: CCC, ISO9001
After-sales Service Provided: Engineers available to service machinery overseas Pressure: 402~5358pa
Impeller Material: According to your request
Motor: By your request
Color: By your request
Driving Mode: V-belt drivetrain
Impeller Type: Forward blade
Package: Wooden package or as customers' requirements
Blade material: Cast iron

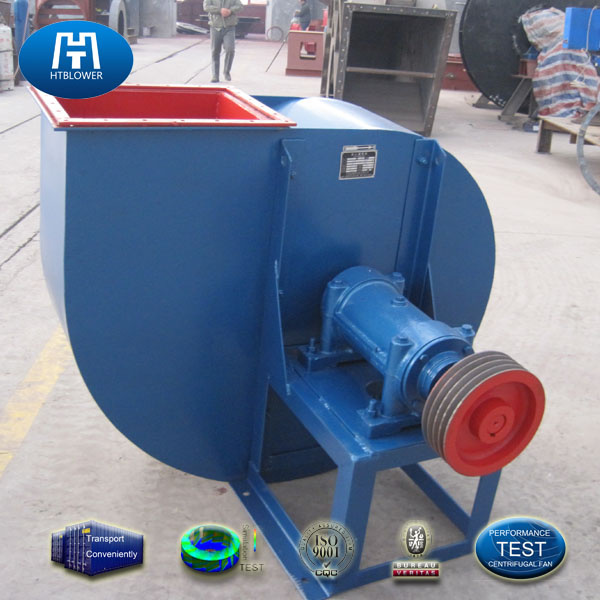

Product: Anti explosion casting aluminum impeller centrifugal cement blower
|
Application |
Temperature |
Normal temperature Air |
|
Hot Air |
|
Air composition |
Clean air |
|
Dusty air |
|
Corrosive gas |
|
Combustible gas |
|
Powder materials |
|
Light particle materials |
|
Performance |
Impeller diameter |
400 |
~ |
3200 |
mm |
|
Speed of mainshaft |
730 |
~ |
2550 |
rpm |
|
Pressure range |
402 |
~ |
5358 |
Pa |
|
3.015 |
~ |
40.185 |
mmHg |
|
41.02040816 |
~ |
546.7346939 |
mmH2O |
|
Flow range |
5508 |
~ |
119491 |
m3/h |
|
9362.570117 |
~ |
2013112.3576 |
CFM |
System
configuration |
Motor |
SIEMENS, ABB, LA^ |
Can assign |
|
Impeller |
Carbon steel |
|
Impeller cone (Air Inlet) |
Carbon steel |
|
Case |
Carbon steel |
|
Air damper |
Carbon steel |
|
Main shaft |
High-strength carbon structural steel |
|
Bearing |
FAG, SKF, ZWZ, C&U^ |
|
Bearing housing |
Cast iron |
|
|
Drivetrain |
Coupling |
Can assign |
|
Foundation bolt |
Carbon steel |
|
Henan HengTong blower Co., Ltd. is an enterprise which integrates scientific research, development, manufacturing and service. Our company has 280 staffs, covering an area of more than 4000 square meters. We have more than 160 types of equipment, especially the 700T four-column press, 0.5T~16T dynamic balancing machine, large vertical lathe, planer, being the key equipments. We can independently complete machining, welding, testing, heat treatment, balance, assembly and all other technological process. We use CAD to design our products and CAPP to design the typical parts. Applying the finite element strength of calculation ensures the advantage, reliability of products. The largest impeller processing capacity is 3500mm, making our company the most powerful enterprise in making fan in Henan province.
Our company has always been committed to the development and manufacture of fans. All the existing products are energy saving and environmental fans. There are more than 30 series and three hundred kinds of specifications, widely used in chemical industry, cement, smelting, steel, gas, environmental protection, 0.5T~410T/h boiler etc. These products are exported to southeast- Asia and other countries in pairs.
Our purpose of enterprise is based on product innovation and technology leading, honesty, mutual benefit, keeping promise being our business's philosophy. As a market-oriented company, with a complete scientific quality management system, using fiery passion and providing high level quality of service constantly, we provide customers with pleasing services and experience.
