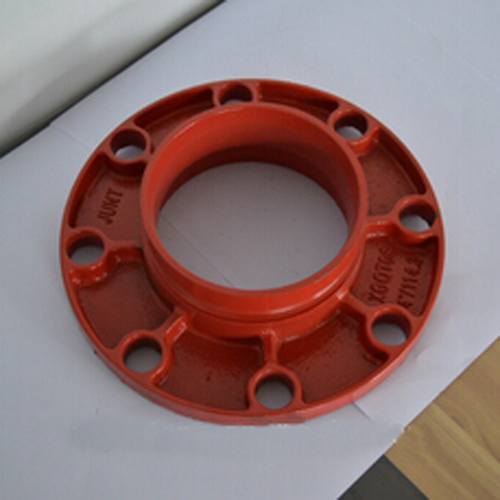

Approved Grooved Pipe Fitting Coupling Flange
| Price: |
US $ 5-10/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
| Prod Model: |
DN114 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Place Of Origin: |
Fujian China (Mainland) |
| Technics: |
Casting |
| Shape: |
Equal |
| Material: |
Carbon Steel |
| Type: |
Welding Flange |
| Standard: |
GB |
| Manufacturing Way: |
Forging |
Product Description
Brief Information
The bolt hole of the flange diameter and position size and 1.6MPa international flange listed the company (GB/9114.9115.9116.9119.9123-88) of uniform size, according to the installation requirements of flange to choose other pressure classes, such as 1.0MPa, 2.5MPa or others, please make a note when ordering.
According to the different use of the environment, surface treatment can choose electrostatic spray, hot dip galvanizing, dipping and dacromet or your requierment.
The company listed weight refers to the casting weight, not including the sealing ring, bolts etc.
Technicial Parameters
| Nominal Diameter(mm) | Pipe Outside(mm) | Rated Pressure (MPa) |
Measurement(mm)
|
Weight (kg) |
| Do | L | n-Φ |
| 50 | 60.3 | 1.6 | 125 | 65 | 4-Φ18 | 2.6 |
| 65 | 76.1 | 145 | 65 | 4-Φ18 | 2.85 |
| 80 | 88.9 | 160 | 65 | 8-Φ18 | 3.15 |
| 100 | 108 | 180 | 65 | 8-Φ18 | 4.46 |
| 1200 | 114.3 | 180 | 70 | 8-Φ18 | 4.53 |
| 125 | 133 | 210 | 70 | 8-Φ18 | 4.75 |
| 125 | 139.7 | 210 | 70 | 8-Φ18 | 5.12 |
| 150 | 159 | 240 | 70 | 8-Φ22 | 6.93 |
| 150 | 165 | 240 | 70 | 8-Φ22 | 5.36 |
| 200 | 219 | 295 | 80 | 12-Φ22 | 11.1 |
| 250 | 273 | 355 | 85 | 12-Φ25 | 18.2 |
| 300 | 323.9 | 410 | 90 | 12-Φ25 | 23.86 |
| 350 | 377 | 470 | 100 | 16-Φ25 | 25.2 |
Quanzhou Yu Lin Jun Fire- fighting Equipment Co., Ltd is located in Baozhou Road, Quanzhou City, Fujian Province. It's a fire- fighting equipment company which integrate research, development, production and sales as a whole. We have all kinds of products, include but not limit to Intelligent Home Device for Fire- Protection, Foam Bladder Tank, Portable Foam Fire Extinguishing Equipment, Foam Generators, Fire Hose Foam Nozzle, Foam Sprinkler, Foam Fire Hydrant, Foam Hydrant Cabinet, Cabinet gas fire extinguisher equipment, Fire Monitor(Foam/ Water monitor), Fire Fighting Water Monitor, Wet Alarm Valve, Deluge Alarm Valve, Preaction Alarm Valve, Water Flow Detector, Water Sprinkler Head, Signal Butterfly Valve, Signal Gate Valve, Outdoor Fire Hydrant, Fire Pump Connector, Fire Hydrant Cabinet, Lined Fire Hose, Fire Reel, Indoor Fire Hydrant, Direct- current Hose Nozzle, Fire Hose Coupler, Fire Extinguisher, Fire Extinguisher Cabinet, Emergency Lantern, Groove accessories and so on. All these products are widely applied in all kinds of industry, like Telecom, airlines, chemical, power and real estate and so on. It can experience the trail of time and market. The perfect product quality and after- sales service has won good reputation and high praise both from domestic and oversea customers.
We take quality as basic principle, seize the market by technical & quality and build credibility by good service and brand. We aim at developing to be a world leading technology in fire- fighting equipment company and offering best service for customers. Wish we win together and create a safe and beautiful future together.
Please feel free to contact us:
Tel: +86 595 22493959
Fax: +86 595 28234119
