| Prod Model: |
SWJY-EC009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Swjy |
| Place Of Origin: |
Hebei, China |
| Filament Diameter: |
11-25 Um |
| Tex Count: |
200-9600 Tex |
| Technique Information: |
Chops, Pultrution, Spray,Wind |
| Glass Type: |
E Glass, C Glass |
| Sizing: |
Silane |
| Color: |
White |
| Bobbin Weight: |
About 17.5 or 22kg/Bobbin |
| Delivery Time: |
7-15 Days |
Product Description

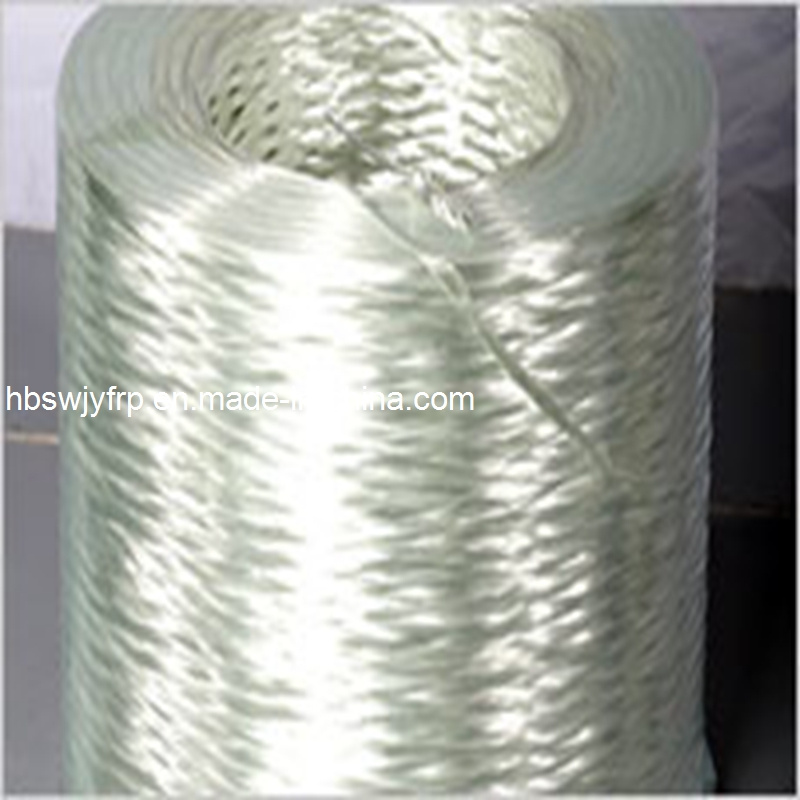

Assembled roving for centrifugal casting SWJY
Introduction
E-Glass Assembled Roving are compatible with polyester, vinyl ester and epoxy resins.
1) E-glass direct rovings:Direct roving for filament winding, Direct roving for pultrusion,
Direct roving for weaving, Direct roving for LFT and etc.
2) E-glass assembled rovings:Assembled for sprayup, Assembled roving for filament winding,
Assembled roving for SMC, Assembled roving for chopping, Assembled roving for centrifugal
casting,Assembled panel roving, Assembled roving for thermoplastics, Assembled roving for
GMT and etc.
Technical data
| Items: | Linear Density, tex | Resin Compatibility | Features |
| 1200-4800 | UP, VE | For general purpose CSM |
| 2400 | UP, VE, | For tissue mats |
| 2400 | UP, VE | Low static, Good dispersion,
General roving for CSM |
| 2400 | UP, VE, EP | For pipes |
| 2400 | UP, VE, EP | For producing stitch mat, low static
Good dispersion and fast wet-out |
| Style | Linear
Density
(Tex) | Filament
Diameter
(um) | Moisture
Content
(%) | Size
Content
(%) | Breaking
Strength
(N|Tex) | Roll
weight | Compatible
resin | Application process |
| EC12-2400 | 2400 | 12 | ≤0.15 | 0.50±0.15 | ≥0.35 | 16|22 | UP|VE | Continuous plates |
| EC12-4800 | 4800 | 12 | ≤0.15 | 0.50±0.15 | ≥0.35 | 16|22 | UP|VE | Continuous plates |
| EC12-2400 | 2400 | 12 | ≤0.10 | 1.05±0.15 | ≥0.35 | 16|22 | UP|VE | Spray up|chopping |
| EC12-4800 | 4800 | 12 | ≤0.10 | 1.05±0.15 | ≥0.35 | 16|22 | UP|VE | Spray up|chopping |
| Note: can be customized |
Product feature
1. Fiber linear density is stable, small deviations for tex.
2. Less electrostatic accumulation, low fuzz.
3. The fiber moderate stiffness, excellent dispensability.
4. Good integrity with the concrete, good alkali resistance.
Application
Used to produce pipes of various diameters, storage tanks and tubes which are widely used in transportation, aerospace, military and electrical markets
Storage
Unless otherwise specified, fiberglass products should be stored in a dry, cool and moistureproof area. Room temperature and humidity should always be maintained at 15°C - 35°C, 35% - 65% respectively.
Best used within 12 months after production date. Fiberglass products should remain in their original packaging until just prior to use.
Package
Each spray up roving roll covering by shrinkage membrane or drawing membrane, then placed into cardboard box or set on pallet.Each pallet can stack 48 or 64 rolls .
each roll weight is 15~18kg.
It is can increasing roll weight according to customer requirements. Pallet stack shall no be higher than 2 layers, cardboard box shall no be higher than 5 layers
Guarantee
