| Prod Model: |
20Mn2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
Product Description

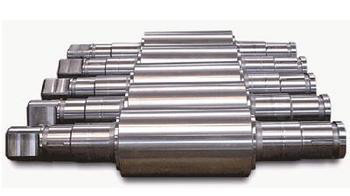

ASTM 20Mn2 Carbon Manganese Forged Steel Cargo Vessel Intermediate Shaft 18m Length
Description:
Forged steel shaft-marine shaft forging: Intermediate shaft/ tail shaft/ propeller shaft/ is widely used for large, middle and small size cargo vessel etc.
The factory has been certified by ABS, DNV, BV, GL, LR, KR, NK and CCS.
The manufacturing equipment is 25~80MN hydraulic press, the forging ratio > 4.5, the technical condition is in accordance with the requirements of ABS, DNV, BV, GL, LR, KR, NK and CCS.
The product can be provided as per your drawing or specified requirements.
Smelting Process: EF+LF + VD
The process as follow: Ingot -heat - forging - Heat treatment (Normalizing+ tempering) - Inspection -rough machining-UT -2nd Heat treatment -finishing machining -Inspection
Applications: Forged steel shaft-marine shaft forging: Intermediate shaft/ tail shaft/ propeller shaft/ is widely used for large, middle and small size cargo vessel etc.
Specifications:
Description
Forged steel shaft-marine shaft forging: Intermediate shaft/ tail shaft/ propeller shaft
Material
Carbon manganese steel (20Mn2, 60Mn, 25Mn, 45# etc. )
Material standard
ASTM or GB/T3077-1999
Dimension
Max. OD of flange: 2500mm
Max. Length: 18000mm
Weight
Max. 100 ton
Smelting Process:
EF+LF + VD
Process
Ingot-heat - forging - Heat treatment (Normalizing+ tempering) - Inspection -rough machining
-UT -2nd Heat treatment -finishing machining -Inspection
UT standard
As per the requirements provided by classification society
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, "in-time" delivery
Tongyu leading products are pipe mould, wind turbine main shaft, heavy forging & casting, ESR ingot, rotor shaft for steam turbine generator, double super critical power plant pipe, ship shafting, NC elevator track planner, and other universal and nonstandard machinery spare parts.
