| Prod Model: |
KM-150421 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Range: |
Dn15 - Dn1500 (1/2" - 60") |
| Pressure Rating: |
150lbs - 2500lbs |
| Standard: |
BSW |
| Material: |
Stainless Steel |
| Manufacturing Way: |
Forging |
| Connection: |
Welding, Thread |
| Sealing Surface: |
RF, FF, Rj, FM Mfm etc. |
Product Description

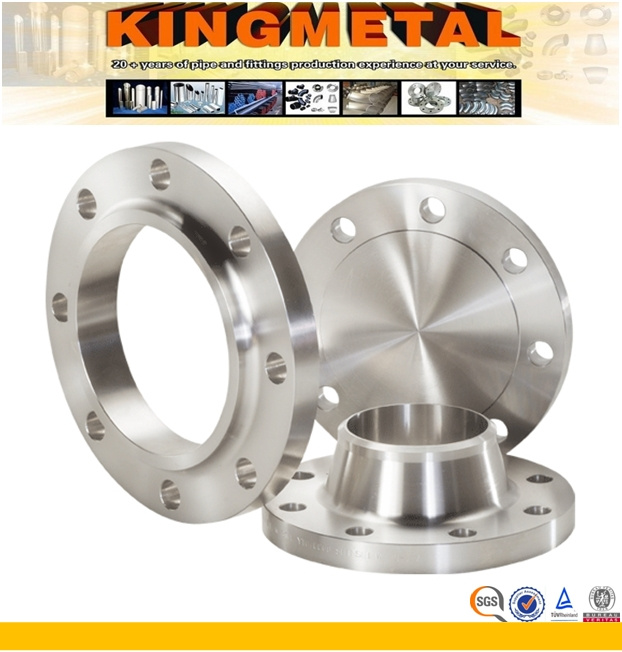

Forged Stainless Steel Flange
Production process: forging
Product type:
Socket welded flange SW, butt welded flange WN, flat welded flange SO, blind flange BL, loose flange LJ, threaded flange TH, orifice flange, hubbed butt welded flange
Size range: DN15 - DN1500 (1/2" - 60")
Manufacturing standard:
American standard: ASME/ASNI B16.5/16.36/16.47A/16.47B,MSS SP44
Japanese standard:JIS B2220-2001
German standard: DIN 2527/2636/2637/2638/2566/2576/2632/2633/2635/2642
European standard: EN 1092-1:2001
Russian standard: GOST 12820-80 etc.
Non-standard customized processing drawings are also acceptable
Pressure rating: 150lbs - 2500lbs
Material:
Stainless steel: ASTM A182-F304, F304L, F304H, F316, F316L, F321, F321H, F347H; 1.4301, 1.4306, 1.4401, 1.4435, 1.4571, 1.4436, 1.4438, 1.4541; 08X18H10(0X18H10), 03X18H11(000X18H11), 03X17H14M2 (000X17H13M2); 08X18H10T(0X18H10T)and so on
Dual phase stainless steel: ASTM A182-F51,F53,F44
Super stainless steel: ASTM A182-F904L,F317,F317L
| Product | Forged Stainless Steel Flange |
| Size Range | DN15 - DN1500 (1/2" - 60") |
| Pressure Rating | 150lbs - 2500lbs |
| Standard | ASTM, BS, JIS, DIN, GOST etc. |
If you have any demand or inquiry, please feel free to contact us.
