| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
| Material: |
ASTM SA105n SA266 / ASTM SA-182 F316L |
| Certification: |
ABS.Dnv.Lr.BV |
Product Description
Material:
The tube sheet material mainly uses the SA26616Mn,Q345R,S355NL.
Useful:
Mainly used for chemical containers, such as tube type heat exchangers, pressure vessels, boilers,
condensers, central air conditioning, evaporators and desalination
Manufacturing process:
Forged after finishing, quenching and tempering, after milling, carburizing, then grinding, after
reaching the requirements of the drawings.
Payment Terms:
30% prepayment by T/T, the balance against the receipt of the correct test certificates or as per
cutstomer's suggestion.
Packaging Details:
Individual plastic wrapping, fumigation-free wooden pallet or steel shelf. All wood to fumigated in
accordance with ISPM 15
Specifications:
It conforms to the standard of ASTM and ASME
The manufacturing equipment is 60 MN hydraulic press, the forging ratio >3,
UT standard is in accordance with standard of EN10228.3:1998 level 3
Delivery lead time :45days
Port of loading:Shanghai
Description
tube sheet
material
SA266
Material
standard
ASTM or ASME
Dimension
OD:2000mm
THK: 300mm
N.W
7.5tons
Smelting Process:
EF+LF+V
Process
Ingot→heat→forging→Heat treatment(Normalizing+tempering)→Inspection→
roughmachining→UT→2ndHeattreatment→finishingmachining→Inspection
UTstandard
EN10228.3:1998 level 3

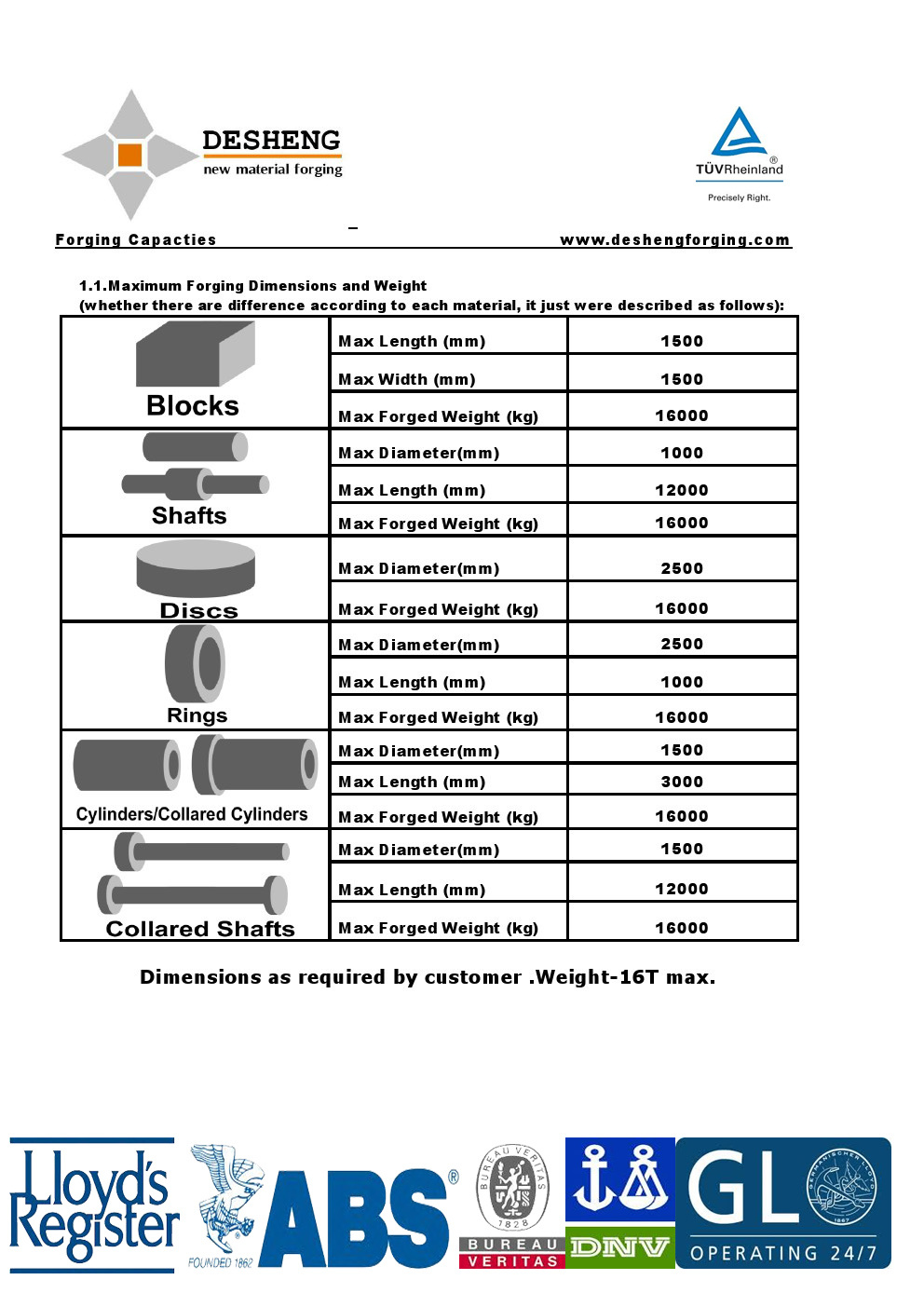

Desheng Forging have two manufacturing bases, one factory is located in Jiangyin City, another factory is located in t Taixing City (Jiangsu Heavy Forging Co., Ltd). The 2 factories are less than an hour by car. It is located in the Yangtze River Delta, adjacent to Shanghai, the geographical position is superior, the amphibious transportation is convenient. The company covers an area of 50 acres, has a staff of 120 people, including engineers and senior technical personnel 20 people. The main production equipment company has 2500 tons of hydraulic press, 10 tons of electro-hydraulic hammer a, 5 tons of electro-hydraulic hammer a, 1 tons of air hammer a vertical, horizontal lathe more than 20, 5 sets of heat treatment furnace, natural gas heating furnace 3, the auxiliary equipment. With an annual output of forgings production capacity of 10000 tons. At the same time with all kinds of quality testing equipment, electro-hydraulic servo testing machine, the German chemical element analyzer, spectrum analyzer, room temperature / low temperature impact test machine, ultrasonic flaw detector, hardness, metallographic microscope etc...Two factory has established a complete quality management system, passed the ISO9001: 2008 quality management system CCS certification, Taixing factory(Jiangsu Heavy ForgingCo., Ltd) has been the United States ABS, French BV, British LRS, Germany GL, Norway DNV, Italy RINA, Japan NK, Korea KR, China CCS DNV factory approval certificate. Jiangyin factory has made the EU Pressure Equipment Directive PED97/23/EC and German AD2000-W0 bearing technical regulations approved. Pressure piping components A-class manufacturing license also in application. The company mainly produces all kinds of free forging forgings, carbon steel, alloy steel, stainless steel and other materials of various specifications and types. Production capacity: Shaft (maximum weight of 16 tons, the maximum length of 12 meters); The ring gear class (maximum weight of 16 tons, the largest diameter of 2.5 meters); The cylinder (maximum weight of 10 tons, 1.5 meters, the largest diameter of 4 meters in length); Tube plate (the maximum diameter of 2.5 meters, maximum weight of 16 tons)
