| Prod Model: |
AF-3C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001: 2000 and CE |
| Air Press: |
4.5 Kg/Cm |
| Color: |
Black |
| Condition: |
New |
| Feeding Width: |
80mm |
| Feeding Length: |
80 Mm |
| Feeding Thickness: |
1.2 Mm |
| Feeding Speed: |
150 Times/Min |
| Weight(Include Tool): |
12.8 Kg |
| Type: |
Metal Cutting Machine |
Product Description
The feeder contains standerd type, standard type(air feeder), e type electromagnetic valve, r type release solenoid valve
Features of the feeder:
1. Standard type
Suitable for plastic and metal strip feeder capacity 0-500 mm width, 0.1-3mm thick strip of round or irregular section special attachment: Over AF-4C for extraforce.
2. Standard Type(air feeder)
Can be set up a type release valve, it must be in used for high precision product feeding. Also, it may use R release valve to release the fixed clamp for correcting the tolerance of feeding material

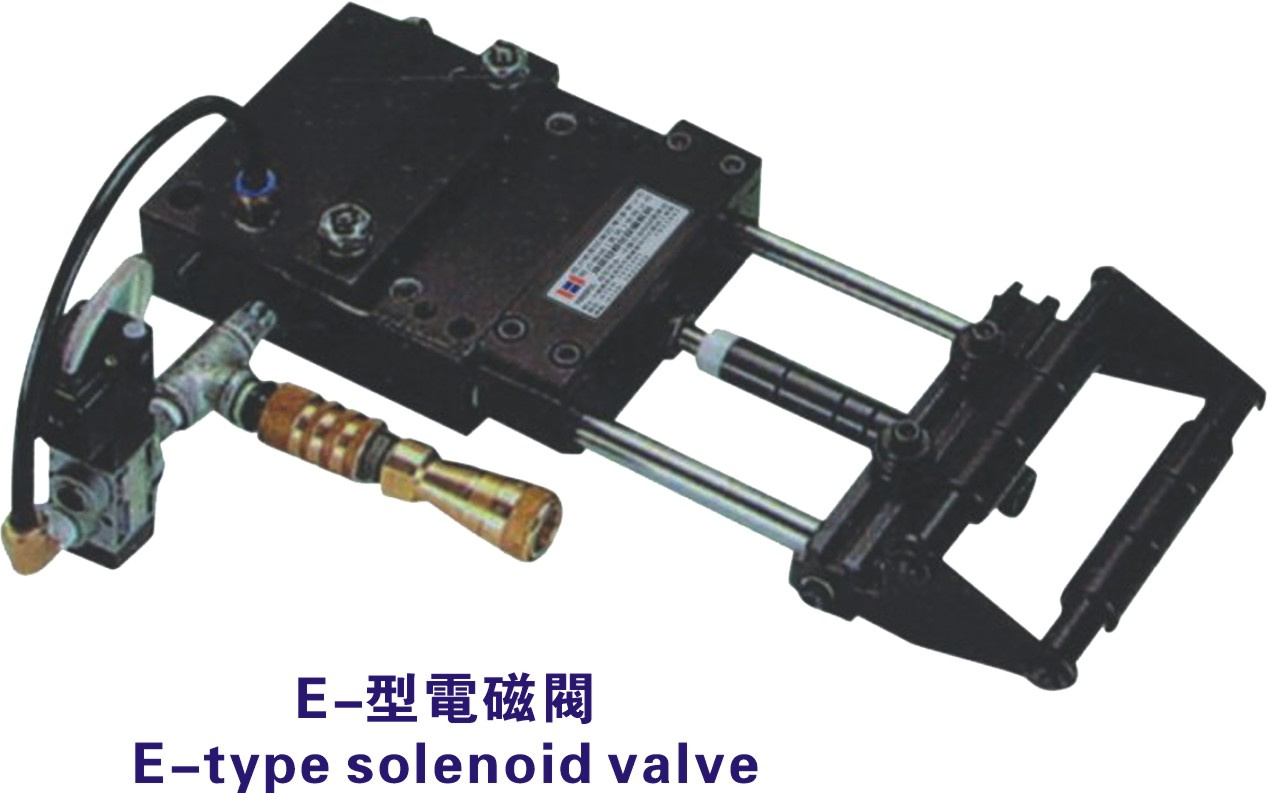

3. E type electromagnetic valve
If the press stroke were shorter or longer to feed material while it might be set up E type electromagnetic valve.
4. Standard type( air feeder)
Can also be set up both R type release valve & E1 type electromagnetic valve same time it must be in used for high precision product feeding also it may have same efficient as above(2)&(3)
|
Model |
AF-1C |
AF-2C |
AF-3C |
AF-4C |
AF-5C |
AF-6C |
AF-7C |
AF-8C |
AF-9C |
AF-10C |
AF-11C |
|
Max Feeding Width mm |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
|
Max Feeding Length mm |
50 |
80 |
80 |
130 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
|
Max feeding Thickness mm |
0.5 |
0.8 |
1.2 |
1.5 |
2 |
2 |
2.5 |
2.5 |
3 |
3 |
3 |
|
Air press kg/cm |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
|
Speed max. |
200 |
160 |
150 |
93 |
80 |
60 |
48 |
40 |
35 |
30 |
25 |
|
Fixed stock cl.Force.kg |
10 |
27 |
40 |
55 |
78 |
78 |
90 |
100 |
119 |
119 |
119 |
|
Movable stock cl.Force.kg |
30 |
49 |
65.5 |
72.5 |
144.5 |
169 |
200 |
217 |
220 |
245 |
245 |
|
Pulling cl.Force kg |
14 |
16.5 |
19.5 |
25.5 |
41 |
41 |
67 |
74 |
77 |
85 |
85 |
|
Air consup.L/min |
26.5 |
38.5 |
47 |
58.5 |
109.5 |
108.5 |
152 |
162.5 |
174.2 |
182.5 |
185 |
|
Weight(include tool)kg |
8.8 |
9.6 |
12.8 |
19.6 |
38.4 |
52.4 |
80 |
95 |
156 |
178 |
200 |
