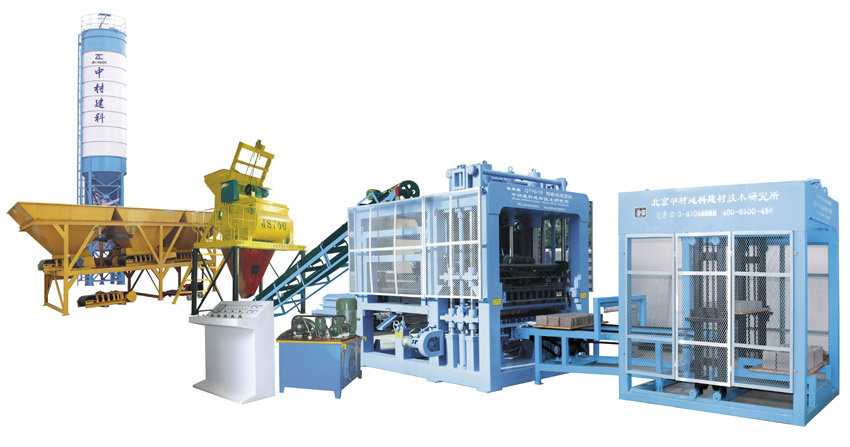

Automatic Block Making Machine Line (QTY9-18)
| Price: |
US $ 74560/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
QTY9-18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Processing: |
Brick Molding Machine |
| Method: |
Hydraulic Pressure |
| Product: |
Brick |
| Tolerance: |
0.5mm |
| Condition: |
New |
| Brick Raw Material: |
Sand, Fly Ash, Stone Powder, Concrete, Cement |
| Weight: |
13.5 |
| Power: |
47.9kw |
| Cycle Time: |
18s |
| Certification: |
ISO9001: 2000 |
| Type: |
Block Making Machine |
Product Description
1. PLC system and Touch Screen are made by Siemens from Germany. It has humanist operation interface and advanced automatic fault diagnosis system
2. It uses gear and rack to strip the molds, rise and drop stedy
3. Materials car link, whole casting, durable and beautiful appearance
4. When loading materials, kick fork shakes quickly by a special angle to fill the mold with materials. Kick fork is made by strong cast steel can be replaced
5. Add two extended orientation sets to make the press head working steading and synchronously, extend the usage lift, Welded with thick steel plate, it is solid and durable with removable connection
Production Capacity of QTY9-18
|
|
Items |
Size(mm)
|
pcs/mould |
Cycle Time |
Production capacity |
(L*W*H)
|
pcs/hour |
pcs/day |
|
Standard Brick |
240*115*53 |
50 |
15-18S |
10000 |
80000 |
|
Hollow Block |
400*200*200
|
9 |
15-18S |
1800 |
14400 |
|
Paving Bricks |
|
0.6m² |
15-18S |
120m² |
960m² |
Technical Specifications of QTY9-18
|
|
Brand Name |
Zhongcai Jianke
|
|
Control Mode |
Hydraulic Block Making Machine
|
|
Brick Raw Material |
Sand. Cement. Fly ash. Concrete. Boiler slag, Mountain flour. Industrial Waste
|
|
Main Power |
42kw
|
|
Weight |
13.5T
|
|
Dimensions |
8300*4400*2950mm
|
|
Vibrating force |
80KN
|
|
Land area |
10000m²
|
Introduction:
Beijing Zhongcai Jianke Institute of Science and Technology for Building Materials is located in Guangzhuang, Dongli, Chaoyang District of Beijing which is the birth place for building materials. It is specializing in the manufacture and export of block making machine and roof tile machine and other construction equipments.
Quality is the core of our company. Advanced inspection equipments and stringent quality control tests make us through ISO9001 certification, and also we have passed the tests of National Building Materials and Mechanical Products Testing Center. Service is the guarantee of company life. Providing the customers with first-class service is our long-term and unchangeable ideas. Our products have been exported to Asia, South America, Africa, Middle East, Russia and so on.
It is our unceasing pursuit to commit ourselves to research and develop high-quality, environmental protection and new type building materials
1. Our head office is in Beijing
2. Our machines had been exported to 92 countries
3. Our product has passed CE, ISO9001, BV, SGS, CTC cetification
4. We have 2 Factories in China, one is in Beijing, the other one is in Wuhan China
5. We have 12 different models, Small, medium and large investment from USD1, 600 ----- USD350, 000.
6. We are an institute belong to China Building Material Academy, here is the most authoritative China Building Materias Inspection and China Construction Machinery Inspection And Certification Center.
7. We have after-sales departent in Asia, America, South America, Africa.
8. Engineers will come to you to install the machine and train workers for you.
