Product Description

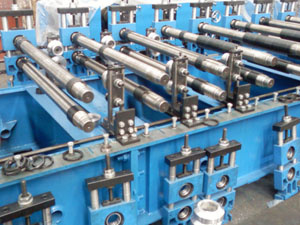

C Z Purline Roll Forming Machine consists of hydraulic decoiling machine. Leveling machine. Two sets of hydraulic punching device. Hydraulic cutting device. Forming system. Leveling rollers. Supporter of product. Controlling system an hydraulic system. It is one automatical line for C and Z purlin for steel structure industry and fill up the blank of domestic market.
Main features:
1. High production efficiency, forming speed can reach 30m/min.
2. Forming structure adopts style of forming on both sides of shaft with disconnecting the middle. Change C & Z purlin and size of purlin automatically, no need adjust the machine manually.
3. Adopt digital-control system to control the machine, with function of multi-task programming, simulation showing. Saving data. Inputting and downloading data. It can change to do C &Z purlin based on the input parameters; Real-time display such as speed, the current location, Next position, the status of the work of Punching head, the workpiece code, the quantity has been completed, etc.
4. Hydraulic driving to form, hydraulic punching, hydraulic cutting. The hydraulic motor and main hydraulic components used mainly German original; Adopt proportional control technology, adjust the forming speed automatically, position correctly, no impact; Adopt load sensitive technology, system load pressure can automatically adapt to the changes, so that to maximize lower system power consumption, and can control the oil temperature well.
5. Complete line requires 2 operators only. One person charges programming, the other one is responsible for loading and unloading materials, labor intensity is very low.
Technical parameters
1. Max. Section width: 350 mm
2. Max. Section height: 120 mm
3. Thickness of material: 1.6~3.2mm (under coil yield strength at 235Mpa)
4. Punching width range: 45~500mm
5. Max. Capacity of decoiler: 10 T
6. Max. Forming speed: 30m/min
7. Total power: About 65KW
Specializes in manufacturing plastics machinery and equipments. Located in scenic and national sanitation city, Zhangjiagang, the H. Q. Is adjacent to Shanghai to the east, Nanjing on the west, which enjoys very convenient communication. Besides, offices have been set up in Guangdong, Thailand, Malaysia, etc. The company possesses the first class design system with experienced technology team. It is integrity of scientific researching, developing, producing, logistics, services and extraversion business, etc.
The company has developed plastics machines above 100 specifications, mainly including bellows production line, big-mouth PVC water & waste excluding production line, plastic recycling production line, PE big-mouth gas, water supply or excluding production line, panel production line, granule production line, clubs pipe production line, PP-R pipe production line, plastics extruder, high speed mixer, mixer units and various plastic auxiliary machines, which are sold to USA, Singapore, Thailand, Malaysia, Hong Kong, Iran, etc. We successfully developed big-mouth hollow wiring production line and will applied for several national patents.
It's our forever promise to insist in Supreme Credit and Customers First. In our philosophy, perfect services are much more important than sales. Our tenet is to actively master market, unite old customers and explore new ones, delicately guide consume, serve with heart and soul to make improvement in company benefit and social value and build country wide sales service net.
All of our machines pass ISO9001-2000 quality system certification. For most of exported machines, we have CE marks!
