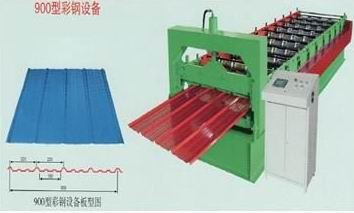

Automatic CNC Control Steel Roll Forming Machine (SB15-225-900)

Automatic CNC Control Steel Roll Forming Machine (SB15-225-900)
Price: US $ 12000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Prod Model: SB15-225-900
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty Period: 12 Months
Surface: Plating Hard Chromium
Color: Can Paint as Your Requirement
Control System: CNC Control System

Product Description

Automatic CNC Control Steel Roll Forming Machine (SB15-225-900)

Hydraulic shearing
Material of blade Cr12, heat treatment 60-62Degrees Celsius
Shearing system: It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.

Power of the oil pump: 4kw
Hydraulic oil: 40#
Electrical system
Screen display: 5.7 inches TaiDa touch screen
Main computer control cabinet: It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: Automatic and manual one. The system is easy to operate and use.
Processing precision: Within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand is EURA
The seller should provide Chinese and English language screen.
Molding  host Model  SB  900
Forming  size 8400mm*1400mm*1200mm
weight 4  T
Host  big  frame  structure Frame  welded
Roll  station 13  row
Axial  material 45#  steel
Out  diameter  of  shaft Φ 80
Roller  materials 45#  steel  hard  chromium  plating
Drive By  chain
Sprocket  chain  1  inch
Main  power 4kw
Working  speed 8-10  m/min
Material  thickness 0.3-0.8mm
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers

Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level

Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.

The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
