Automatic Die Roll Forming Machine

Automatic Die Roll Forming Machine
Price: Negotiable
Min Order: 1

Product Description

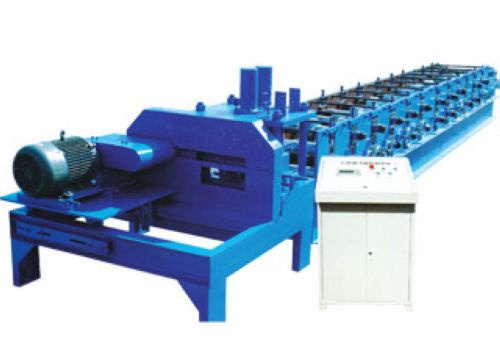

The C-purlin roll forming machine is a set of rollers to produce a variety of standard C-purlin roll forming machine, single product. Using 9 roller of relatively cheap, entry material used four roller positioning, the machine mainly by passive loading frame, leveling device, punching device, molding, after cutting device, hydraulic station, computer-controlled systems. Automatic grinding machine is broken, (flying saw cutting) punching, easy to operate and so on.

Main technical parameters:
(1) Equipment Dimension: 8000mm × 1500mm × 1200mm
(2) The pipeline full: 17000-20000mm
(3) Rolling range: Width 80-300mm Height 40-100mm
(4) Rolling Thickness: 1.5 mm-3mm
(5) Equipment Total weight: 6000kg
(6) Electronic Control System: Japan Panasonic PLC inverter,
(7) Host Power: 11kw
(8) Reducer: 8 # planetary cycloid-style, power 11KW
(9) Hydraulic System Power: 4kw
(10) Power: 15kw
(11) Working speed: 7000-10000mm / min
(12) 10-12Mpa pressure hydraulic station
(13) Spindle 45 # steel, after processing the body-axis dimensions 80mm, shaft wheel for the chrome bearing steel quenching, hardness to ensure that 62 degrees.
(14) Host using 400H Steel frame, 18mm thick Li-board.
(15) Chain Size: 2-inch, 12 teeth.
(16) Seams, Semi-mat.
(17) 15 rows forming, 9 roller leveling.
Jinchengxin roll forming machinery factory is a leading manufacturer of roll forming machinery in China. We have many years' experience in researching, developing and producing various of roll forming machines. We own a high-quality and professional team in design, scientific research, manufacturing, sales and after-sales services. Our technique power is very strong, there are 150 professional talents in related fields, 20 employees have senior professional titles, more than 50 employees have medium professional titles and 80 technicians. We own advanced production equipments, strong production capacity and perfect aftersales service system. Our enterprise passed ISO9001: 2000 international quality system certification, we always carry Out 9001 standards strictly in the course of producing. We provide customers with excellent products and integrated service, so our products and barand have been approved unanimous and gained very good reputation from customers of domestic and overseas, therefore so many customers from home and abroad are willing to keep long and good cooperation with us. Our products not Only extended all over our country but also entered international markets, our products have been exported to Russia, SaudiArabia, Canada, Spain, Australia, NewZealand, Singapore, Korea, Srilanka, Malaysia, Nigeria, Armenia, Tanzania, Azerbaijan, Kazakhstan, Brazil, Mexico, etc.

We are specialized in producing Roof board and wall board forming machine Series, Glazed tile forming machine series, Floor plate forming machine series, C and Z steel products forming machine series, Doubledeck color steel tile forming machine series, Roll shutter door forming machine series, Clip core board line series, Ridge tile and attached equipment forming machine series, Arch equipment series, Checking level machine series, Plate Cut-off equipment series, Highway guardrail equipment series, Uncoiler and stacker series, Drainpipe forming machine series, Plate shearing machine and bending machine and Slitter machine series, Other supporting facilities and so on.

At the same time, we can customize the design and fabrication on the particular type of machine for coustomer.

Our technician team always pay close attention to and keep up with the develop trend of technologies and adopt new technologies in our products, so our products have characteristics of high efficiency, high flexility and low production cost, this characteristics keep our products' competitive power. So all of our products are popular to steel building industry as light construction, reasonable design and update style.

Customer's benefit is the first, we know that deeply our development and success come from development and success of our customer, we run this mind through the whole process from design products to after-sales service, we design and produce product according to the demand and request of customer to help them advance efficiency, reduce cost and increase competitive power.

Our perfect after-sales service ensure we can supply high quality service to every customer. We will insist on the principle of "Customer is our god, Quality is our life, Service gain trust, Innovation gain development, Credit cast brand, Beyond cast resplendence " to supply satisfactory products and high quality service to every customer.

Warmly welcome friends from all circles of the world to visit our factory, we sincerely hope to establish long and good business relationship with all friends, looking forward to create a beautiful future with you!
