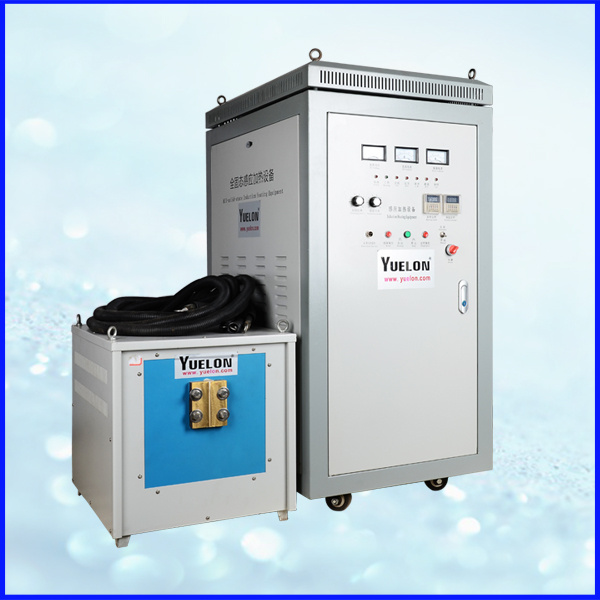

Prod Model: |
SF-80AB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Used For: |
Hot Forging, Hot Fitting and Smelting |
Place Of Origin: |
Yongkang China (Mainland) |
Brand Name: |
Yuelon |
Voltage: |
340-480V |
Certificate: |
CE |
Work Condiction: |
24hours |
Cooling: |
Water |
System: |
IGBT |
Guaranty: |
12month |
Duty Cycle: |
100% |
Forging Forming Method: |
Free Forging |
Product Description
Specifications:
Category | Model | Maximum input power | Oscilating frequency | Maximum input current | Input voltage | The range of operating voltage | Duty cycle |
Supersonic frequency series | SF-30AB | 30KW | 10-40KHZ | 48A | 3phase220V/50Hz | 180V-250V | 80% |
SF-40AB | 40KW | 10-40KHZ | 80A | 3phase380V/50Hz | 340V-430V | 100% |
SF-50AB | 50KW | 10-40KHZ | 90A | 3phase380V/50Hz | 340V-430V |
SF-60AB | 60KW | 10-40KHZ | 110A | 3phase380V/50Hz | 342-430V |
SF-80AB | 80KW | 10-40KHZ | 160A | 3phase380V/50Hz | 342-430V |
SF100AB | 100KW | 10-40KHZ | 200A | 3phase380V/50Hz | 340-430V |
SF120AB | 120KW | 10-40KHZ | 240A | 3phase380V/50Hz | 342-430V |
SF160AB | 160KW | 8-30KHZ | 280A | 3phase380V/50Hz | 342-430V |
SF200AB | 200KW | 8-30KHZ | 320A | 3phase380V/50Hz | 340-430V |
SF250AB | 250KW | 8-30KHZ | 380A | 3phase380V/50Hz | 342 |
SF300AB | 300KW | 8-30KHZ | 460A | 3phase380V/50Hz | 342 |
SF350AB | 350KW | 8-30KHZ | 540A | 3phase380V/50Hz | 342 |
Specifications:
1. Suitable for rod heating of steel,cooper,bronze and aluminum.
2. Portable and light weight,easily installed beside any pressing equipment.
3. Installation and operation can be very easily to use.
4. The rod can be rapidly heated to forging temperature to reduce the oxidtion of the rod furnace and to raise
the quality of the parts.
5. With a very large range of frequency adaptable the rod larger than 15mm can be heated.more rapidly and more evenly.
6. Designed to work continuously everyday.
7. Pneumatic rod feeding.
8. High efficiency,saving energy and cost.
9. Easy to change heating coil to heat rods of different size.
10. No preheating required just start the machine and can heat the components to a temperature of 1350
Degree Centigrade.
Heating (hot forging, hot fitting and smelting):
1 Hot forging aims to fabricate the work pieces of certain temperature (different materials require different
temperatures) into other shapes through forging press with the help of punch press, forging machine or other
equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and
table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based
on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of
computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of
aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.
3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly
applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.
Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)
Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
