| Prod Model: |
JLZ-160KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Jlz-160kw |
| Voltage: |
340V-430V |
| Dimension(L*W*H): |
650X600X1520mm |
| Weight: |
250kg |
| Color& Language: |
Printed According to Customer's Request |
| Cooling Water Desire: |
>0.6mpa 60L/Min |
| Including: |
Induction Heating Power, Forging Furnace, Pusher |
| Gross Weight: |
300kg |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Warranty: |
1 Year |
| Forging Forming Method: |
Hot Forging |
Product Description

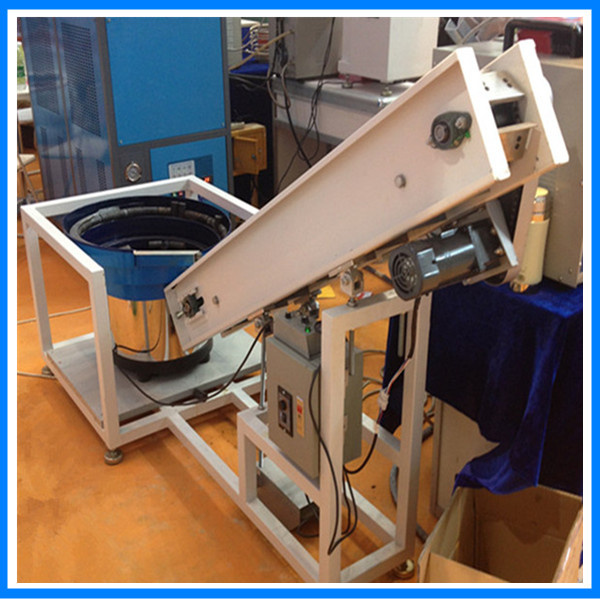

Automatic Feeding System Rod Induction Furnace Forging
Product Description
The furnace includes basically the JL medium frequency generator, the compensating cap, the working table, the heating coil, coil cover, rod feeder and so on. For some applications, the infrared sensor, temperature controller and automatic rod feeding systems can also be included.
1. Characteristics of M. F Forging Furnace
Wide frequency range from 1kHz to 20kHz, frequency can be designed to satisfy different size of the heated rods.
In the continuous heating process, the load inside the coil is stable, thus to overcome the great heating power change caused by the great change of the load during the heating course from cool rod to 1100 degree rod. The actual power can reach more than 85% of the rated power of the machine.
The heating coil can be 500mm to 1 meter long, several pieces are heated at the same time to make sure the penetrating effect.
Even when heating non-ferrous metals like copper or aluminium, the actual power can also reach more than 85% of the rated power of the machine by design the coil properly and match the compensating cap correctly. 3.5KG copper or brass can be heated to 700 degree per kilowatt in an hour.
2. Applications
M. F. Forging furnace is used for the heating of bars and rods larger than Φ 12, the material can be steel, stainless steel, copper, brass, aluminium and so on. The heating can be the whole rod, end of the rod or middle part of the rod.
Packaging:
Plywood Case; Pallet packing; Polyfoam Filling; Bolt Secured
Shipping:
By air, By sea, By express
FAQ
China supplies induction heating power supply
Questions and Answers:
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2. How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3. How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4. Which export port you use?
Any China port, commonly we will use Shenzhen, Guangzhou, Hongkong port, it can appoint as you like.
5. How about the payment terms and delivery time?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 30% deposit, 70% before shipment (we will shoot total delivering process for customer's confirmation)and the related papers. You an pay by T/T, L/C, Western Union or other ways.
The small machine delivery time is within 7 days, the bigger one takes about 15days, we will delivery goods on time.
6. If I have paid but can not receive the goods, how should I do?
Alibaba international website is a famous trade platform and has been mature those
Years, every supplier on it has paid large integrity fund, and we have Chinese business licenses which
Can be checked on China official website or we can show it to you, so that situation will never appear,
Please be assured.
7. Is your goods has ISO9001 or CE certificate?
Yes, all our goods has ISO and CE certificate. All machines are high quality goods.
8. What is your nature of your company: Dealer or factory?
We are manufacturer and have a big factory, warmly welcome to visit our factory and contact us.
Model |
JLZ-160 |
Input power max |
160KW |
Input power desire |
3 phase 380V 50/60HZ |
Fluctuating frequency |
1_ 20KHZ |
Max Input current |
240A |
Output voltage |
70-550V |
Duty cycle |
100%24hours work |
Net Weight |
Generator-160KG
Forging Furnace-90KG |
Cooling water desire |
>0.6MPa 6L/Min |
Additional function of JLZ-110 with timer |
(1) Heating time: 0.1_ 99.9 sec.
(2) Retaining time: 0.1_ 99.9 sec. |
Dongguan Jinlai Electromechanical Device Factory, founded in 1996, which is engaged in R&D, production and sale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.
Now there are series of products range from 3KW to 600KW, including the ultra-high/high/ super-audio/medium frequency induction heater, KGPS Parallel IF Power supply, IGBT energy saving IF power supply, 12 pulse IF furnace and special equipments (e. g. High-frequency quenching machine, Medium-frequency induction melting furnace, Ultrasonic -frequency annealing machine, Induction forging furnace, Brazing machine, Plastic welding machine, Branch divider/Bicycle fittings special -purpose welding machine, Railway river furnace, etc). These products are widely applied in the heating of hardware, metal (steel, iron, copper, aluminum) processing, plastic, deeply heating shaping, brazing, hardening, melting, annealing, hot cooperation and so on.
It was certified to ISO9001: 2008 quality system and CE certification. Advocating quality management conception of "producing products with zero defect", the quality has been guaranteed. The company has been sated up and perfected the marketing network and after-sales system. Our products are widely exported to Russia, USA, Italy, Romania, Netherlands, Finland, Turkey, Ukraine, Argentina, Brazil, India, Pakistan, Malaysia, Indonesia, Thailand, Vietnam and other countries or region. Most of products gain good reputation from customers.
Our conception is "human-oriented, service the society with innovation". "the quality and prestige are the fist" is our mission. The principle is "communal development, mutual benefit, we are looking forward to cooperate with you to create a bright future!
