| Prod Model: |
NCA8201C-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Nca8201c_120 |
| Tube Diameter: |
φ 22, φ 25, φ 28, φ 30, φ 32, φ 35 |
| Tube Length: |
≥ 50mm |
| Tube Making Speed: |
120pieces/Min (L=160mm) |
| Total Power: |
10 Kw |
| Power: |
AC380v, 50Hz, 3p |
| Compressed Air Consumption: |
30m3/H |
| Dimension: |
: (L× W× H)6195× 838× 1640 (Mm) |
| Total Weight: |
2500kg |
Product Description
1. Usage:

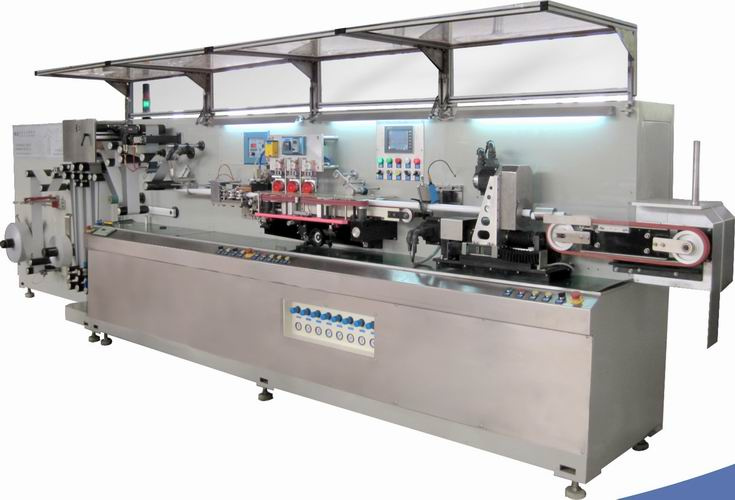

The machine is used to make tubes for packaging various cream or milky products such as toothpaste, cosmetics, medicine, and food etc. By shaping, high frequency welding and cutting (in the designed length) the laminated material automatically.
2. Main Technique Features:
The machine does not stop for the material is stored automatically before changing the roll.
Material feed system has the AUTO spare side of material cutting and the rectifying functions.
Roll unwinding tension AUTO control.
The temperature is tested by infrared ray, control the product quality precisely.
Servo cutter: Roller cutter or rotary cutter for choosing.
Two ways of cutting: Detector photo-cell track; Designed length setting. PLC control, trouble warning and display.
Parameter can be set by touch screen, easy operation.
Laminate tie-ins can be tested automatically, alarm and remove the waste material.
Water chilling unit, make sure the tube seam firm and beautiful.
3. Main Technical Specification
Model: NCA8201C_120
Tube diameter: φ 12.5-φ 45mm(Standard part can be one of the followings: φ 22, φ 25, φ 28, φ 30, φ 32, φ 35, φ 38)
Tube length: ≥ 50mm
Length allowance: <± 0.25mm
Tube making speed: 120pieces/min (L=160mm)
Total power: 10 KW
Power: AC380V, 50Hz, 3P
Compressed air consumption: 30m3/h
Pressure of the compressed air: 0.5-0.6MPa
Cooling water flow: 20L/min
Cooling water pressure: 0.1-0.3Mpa
Cooling water temperature: 15-20
Dimension : (L× W× H)6195× 838× 1640 (mm)
Total weight: 2500Kg
Zhongshan nca Co., Ltd. located in zhongshan city, guangdong province, China (near hongkong), was established in 1999. Guided by the science and technology, the company is specialized in developing, producing and sales of the automatic packaging machine and other special order-made equipments. The company is the hi-tech enterprise and the guangdong province private science and technology enterprise.
Nca established the enterprise technology developing and researching center; Possesses a group of experts and senior engineers in different field of mechanics, electronic, hydraulics and optics, possesses the strong ability for developing and designing complicated and large automatic equipments. Nca possesses thousands of square meters of workshops and more than 40 sets of advanced processing equipments; Possesses a group of the skillful and positive workers for the machining and assembling of the machine.
Nca passed the ISO9001: 2008 "quality management system certificate", possesses the perfect quality assurance system and the integrated production capacity. Nca possesses the rich and mature flexible packaging spout inserting technology, nca designs, develops and produces "automatic pouch spout inserter", "laser line cutting device on flexible films & bags", "laminated soft tube making production line" and etc automatic flexible packaging devices, which have been exported to Europe, Australia, north America, south America, north Africa, Asia, Middle East and Taiwan etc more than 30 countries and areas. Nca designed special order-made equipments for more than ten well-known companies and some are the first in the field in China. Possessed more than 30 terms of invention and utility model patents in China; Guangdong province patent honorable mention; Zhongshan city gold award;
Nca pursues the motto: To create new technology, to improve the quality, to supply the best service and to meet the customer requirements.
