| Prod Model: |
Z94 SERIES |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Automatic Nail Making Machines: |
High Speed Nail Making Machines |
Product Description
We are one of the Chinese professional manufacturers work at different types of Nail Making Machines. The following items are the related products of the Nail Making Machines, kindly pls view the details as follow. If any query you have for Nail Making Machines, pls don't hesitate to contact with us at any time and we are willing to further assist you!
Description:
Low noise
High speed
High quality
Nail making machine

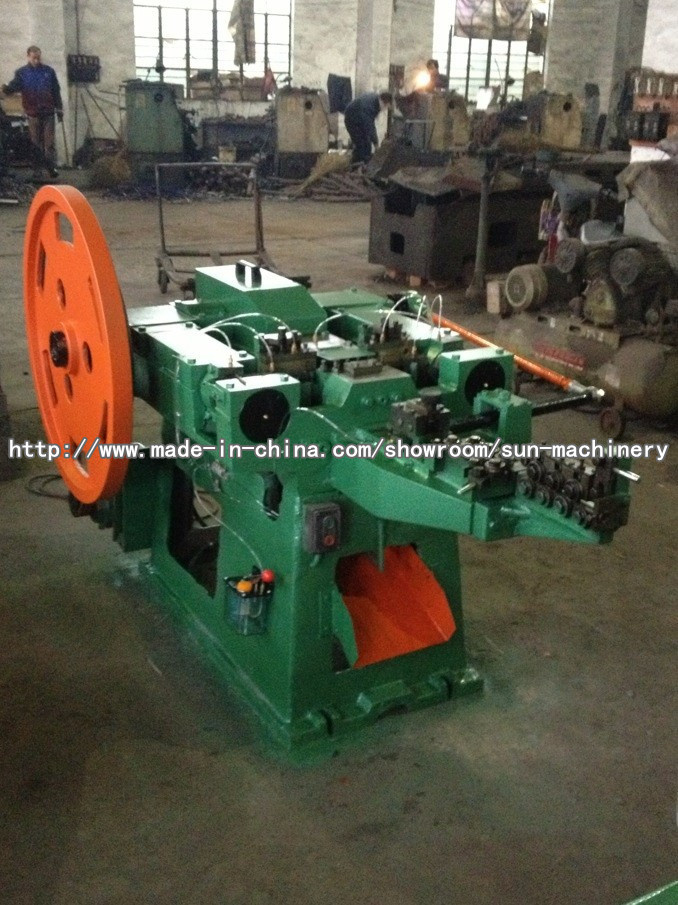

This new type machine adopts plunger and oil pipe lubricating structure so as to ensure the features such as high speed, low noise and less impact. Especially, it can make high quality of asphalt felt nails and other special nails used for high speed coil collator and coil nails.
The maintain of nail making machine
1, No adjust when the machine is working
2, Keep the machine clear, wash the nail mould regularly, don't use rust the steel wire making nail.
3, before pull the inlet wire hand shank, the nail machine should be open in advance. Stop inlet wire when you want to turn off the nail machine.
4, keep the nail knife sharp.
5, Note the temperature changes of each rub parts and abnormal noise in the machine running.
6, Turn off the powder supply before you fix the machine.
7, Use original specification when you need change some equipment parts.
8, lubrication the machine regular, when use a new machine, it should be lubricated mass in 15 days.
9, Don't running the machine after dismantle the protective cover.
|
Model: |
Unit |
Z94-5C |
Z94-4C |
Z94-3C |
Z94-2C |
Z94-1C |
|
Dia of nail max: |
mm |
6 |
4.5 |
3.1 |
2.8 |
1.6 |
|
Dia of nail min: |
mm |
2.5 |
2.8 |
1.8 |
1.2 |
0.9 |
|
Length of nail max: |
mm |
150 |
100 |
75 |
50 |
25 |
|
Length of nail min: |
mm |
50 |
50 |
30 |
16 |
9 |
|
Designed output: |
Pcs/min |
180 |
260 |
280 |
300 |
450 |
|
Motor power: |
kw |
5.5 |
4 |
3 |
2.2 |
1.5 |
|
Weight: |
kgs |
2500 |
2000 |
1800 |
1500 |
1200 |
|
Overall dimensions: |
mm |
2600*1650*1750 |
2200*1600*1650 |
2000*1400*1400 |
1700*1300*1400 |
1500*1300*1200 |
Csun machinery, accumulating 39 years of professional manufacturing experience, with specialty, design and manufacturer together, mainly committed to high quality machineries manufacturer and development, the machines mainly included wire drawing machines, wire straight and cutting machines, nail making machines, galvanizing machines, copper plating machines, cloth wire hanger making machines, mattress spring machines, quilting machines, sewing machines, packaging machines, foam making machines, foam cutting machines etc. We also supplier and wholesales for all accessory materials for abroad customers, it includes drawing powder, chemical materials for galvanizing production line like the galvanize lucency material, boric acid, zinc sulfate, cold drawing wire, galvanized wire, steel wires for mattress, mattress springs, inner spring units, mattress tapes, mattress tickings, felt, non-woven fabrics, mattress clips, staples, pneumatic tools, ventilated air holes, mattress handles, thread and glue etc, also welcome for samples order.
Our company honor ISO9001 international quality certification and CE certification, mostly machines already apply the special patent. Our market includes MID east, south America, Africa, aisa etc. It sold to Saudi Arabia, Syria, Libya, Russia, Malaysia, Australia, Greece, Iran, Singapore, Philippine, Ukraine, Lebanon etc all over the world.
We are responsible, honest and always-improving attitude, strives to achieve best quality and best service for every abroad customers.
