Product Description
Specialized with 11 years' experience. Manufacture both standard and customized Corrugated Steel Sheet Forming Machine
Specialized in the filed of roll forming machine since 2000, with 11 years' experience. Manufacture both standard and customized Roll Forming Machine, as per their specific needs and requirements.

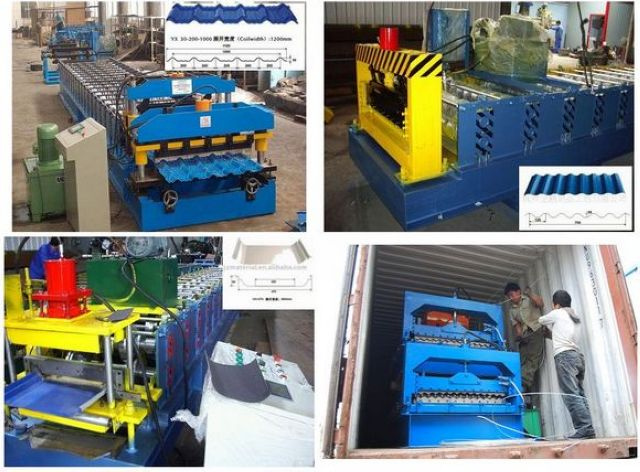

Corrugated Steel Sheet Forming Machine, YX18-76-836
(1) Descriptions:
The panel forming line can manufacture various kinds of beautiful roof and wall panels. Produced panel has a beautiful appearance and bright color, which are widely used in garden, factory, resort, hotel, exhibition hall, vacationland, ancient architectures and modern villa.
The production line features that it applies advanced technology and has rational design, high productivity and stable performance.
(2) Producing Process Sketch
Decoiling the sheet-sheet guiding -roll forming-measure length -cutting the panel-panels to the supporter
(3) Main technical parameters
General
Type YX18-76-836 Corrugation Roll Forming Machine
Sheet material Pre-painted steel sheet, galvanized or aluminum sheet
Thickness of material 0.18-0.8 mm
Width of material 1000 to 1250 mm
Forming Speed 8-10m /min
Forming steps 16
Dimension 8800*1300*1400 mm (L*W*H)
Weight 5T
Main machine
Main Motor Power 5.5kw, adopts cycloid cam speed reducer, chain transmission
Hydraulic motor power 3.0kw
Diameter of Roller Φ 75mm. High grade No. 45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Type of Cutting Roll-formed and length-set cutting
Material of Cutter Cr12 mould steel with quenched treatment
Electrical components
Voltage 380V 3phase 50Hz (changeable)
Controlling System PLC Frequency Conversion Controlling System
PLC Model Delta DVP14ES
Products Warranty: 12 month, and we will provide the technical support for the whole life of the equipment
