| Prod Model: |
HZ-1751 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electronic Heating Plate Balance Degree: |
+/-0.03mm |
| Temperature: |
Max:300°c;Rise to 300c Within 1h |
| Temperature Control: |
Pid |
| Pressure Switch: |
Two Points |
| Movement Type: |
Lower Model Die Mobile |
| Timer Range: |
0.1~999s ;0.1~999min;0.1~999h(Optional) |
| Exhaust Control Setting: |
0~999s(Changeable) |
| Volume: |
100 * 70 * 165 Cm |
| Machine Weight: |
1320 Kg |
| Power Supply: |
AC 380V, 50Hz/60Hz |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
Plastic Testing Machine |
| Maxcapacity: |
Max Temperature:300 Deg |
| Load Way: |
Automatic Tablet Sulfur Molding Test |
Product Description

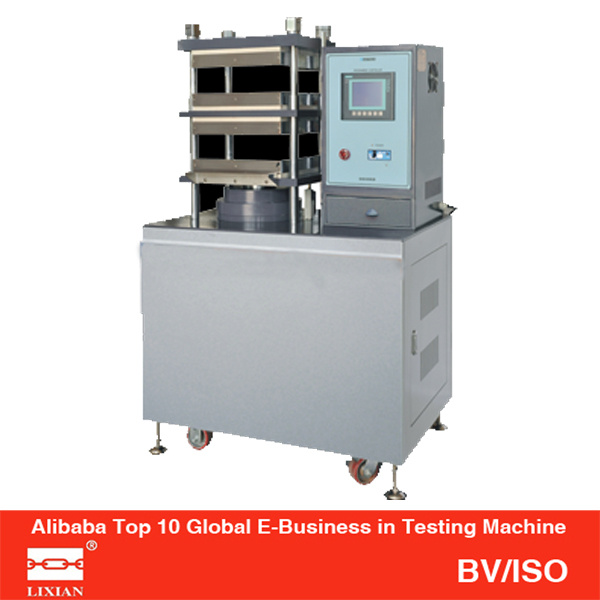

Automatic Tablet sulfur molding testing machine
Product summary:
Raw material played in casting mold, clip between the machine electronic heating plate, add to pressure and temperature
To make the raw material to be model for testing. Adopt Siemens PLC automatically control with high integrated level and
Reliable. Touched LCD display control and easy to operate. Automatically control discharge pressure, evacuation time, test
Pressure, test time and ending test.
Model |
HZ-1751 Automatic Tablet sulfur molding testing machine |
Control system |
PLC+HMI |
Electronic heating plate area |
320 × 320 mm |
Electronic heating plate balance degree |
±0.03mm |
Temperature |
Max:300°C;rise to 300°C within 1h |
Temperature control |
PID |
Pressure switch |
Two points |
Movement type |
Lower model die mobile |
Timer range |
0.1~999s ;0.1~999min;0.1~999h(optional) |
Exhaust control setting |
0~999s(changeable) |
Volume |
100 × 70 × 165 cm |
Weight |
1320 kg |
Power supply |
AC 380V,50Hz/60Hz (regarding to different requirements) |
Lixian Instrument Co., Ltd., is a high-tech joint venture company which with professional design and manufacture of various type instruments. Company founded in 1992, the headquarters is located in Shanghai now, Company has a group of first-rate professionals, dedicate to product development and marking.
Most parts of products are mainly sale to Taiwan and overseas, Company not only has the advanced production equipment and strong technical force, but also introduced the high-tech scientific research units from Beijing and Shanghai to continue to develop newer products, Won the trust of customers with the first-rate quality, reasonable price and excellent after-sales service.
Business products:
Universal Testing Machine
Tensile Testing Machine
Universal Test Equipment
Environmental Test Chamber
Rubber Test Equipment
Professional Universal Testing Machine
Professional Rubber Testing Machine
Professional Environmental Testing Chamber
Universal testing machine Environmental testing machine Wire and cable testing machine Shoes testing machine Leather testing machine Luggage testing machine Paper & packing testing machine Textile tester Rubber testing machine|Stroller old car/ bicycle testing machine Toy testing machine Rubber and plastic testing equipment Enamelled Testing machine Spring testing machine Auto and motor testing machine|Adhensive Tape Electronic Balance Optical testing machine Building and building material testing machine Rock test machine Highway testing equipment Asphalt testing equipment Geotechnical instrument.
