| Prod Model: |
GA6300ZCA, GA6300ZC28B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Words: |
Marine Engine |
| Rated Output(Kw): |
735-1618 |
| Rated Speed(R/Min): |
500-750 |
| Fuel Oil Consumption(G/Kw.H): |
≤195 +5% |
| Net Weight(Kg): |
17500 |
| Cylinder: |
6 |
| Starting Method: |
Compressed Air Starting |
| Cooling Method: |
Close Circuit Water Cooling |
| Fuel: |
Diesel Engine |
Product Description

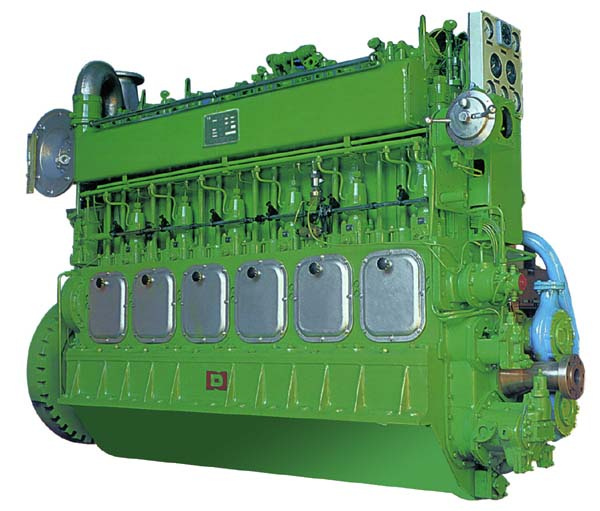

Avespeed GA6300 Series(735KW-1618KW) Low Speed New Marine Engine
Characteristics: 1. Meet with: ISO3046, ISO8178
2. Main application: ocean fishing vessels, tugboats/oil tankers, container ships,
passenger and cargo ships, engineering vessels
3. Low fuel consumption, high capacity of loading, reliable running,
convenient operation, HFO capability
4. The engine block is of gantry box structure,
form an integrity with underslung crankshaft to reduce vibration.
5. The crankshaft is high quality steel alloy integral full grain die forging,
designed with counterweight for each cylinder, manufactured with complete machining technics,
dynamic equilibrium inspection is taken to avoid crank unbalancing.
Our advantages:
1. GA6300 series medium-speed large power diesel engine is independently developed by AVESPEED in 2007,
it adopts underslung main bearing structure rather than traditional vertical
main bearing structure and features more compact structure, higher power to
weight ratio and small vibration etc.
2. We have many cooperation experiences in diesel engine with the coastal countries,
3. They are confirmed to be very successful through our after-sales following with their excellent quality and technology.
You must also like these marine diesel engines:
Main Technical Specifications of Serises GA6300 Marine Diesel Engiens| Model | Starboard | GA6300ZCA | GA6300ZC10B | GA6300ZC6B | GA6300ZC18B | GA6300ZC16B | GA6300ZC26B | GA6300ZC28B |
| Port | GA6300ZCA1 | GA6300ZC11B | GA6300ZC7B | GA6300ZC19B | GA6300ZC17B | GA6300ZC27B | GA6300ZC29B |
| Type | In-line,4-Stroke,Water Cooling,Direct Injection,Turbocharged,Intercooling,Irreversible |
| Rated Output(kW) | 735 | 971 | 1103 | 1323 | 1471 | 1471 | 1618 |
| Rated Speed(r/min) | 500 | 428 | 500 | 550 | 600 | 750 | 750 |
| Overload Power(kW) | 809 | 1068 | 1213 | 1455 | 1618 | 1618 | 1779 |
| Crankshaft of starboard positive rotation(The vision face of flywheel) | Clockwise |
| Crankshaft of starboard positive rotation(The vision face of flywheel) | Counter-clockwise |
| Fuel Oil Consumption(g/kW.h) | ≤195+5% |
| Lube Oil Consumption(g/kW.h) | ≤0.8 |
| Starting Method | Compressed air starting |
| Cooling Method | Close circuit water cooling |
| Overall Dimension(LXBXH)(mm) | 4994X1580X2776 |
| Net Weight(kg) | 17500 |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
