| Prod Model: |
AX-ZL3A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
220V/110V 50/60Hz |
| Power Consumption: |
2,500W |
| Motor: |
370W |
| Centrifugal Rev: |
550rpm |
| Centrifugal Radius: |
21cm |
| Casting Method: |
Centrifugal Casting |
| Max. Melting Amout: |
50g |
| Heating Method: |
Medium Frequency Induction Heating |
| Melting Time: |
30g≤65sec (Standard) |
| Cooling Fashion: |
Air Cooling |
Product Description
Item

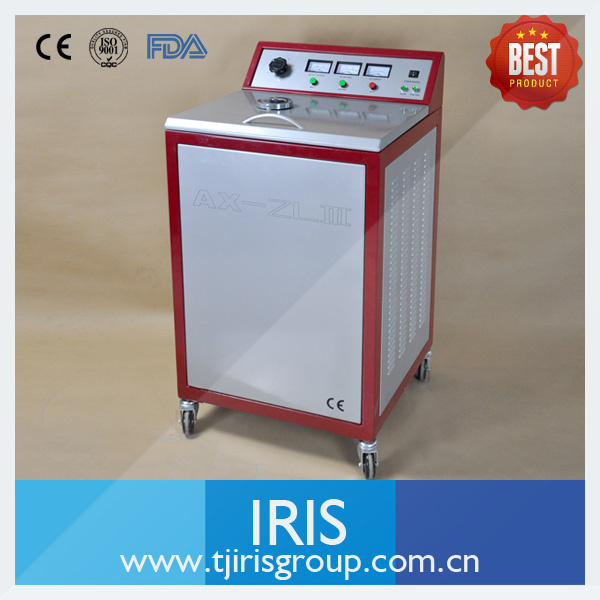

AX-ZL3A Middle Frequency Induction Casting Machine
Article Number
WM03001
Certification
CE Approved ISO9001: 2000 Approved
Purpose
This unit be used with most dental alloys except titanium. It can be used for casting partial frameworks as well we crown and bridge.
Description
The AX-ZL3A Medium Frequency Induction Casting Machine is upgraded from the AX-ZL3 model with digital display and touch control buttons, which makes voltage reading and operations much easier.
Comparing to a high frequency induction casting machine, it has the following advantages.
1. Highly efficient, low power consumption and low power rating (2.5kW) thanks to the advance all-transistor circuitry.
2. No preheating is needed, melting and casting can start immediately. The interval time between two castings is only two minutes, excellent for continuous casting.
3. It can work under 220V/110V voltage.
4. Safer and more reliable thanks to the low working voltage and low high-frequency radiation.
5. Compact size and lower weight.
Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 2, 500W
Motor: 370W
Centrifugal Rev: 550rpm
Centrifugal Radius: 21cm
Casting Method: Centrifugal Casting
Max. Melting Amout: 50g
Heating Method: Medium Frequency Induction Heating
Melting Time: 30g≤ 65sec (standard)
Cooling Fashion: Air Cooling
Dimensions: 93cm x 52cm x 52cm (H W D)
Shipping Dimensions: 111cm x 61cm x 60cm (H W D)
Weight: 120kg
Parts Included
Machine × 1
Manual × 1
Fuse × 16
Crucible × 5
Brush × 1
Tongs × 1
Casting Rings × 3
"V" Rings Bracket × 3
Silicon Bridge × 2
Electric Resistance × 1
Capacitance × 1
|
AX-ZL3 |
|
Induction Casting Machine (Air cooling) |
Analog Display |
$2,600 |
MW03001 |
0.4cu.m/120kg |
CE/ISO9001 |
|
AX-ZL3 Plus |
|
Induction Casting Machine (Water cooling) |
Analog Display |
$3,250 |
MW03001 |
0.5cu.m/150kg |
CE/ISO9001 |
|
AX-ZL3A |
|
Induction Casting Machine (Air cooling) |
Digital Display |
$2,860 |
MW03002 |
0.4cu.m/120kg |
CE/ISO9001 |
|
AX-ZL5 |
|
Vacuum Induction Casting Machine (Water cooling) |
|
$4,940 |
MW03003 |
0.5cu.m/145kg |
CE/ISO9001 |
