| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description

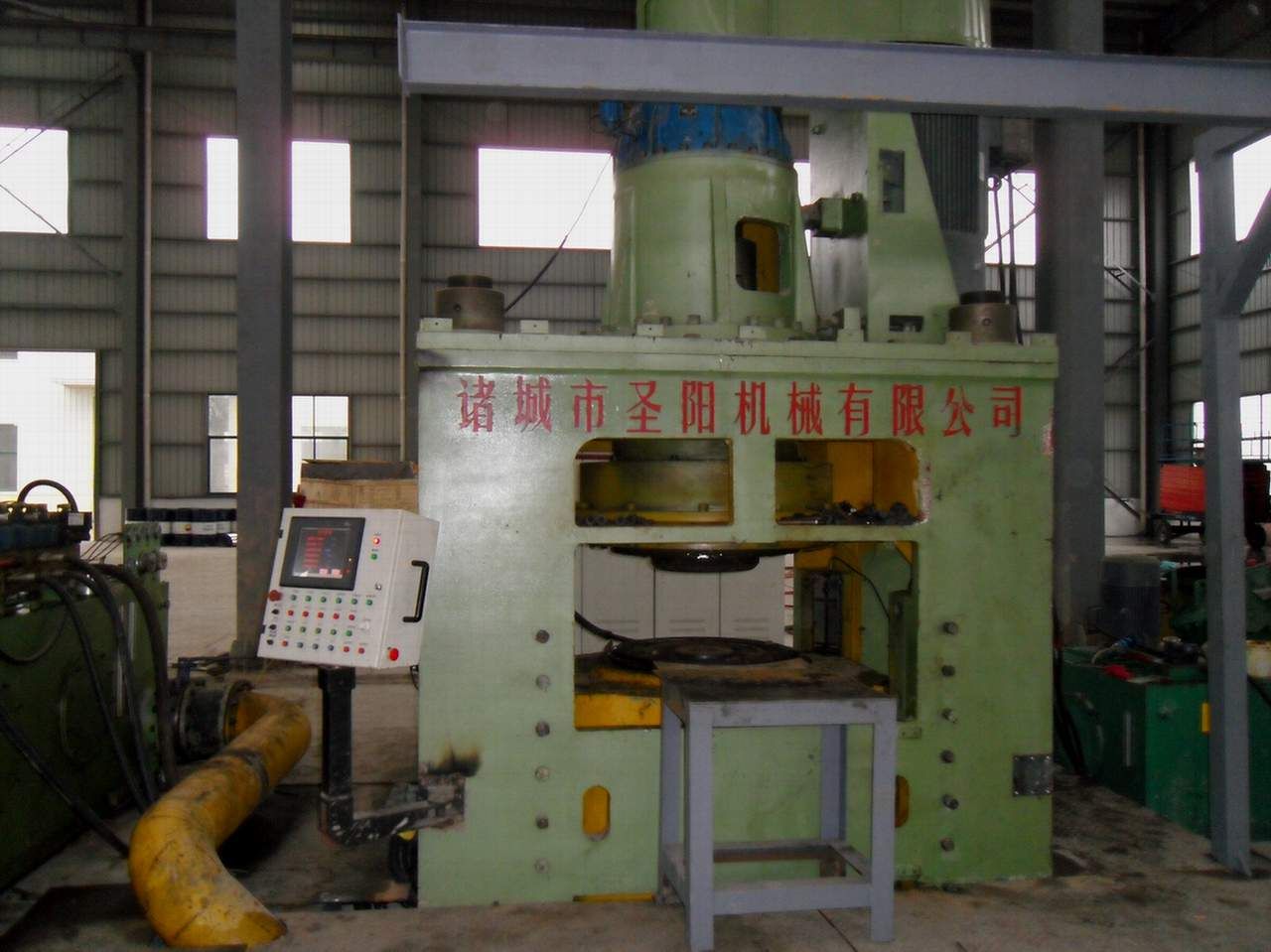

The axial closed-die rolling process is a partial forming process. Pre-rolled rings are placed in the rotating bottom die of the axial closed-die rolling machine. The top die, which also rotates, is inclined at an angle against the vertical axis. Depending on the construction, the dies are vertically adjusted and the ring is rolled in the impression. The rolling force required here amounts to only about 5 to 20% compared with a conventional closed-die forging press. Workpieces are rolled without flashes using the specially developed control system.
Model BN-200 BN-300 BN-400 BN-630 BN-800 BN-1000
Nominal pressure 2000 3000 4000 6300 8000 10000
Max diameter 200 300 360 420 500 600
Main motor 55 75 90 110 132 160
Feed rate 2-4 2-4 2-4 3-5 3-5 3-5
Max slider stroke 300 300 400 400 400 500
Ejector force 250 400 600 800 1200 1200
Zhucheng Shengyang Machinery Co., Ltd. is a high-technology enterprise, which specializes in research & development & manufacture for Ring Rolling Machine. After several years' innovation and development, our company has established a complete set of rigorous management system and perfect marketing network, which consists of technical development and lot manufacturing, quality control and market planning. " Basing on Ring Rolling, Serving for Forging" is our target.
We have developed and manufactured D51A, D51B, D52 and D53K series of Ring Rolling Machine which include more than 40 specifications. D51A & D51B series of vertical type Ring Rolling Machine have advantages of small volume and compact structure and saving material and power and so on, which also widely used for hot rolling of ringlike blank in bearing forging and auto gear and flange manufacture industry. D52 & D53K series of CNC horizontal type Ring Rolling Machine have the following advantages: Advanced structure, numerical programme control, high automation degree and productivity and saving material and power and so on. Especially D53K CNC Ring Rolling Machine, it can roll rings simultaneously in radial and axial direction and is the ideal equipment of processing large scale seamless rings, which has been widely used in spaceflight, aviation, ship, petrochemical industry and power industry and so on.
"Forging first-class products, pursuing customer's satisfaction" is our management principle. We are able to develop and manufacture all kinds of equipments according to customer's different requirements. We also have researched and developed forging charging-discharging machine, forging manipulator and forging hydraulic machine matching with our large scale Ring Rolling Machine. You are always welcome to SHENGYANG.
