| Prod Model: |
CY 14-1B |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Size: |
Cy14-1b |
Product Description
Our company and products will be your best choice all the times.

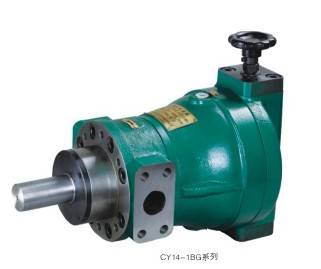

Leixon's goal is to consistently provide you with excellent quality hydraulic pumps,motors and replacement parts, delivered when you need them and at the most competitive prices.CY14-1B axial piston pumps are designed with it's cylinder group rotating and valve plate distributing.
Compared with other pumps. They are simple in strcture, high in efficiency and light in weight. Meanwhile, they have small volume, long service life, and strong absorption because of hydraulic static balancing structure between piston shoe and thrust plate, cylinder and vale plate. They are widely used in machine tool, forging machinery, metallurgy machinery, engineering machinery, mine machinery and other hydraulic systems. They also can be used as hydraulic motors if the valve plate is changed into motor type.
| model | Nominal pressure
Mpa | Nominal displacement
ml/r | Nominal flowL/min | Max. transmission power Kw | Max. theory torque
Nm | Weight kg |
| 1000r/min | 1500r/min | 1000r/min | 1500r/min |
| 125*(YCM)14-1B | 315 | 125 | 125 | 188 | 0.7 | 11 | 6.3 | 6.9 |
| 25*(YCM)14-1B | 315 | 25 | 25 | 375 | 1.43 | 22 | 12.6 | 7.2 |
| 10*(YCM)14-1B | 315 | 10 | 10 | 15 | 6.2 | 9.3 | 56 | 16.4~26 |
| 13*(YCM)14-1B | 315 | 13 | 13 | 19.5 | 8 | 12 | 72 | 16.4~26 |
| 16*(YCM)14-1B | 315 | 16 | 16 | 24 | 9.9 | 14.8 | 89 | 16.4~26 |
| 25*(YCM)14-1B | 315 | 25 | 25 | 37.5 | 14.6 | 22 | 139 | 28.4~41 |
| 32*(YCM)14-1B | 315 | 32 | 32 | 48 | 18.7 | 28 | 178 | 28.4~41 |
| 40*(YCM)14-1B | 315 | 40 | 40 | 60 | 23.3 | 35 | 223 | 28.4~41 |
| 63*(YCM)14-1B | 315 | 63 | 63 | 94.5 | 36.8 | 55 | 352 | 56~74 |
| 80*(YCM)14-1B | 315 | 80 | 80 | 120 | 46.7 | 70 | 445 | 56~74 |
| 100*(YCM)14-1B | 315 | 100 | 100 | 150 | 58 | 87.5 | 557 | 80~110 |
| 125*(YCM)14-1B | 315 | 125 | 125 | 188 | 73 | 109 | 696 | 80~110 |
| 160*(YCM)14-1B | 315 | 160 | 160 | 240 | 93 | 140 | 891 | 138~168 |
| 250*(YCM)14-1B | 315 | 250 | 250 | 375 | 146 | 218 | 1392 | 200~232 |
| 400*(YCM)14-1B | 315 | 400 | 400 |
| 233 |
| 2228 | 200~232 |

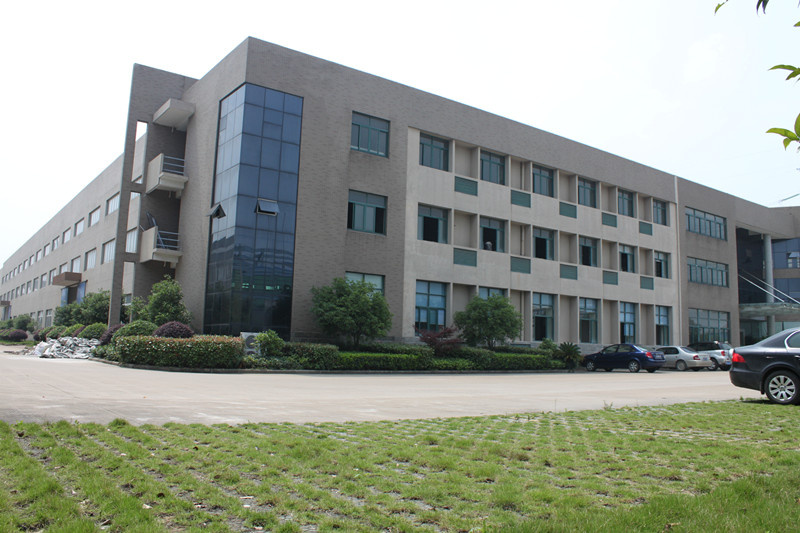

Ningbo Minghe Lisheng Hydraulic Techonlogy Co., Ltd.Is located in Ningbo, Zhejiang.We mainly supply all kinds of hydraulic parts, hydraulic pumps.
There is:REXROTH, CAT, KOMATSU, HITACHI, KAASAKI, UCHIDA, VICKER, LINDER, SAUER, etc

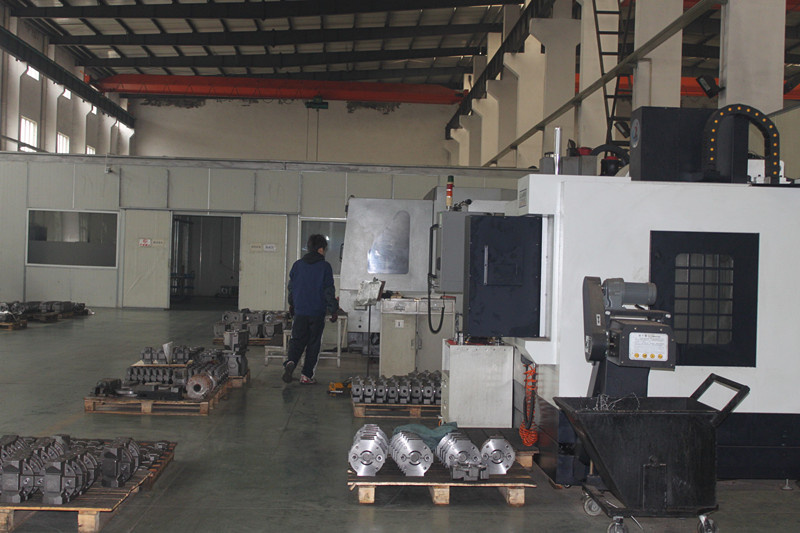

Minghe Lisheng Hydraulic Technolgy Co., Ltd is a provincial hi-tech manufacture, which specializes in the R&D and production of piston pump.We have the most advance engineering department, which has associated with professional from home and abroad.Our research center have strong independent R&D capability and has obtained a number of patents.
We always adhere to the principle of "quality first, customer first', Minghe has made contributions for domestric and foreign hydraulic industry with excellent quality and resonable price.
Customer's demands are our demands!Customer's satisfaction is our success!Our company will continue the tenet of high quality, reasonable price, the principle of honesty.We sincerely hope to create a better tomorrow with you!
