| Prod Model: |

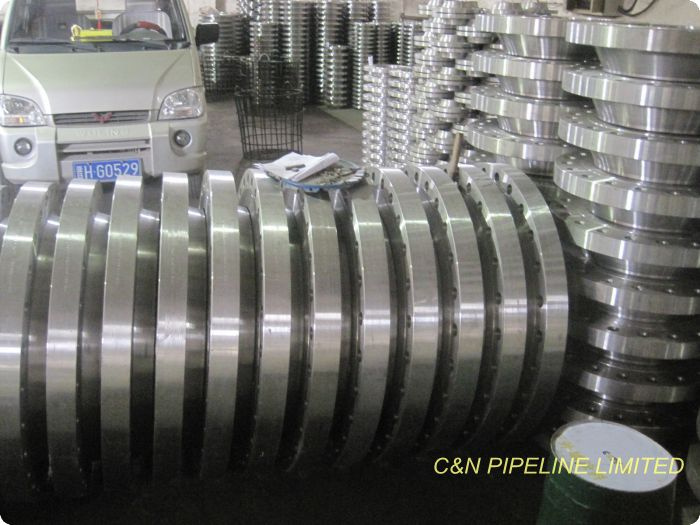

ASME/ANSI B16.5 & B16.47 FORGING FLAGES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flange Type: |
Wn, Sw, So, Bl, Lap Joint,Figure 8,Spectacle Blind |
| Pressure: |
150#, 300#, 400#,600#,900#,1500#,2500# |
| Material: |
Carbon Steel |
| Standard: |
JIS |
| Manufacturing Way: |
Forging |
| Type: |
Blind |
Product Description
Packaging & Delivery
Packaging Detail: | 1)Industrial packaging: plastic tube+carton+wooden pallets; 2)Commerial packing: plastic bag+color box+carton+wooden pallets, 3)As the clients requirement. |
| Delivery Detail: | Normaly ready goods and stock within in 5-25 days |
Material | total carbon steel or according to customer |
Feature | High anti-pressure ability and good rust resistance |
Usage | oil & gas, construction, shipment, water draining |
Packing | Plywood pallet of according to customer |
Certificate | ISO, TUV, PED |
Origin | China |
You can see more details about our products at flowing table:
Product |
Welding neck | Slip on | Blind | LWN(Long welding neck) |
Lap joint | Socket welding | Threaded | Plate flange/Flat flange |
Orifice flange | Anchor flange | Forgings | Spectacle Blind (spade and spacer) |
According to customer's requirement or drawing |
Standards |
ANSI B16.5 1/2"-24" | ANSI B16.47 "A"(MSS SP44) 26"-60" |
AWWA C207 4"-120" | ANSI B16.47 "B"(API 605) 26"-60" |
B16.36 1"-120" | BS 3293 26"-48" |
BS4504 1/2"-80" | DIN/ EN1092-1 1/2"-160" |
JIS/KS 1/2"-60" | API 590/B16.48 1/2"-24" |
Non-standard(customer's design) |
Material |
Carbon steel(A36, A105, A266, ST37.2, C22.8, S235JR, S275JR, S355JR) |
Plate material(A515 Gr60/70,A516 Gr60/70,A285GrA B C,A240 304,A240 316) |
Low Temp Carbon steel (A350 LF2 ,A350 LF3) |
High Yield Carbon steel (A694 F42/F46/F52/F56/F60/F65/F70) |
Stainless steel (A182 F304/L, F304H, F316/L, F321) |
Low alloy steel (A182 F1, F5,F9,F11, F12, F22) |
Duplex stainless steel (A182 F51/UNS 31803 , F53/UNS 32750, F55) |
Certificate |
ISO9001, TUV, PED 97/23/EG |
Specifications
1)ANSI B16.5 WNRF FLANGE
2)Stainless steel
3)Standard Package
4)Bulding material
5)ISO Certificate
ANSI B16.5 CLASS 150, 300, 600, 900, 1500, 2500, WNRF FLANGE, A105 flange
WELDING NECK FLANGE, WNRF FLANGE
supply CLASS 150#, CLASS300#, CLASS600#, CLASS900#, CLASS1500#, CLASS 2500#, WELDING NECK FLANGE, WNRF FLANGE, WN RTJ FLANGE, STD, SCH40, SCH80, SCH160, XS, ASME B16.5, Monthly output 3000Ton.
Norms & Types
1) CLASS 150 WELDING NECK FLANGE RF, WNRF FLANGE, WN RTJ FLANGE, 1/2" - 48", ANSI B16.5/ANSI B16.47, A105/A105N.
2) CLASS 300 WELDING NECK FLANGE RF, WNRF FLANGE, WN RTJ FLANGE, 1/2" - 48", ANSI B16.5/ANSI B16.47, A105/A105N.
3) CLASS 600 WELDING NECK FLANGE RF, WNRF FLANGE, WN RTJ FLANGE, 1/2" - 48", ANSI B16.5/ANSI B16.47, A105/A105N.
4) CLASS 900 WELDING NECK FLANGE RF, WNRF FLANGE, WN RTJ FLANGE, 1/2" - 48", ANSI B16.5/ANSI B16.47, A105/A105N.
5) CLASS 1500 WELDING NECK FLANGE RF, WNRF FLANGE, WN RTJ FLANGE, 1/2" - 48", ANSI B16.5/ANSI B16.47, A105/A105N.
6) CLASS 2500 WELDING NECK FLANGE RF, WNRF FLANGE, WN RTJ FLANGE, 1/2" - 48", ANSI B16.5/ANSI B16.47, A105/A105N.
Material
1) Carbon Steel A105 & Stainless Steel SS304, SS316, SS316L
Surface Antirust:
Surface antirust 1: Antirust light oil
Surface antirust 2: Black paint coating
Surface antirust 3: Yellow paint coating
Surface antirust 4: Galnavized (Hot Dipped Galvanized or Cold Galvanized or Electro Galvanized)
Surface Finish:
Surface finish 1: Stock finish
Surface finish 2: Sprial serrated
Surface finish 3: Two or three grooves (Water Lines)
Surface finish 4: Smooth finish
Terms
1) Payment: Irrevocable L/C at sight or T/T, D/P
2) Delivery term FOB China Port or CIF Buyer's Port
3) Packing: Plywood Pallet
4) Minimum Order Quantity: 1Pcs.
C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.
Our production scope:
Butt weld Fittings:
Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312
Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc
Forged fittings: THREADED/SOCKET WELD
ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83
ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT
Flanges: ASME/ANSI/API JIS, DIN, EN/BS
Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,
We are also offering our customer a total soluation for the whole piping material packages
Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.
For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
