| Prod Model: |
Ta100-125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Trade Mark: |
Hengtai Gearbox |
| Gear Arrangement: |
Shaft Mounted Speedbox |
| Mounting Position: |
Shaft Mounted |
| Output Torque: |
180nm-17000 N.M |
| Rated Power: |
0.92-226 Kw |
| Transmission Ratio: |
5- 31 |
| Input Speed: |
500-1400 Rpm |
| Output Speed: |
15.1-280 Rpm |
| Color: |
Ral 5010& 7031& 7040 |
| Type: |
Circular Gear |
| Manufacturing Method: |
Cast Gear |
| Toothed Portion Shape: |
Bevel Wheel |
Product Description

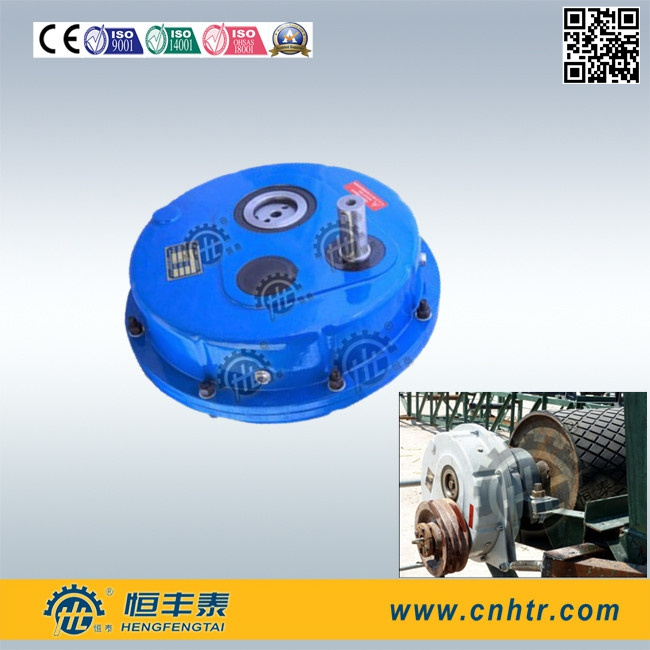

Backstop With Torque Arm Ta100-125 Ratio 20/1 Output Shaft 125mm Hollow
The Hxg Round Shaft Mounts are available in 10 sizes: 30, 35, 40, 45, 50, 60, 70, 80, 100, 125 with power ratings of upto 156 kW at 45 RPM
Hxg 30 - Bores 30 mm
Hxg 35- Bores 35 & 40 mm
Hxg 40 - Bores 40 & 45 mm
Hxg 45 - Bores 45, 50 & 55 mm
Hxg 50 - Bores 50, 55 & 60 mm
Hxg 60 - Bores 60 & 70 mm
Hxg 70 - Bores 70 & 85 mm
Hxg 80 - Bores 80 & 100 mm
Hxg 100 - Bores 100 & 125 mm
Hxg 125 - Bores 125 & 135 mm
Power Transmission Shaft Mounted Gearbox for speed reduction is a shaft mounted gearbox which can be optionally fitted with an anti-runback device except for HXG30. This power transmission shaft mounted gearbox is wildly used in power transmission fields such as agriculture, telecommunications industry, food industry, tobacco industry, automotive industry, cement industry, mining industry, tourism industry and so on.
Description
· CASE MATERIAL IS GG20 CASTING MATERIAL
· CASE HAVE MORE STRENGTH AND ESTHETIC VIEW
· PLACE FOR BEARINGS ARE MACHINED ACCORDING TO STANDARDS
· LONG LIFE CYCLE IS CONSIDERED FOR SELECTING BEARINGS
· GEARS MATERIAL IS SAE 8620 FORGING MATERIALS AND ISOTHERMIC TEMPERING IS APPLIED
· CARBURIZING IS APPLIED ACCORDING TO MODULE OF GEARS AND ADJUSTING HARDNESS DEPTH
· GRINDING AND SCRAPING ARE APPLIED TO GEARS
· SHAFT MATERIAL IS SAE 1050 STEEL AND TOLERANCES ARE ADJUSTED ACCORDING TO STANDARD NORMS
About "HENGTAI REDUCER" GROUP
Company name: ZHEJIANG HENGFENGTAI GEARBOX MFG. CO., LTD
Founding year: 1991
Quantity of employees: 400 employees
Factory square: 50000 square meters
Annual output: Over 420 Million RMB
Annual production capability: 600, 000 sets
Applications:
Hengfengtai Gearbox Reducer MFG Co., Ltd founded in 1991 with 400 employees occupy 50000square meters factory.
1.Company Profile
Hengfentai was established in 1991, with the development of more than 20 years, we have accomplished the following achievements:
R&D:Participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.
Factory Scale:Currently 2 factory plants:Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.
Turnover of last year:60m USD
2.Technology
Hengfengtai is certified State High-tech Enterprise
Enterprise Technique Center of Zhejiang province
Applying ERP information management, CAD, PRO/E, UG, CFD etc advanced software are widely used in drawing craft, and PDM for technique files management to keep the designing safe, high efficiency and accuracy.
Good long-term relationship with Zhejiang University, Shenyang aluminum & magnesium Design Institute, and Zhengzhou Light Metal Research Institute etc.
3.Manufacture capacity
350 personnel in Production Department, among them, 5 senior technicians, 10 junior technicians, and 82 have professional operation certificate.
2 manufacture plants with area more than 50000 square meters.
More than 300sets of advanced imported equipments:German CNC, Hobbing Machine, Grinding Machine, CNC plane mill, CNC boring machine, and CNC lathe machine etc.
4.Quality Control System
ISO 9001-2000 Certificate
ISO 14001 Certificate
GB/T 28000 Certificate
CMM Inspection on each batch of gears
Gear Inspection Center
Material Inspection Lab
Trial Run Inspection
Leakage Inspection
And etc
5.Marketing Network
10 offices and branches at home and abroad.
50 sales manager service for domestic and abroad market.
Depends on the quality products and reliable services, 10, 000 customers at home and abroad have approved Hengfengtai products and brand meaning, established steady foundation with 5000 strength-oriented enterprises, products have exported to at least 30 different countries in the world from Asia, Europe and Africa.
