| Prod Model: |
FT-007 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Machine Tool&Accessories |
Product Description

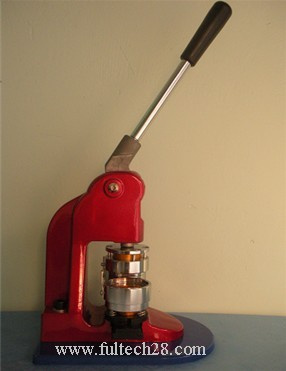

The badge(medal) making machine can produce difference sizes of Pin Buttons, Rope Ties, Key Holders, Character Holder, Mirror Key Holders, Open Buttons, Photo Cards, Flash Cards and so on, as long as the purchase of different molds. It is easy to learn and high efficiency. You can print directly your own photos, the stars or cartoon characters which are your favourite photos, and make personalized, fashion decorations. We also supply a combination including button-making techniques, equipment and materials for the users who haven't touched this business.
Features:
1. Small size, light weight, no need power;
2. Simple to install and operate, easy to learn;
3. Fast production, high yield;
4. Secure and durable, low failure rate, without professional maintenance;
5. Extensive application;
Parameters:
1. Operation way: Manual;
2. Machine Material: Cast iron and injection;
3. Inner diameter of molds: 25mm, 32mm, 44mm, 58mm, 75mm;
4. Achieve rate: 3000~5000/day;
5. Net weight of machine: 3.8Kg;
6. Size of machine: 165× 280× 520mm;
Following are the configurations which making buttons process need
One computer;
One printer;
Equipment: One Badge making machine + mold;
Badge paper cutter;
A set of materials: Tinplate lid, transparent film, plastic base(or tinplate base), pin, etc.
Notes: Users can configure 1, 2 by yourself at your local place which can save your time and money, and 3, 4 are special equipment and materials, our company prepares for you. A badge machine can replace different molds to produce all kinds of badges.
Operations
Input pictures or photos to the computer using the scanner or digital camera, and design, modify pictures in computer. Then print pictures on paper using ordinary ink by color ink-jet printer.
Crop the picture with a circle cutter, the picture should be cut into circle using the tool such as a compass according to the size of the badge to be made, and it is slightly larger than the badge.
Install the upper and lower mold to the rack of the machine.
Put on the tinplate lid, the picture, the transparent film and the plastic base(tinplate base) with pin by turns.
Adjust the location of mold.
Press down the machine handle until the upper and lower of mold can be folded.
Remove the finished badge, and the color image printed on paper can be stamped to the badges.
Note: For the badge mould, badge material and the badge paper cutter, we have five size for each item: 25mm/32mm/44mm/58mm/75mm.
