Bearing Stand Type Cam Follower

Prod Model:	cam follower bearing
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bearing Type:	Stand Type Cam Bearing
Bearing Name:	Tjgh
Bearing Row No.:	Single Row
Precision Rating:	High Precision
Bearing Material:	Bearing Steel/Chriome Steel/ Stainless Steel
Bearing Seal Type:	Sealed or Unsealed
Bearing Cage:	Steel Cage
Lubrication:	Oil or Grease
Hardness:	HRC60-65
Bearing Application:	Elevatorm, Conveyor System, Lifting etc.
Rolling Body:	Roller Bearings
The Number Of Rows:	Multi-column
Outer Dimension:	Small and Medium-Sized (',60-115mm)
Material:	Bearing Steel
Load Direction:	Thrust Bearing
Separated:	Unseparated

Product Description

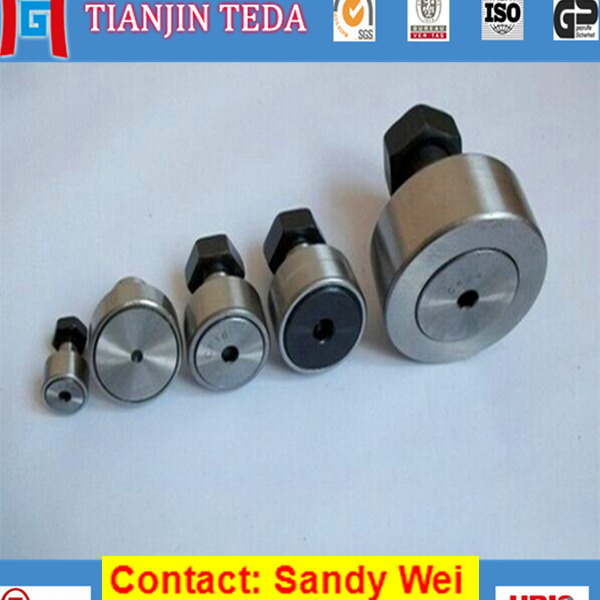

Stand Type Cam Follower Bearings

Contact: Ms Sandy Wei,

Cam Follower Bearings are also referred to as track follower. They are designed to follow a sliding or rotating piece (cam) and they use rollers or needles as the rolling elements. Cam Follower Bearings are therefore able to replicate a specific motion because they are highly versatile. They have thick-walled outer rings that run on a track. They are used to minimize distortion and bending stress while facilitating high load carrying capacity.Generally speaking, cam follower bearings are designed in different configurations and special structures can be designed according to the task requirements.

Stud Style
Stud style cam follower bearing has one end plate integrated into the inner race (stud) and the other pressed onto the stud unto a shoulder on the inner race. Both ends of the stud have holes for lubrication and the inner race is induction hardened to maintain some degree of softness in case some modification is required.



Bearing Number	Dimensions(mm)											Load ratings(kgf)
												Dynamic	Static
	d	D	S	B	B1	L	d1	d2	ι	ι 1	r	Cr	C0
KR10	3	10	M  3x0.50	7	8	17	-	-	5	-	0.3	130	72
KR12	4	12	M  4x0.70	8	9	20	-	-	6	-	0.5	190	120
KR13	5	13	M  5x0.80	9	10	23	3.1	-	7.5	-	0.5	280	180
KR16	6	16	M  6x1.00	11	12	28	4	-	9	-	0.5	330	240
KR19	8	19	M  8x1.25	11	12	32	4	-	11	-	0.5	390	300
KR22	10	22	M10x1.25	12	13	36	4	-	13	-	1	430	370
KR26	10	26	M10x1.25	12	13	36	4	-	13	-	1	430	370
KR30	12	30	M12x1.50	14	15	40	6	3	14	6	1.5	710	620
KR32	12	32	M12x1.50	14	15	40	6	3	14	6	1.5	710	620
KR35	16	35	M16x1.50	18	19.5	52	6	3	18	8	1.5	1040	1090
KR40	18	40	M18x1.50	20	21.5	58	6	3	20	10	1.5	1410	1690
KR47	20	52	M20x1.50	24	25.5	66	8	4	22	12	1.5	1940	2350
KR52	20	47	M20x1.50	24	25.5	66	8	4	22	12	1.5	1940	2350
KR62	24	62	M24x1.50	29	30.5	80	8	4	25	12	1.5	2600	3050
KR72	24	72	M24x1.50	29	30.5	80	8	4	25	12	1.5	2600	3050
KR80	30	80	M30x1.50	35	37	100	8	4	32	15	2	3470	5350
KR85	30	85	M30x1.50	35	37	100	8	4	32	15	2	3470	5350
KR90	30	90	M30x1.50	35	37	100	8	4	32	15	2	3470	5350

Materials of cam follower bearings
Needle roller: Gcr15, quench-hardening HRC60-65
Rings:Gcr15
Cage:Low-carbon steel or reinforced nylon
Both the stud and yoke cam followers have an outer diameter that may either be cylindrical or crowned. The crowned. The crowned ones are often used in turntable type applications because they help reduce skidding.

Feature

- Smaller cross-section leading to greated rigidity,higher load-carrying capacity & lower inertia of the needle roller bearings help size and weight reductions in machinery.

- Though they are less wide,their load carrying capacity is high and is most suitable for applications where the load is high & the radial space is less.

- Needle roller bearings,which are designed to withstand oscillation can operate under severe conditions & interchange with sliding bearings.

Application:
(1) agricultural machinery, tractors, planter, harvesting machinery and so on.
(2) the heavy mining machinery, metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial and mining vehicles, cement equipment, etc.
(3) engineering machinery forklift, shoveling transport machinery, compaction machinery, concrete machinery, etc.
(4) petrochemical general machinery, petroleum machinery, oil machinery, chemical machinery, pump, blower, valves, gas compressor, refrigeration and air conditioning machinery, paper machinery, printing machinery, plastic processing machinery, pharmaceutical machinery, etc.
(5) the electrical machinery, power machinery, transformers, motors, high and low pressure switch, wire and cable, battery, electric welding machine, household appliances, etc.
(6) machine tools, metal cutting machine tools, forging machinery, casting machinery, woodworking machinery, etc.
(7) car, truck, road buses, cars, modified cars, motorcycles, etc.
(8) instruments: automation instrument, electrical instrumentation, optical instruments, composition analyzer, automotive instrumentation, dianliao equipment, electronic equipment, cameras, etc. Based machinery
(9) bearings, hydraulic parts, seals, powder metallurgy products, standard fasteners, industrial chain, gear, mold, etc.
(10) packaging machinery, packaging machine, packing machine, conveyor, etc.
(11) environmental protection machinery, equipment, equipment for the control of air pollution prevention and control of water pollution, solid waste treatment equipment such as mill professional special bearing, gear box, reducer special bearing.


More bearings we can supply:

1, Auto bearings,;
2, Deep groove ball bearings;
3, Cylindrical Roller Bearings,;
4, Self-aligning Ball Bearings;
5, Spherical Roller Bearings;
6, Angular Contact Ball Bearings;
7, Linear Bearings;
8, Thrust Ball Bearings;
9, Taper Roller Bearings;
10, Pillow block Bearings;
11, Needle Roller Bearings;
12, Cross bearing;
13, Thrust Roller bearing;
14, Rod End Bearing and Slewing Bearing;
15, linear guide and etc.

Method of extending the bearing's lifetime:
1. The installation is correct, that affects precision, life, performance. And fill the bearing with lubricant after installation.

2. Don't allow strong impact, such as hammer striking, transfer roller pressure

3. Use the accurate installation tool, avoid to use cloth kind and short fibers

4. Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer

5. General inspection, such as the surrounding temperature, vibrate, noise inspection

6. Keep bearing cleaning from dirt, dust, pollutant, moisture.

7. Bearing should not be ultra cooled.
