| Prod Model: |
tail pulley |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001, SGS, Bureau Veritas |
| Application: |
Coal Mining Industry, Cement |
| Bearing: |
SKF, FAG, NSK, NTN, Hrb etc |
| Steel Pipe: |
Q235 |
| Specification: |
Customizable |
| Sample For Test: |
Available |
| Mining Object: |
Coal Machinery |
| Type: |
Handling Machinery |
| Material: |
45# Steel, Rubber and etc |
| Color: |
Available |
Product Description

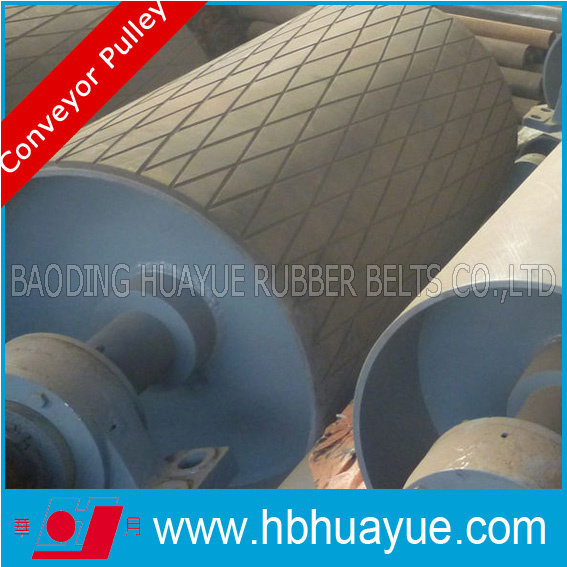

Belt conveyor steel tail pulley
Huayue Conveyor Pulley Specification:
1. Pulley Diameter: 250-1800mm.
2. Belt width: 300mm to 2400mm.
3. Length: Depend on the belt width.
4. Welding: Carbon dioxide arc welding, argon arc welding, electrode welding etc.; In accordance with AWS standard or substitute welding standard
5. Lagging: Cold lagging; Hot vulcanized lagging, ceramic lagging
6. Pulley tube material: Q235 seamless carbon steel.
7. Professional pulley production line.
8. Professional designing and inspection team.
9. Certification: ISO, BV, etc
Type of Conveyor Pulley:
Conveyor tail pulley
Conveyor head pulley
Conveyor rubber lagging pulley
Conveyor steel pulley
Conveyor driving pulley
Conveyor turnaround pulley
Pattern conveyor pulley
Conveyor pulley
Rubber conveyor pulley
Head pulley etc.
Conveyor Head Tail pulley:
Head pulley can be divided into driving pulley (head pulley) and thurn about pulley (tail pulley), driving pulley is the main part for transmitting the power: Smooth surface and rubber surface, and rubber surface can be classified into smooth rubber surface, herringbone rubber surface and diamond rubber surface to meet different technical requirements. Averting pulley can be classified into smooth rubber surface and smooth steel surface.
Construction
All the pulley adopt integrated bearing housing which is lubricated and filled with grease and has two kinds: Iron casting and steel casting, the shaft is made of 45#steel, the shell adopt weld assembly.
Our best quality based on:
Manufacturer
Experience in Cooperate with Fortune 500 Companies
Professional Engineering Capability
Stable Quality
Reasonable Price
Small Orders Accepted
Continuous Improvements
High Product Performance
Prompt Delivery
Professional Service
For more details, please inquiry us!
Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Sidewall conveyor belt (SW)
Steel Cord conveyor belt ( ST )
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (HR/ FR)
Cold Resistance conveyor belts, (CR)
Pattern conveyor belt ( 30+ Moulds)
Metal Mesh conveyor belt (Heat resistant temp until 800c)
Endless belts
Conveyor roller, idler
Conveyor Pulley, frame, bracket etc
| Type | Belt width (mm) | Standard Diameter(mm) | Length (mm) |
| Drive Head Pulley | 500 | 500 | Length of the pulley depends on
the belt width of the conveyor |
| 650 | 500, 630 |
| 800 | 500, 630, 800 |
| 1000 | 630, 800, 1000 |
| 1200 | 630, 800, 1000 |
| 1400 | 800, 1000 |
| Tail Pulley | 500 | 250, 315, 400, 500 |
| 650 | 250, 315, 400, 500 |
| 800 | 250, 315, 400, 500, 630, 800, 1000 |
| 1000 | 250, 315, 400, 500, 630, 800, 1000 |
| 1200 | 250, 315, 400, 500, 630, 800, 1000 |
| 1400 | 250, 315, 400, 500, 630, 800, 1000 |
Baoding Huayue Conveyor Co. Ltd, was funded in 1986, located in Rubber industry technical development park in Baoding city of North of China, is the major manufacturer of conveyor belt in China, Huayue conveyor belt has been famours brand around China and world wide such as United States, Russia, Philippines, UK, Chile etc., we can supply various conveyor belts such as Fire resistant conveyor belt, Heat-resistant conveyor belt, Cotton Conveyor Belt (CC), Nylon Conveyor Belt (NN), EP conveyor Belt, Steel Cord Conveyor Belt, Sidewall Conveyor Belt, wide Conveyor Belt, chevron Conveyor Belt. Refering to international advanced technology standared. We can make production according to your requirement.
In the other side, we have been updated ISO9001: 2000 certificate by SGS, and we are also the only Chinese manufacturer which has got the MSHA certificate(NO. 18-CBA050004/001). Our rubber conveyor series have also been awarded "certificates of high-quality products " issued by Quality Technical Ministry Department on Hebei province, Our products have been sold all over the world such as Russia, Ukraine, South Africa, Vietnam, Chile etc., and got warm reputation.
Our factory have labouratory for making sure the quality of products on the different production phase.
"Qulity first, credit and service" is our faith, striving for innovation, making perfect products is our goal for evermore, and sincerely welcome all friends from all over the world to come for visit and we are looking forward to have the cooperation with you in the future.
