| Prod Model: |
SRLW500/1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Plastic Turbo Mixer: |
Srlw500/1000 Hot/Cooling Mixer Unit |
| Total Capacity: |
500/1000l |
| Effective Capacity: |
375/640l |
| Motor Power: |
55/75/15kw |
| Spindle Speed: |
430/860/100rpm |
| Water Of Consumption: |
5t/H |
| Heating/Cooling Method: |
Self-Friction/Electric Heating |
| Discharge Method: |
Pneumatic |
| Weight: |
3, 600kg |
| Mixer Type: |
Powder Mixer |
| Working: |
High Speed Mixer |
| Application: |
Granules |
| Additional Capabilities: |
Drying |
Product Description
Brief Introduction for Longree Technolgoy
------Features and description
1. The upper set is for hotting, and the lower one is for cooling;
2. We also can use the variable-frequency motor as your needs;
3. Five parts included in this unit: Two containers, transmission agent, pneumatic components, cooling system and base structure.
4. The container:
A. The interior is made of stainless steel with polished finish;
B. The cover adopts aluminium alloy castings with inlet orifice and air exit hole, we also can produce it as your requirements;
C. The discharge hole is made of aluminium alloy; The valve is controlled in the force of pneumatic;
D. The paddle is made of stainless steel in the structure of top, center and bottom;
E. Temperature measuring equipment (TME) in the interior wall of the container;
-----More pictures for better understanding

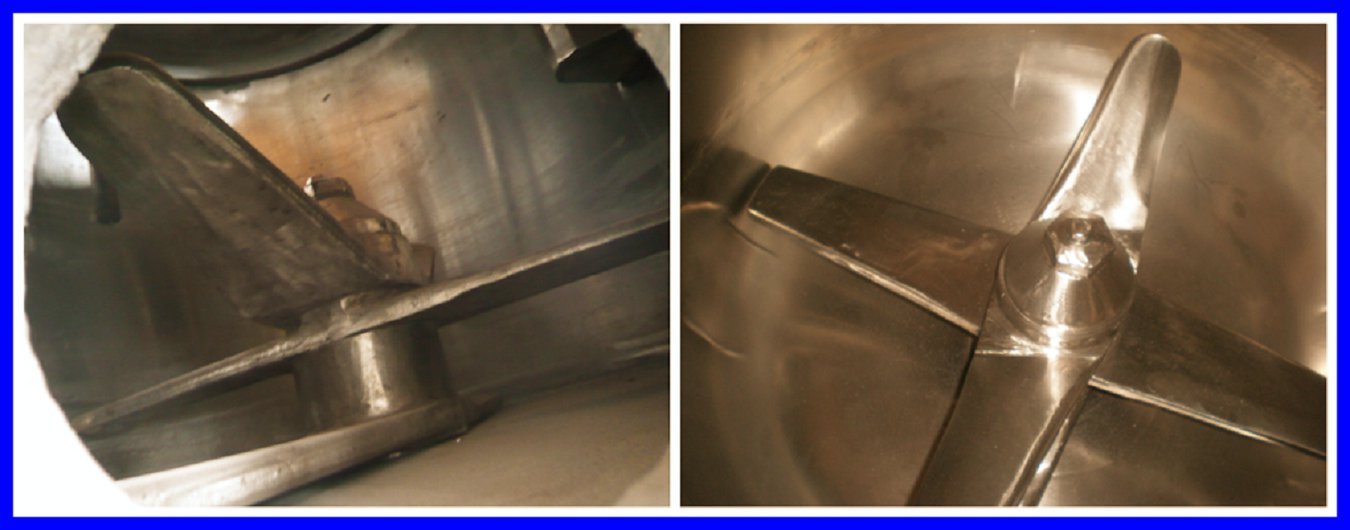

Remark: This picture shows the mixer blades, as a reliable company, we always produce them using high quality alloy steel to ensure longer using life. When you bought the mixer, we will give a blades for free as spare part.

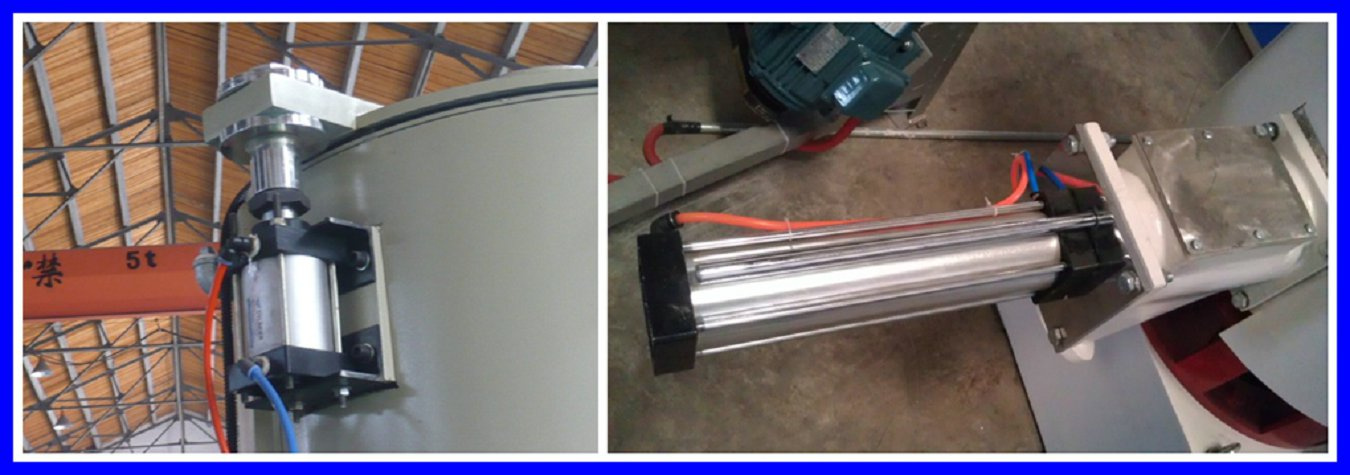

Remark: As we can see from this picture, the discharging way is Pneumatic and can be controlled by control panel. We guarantee cylinder quality for 12months.

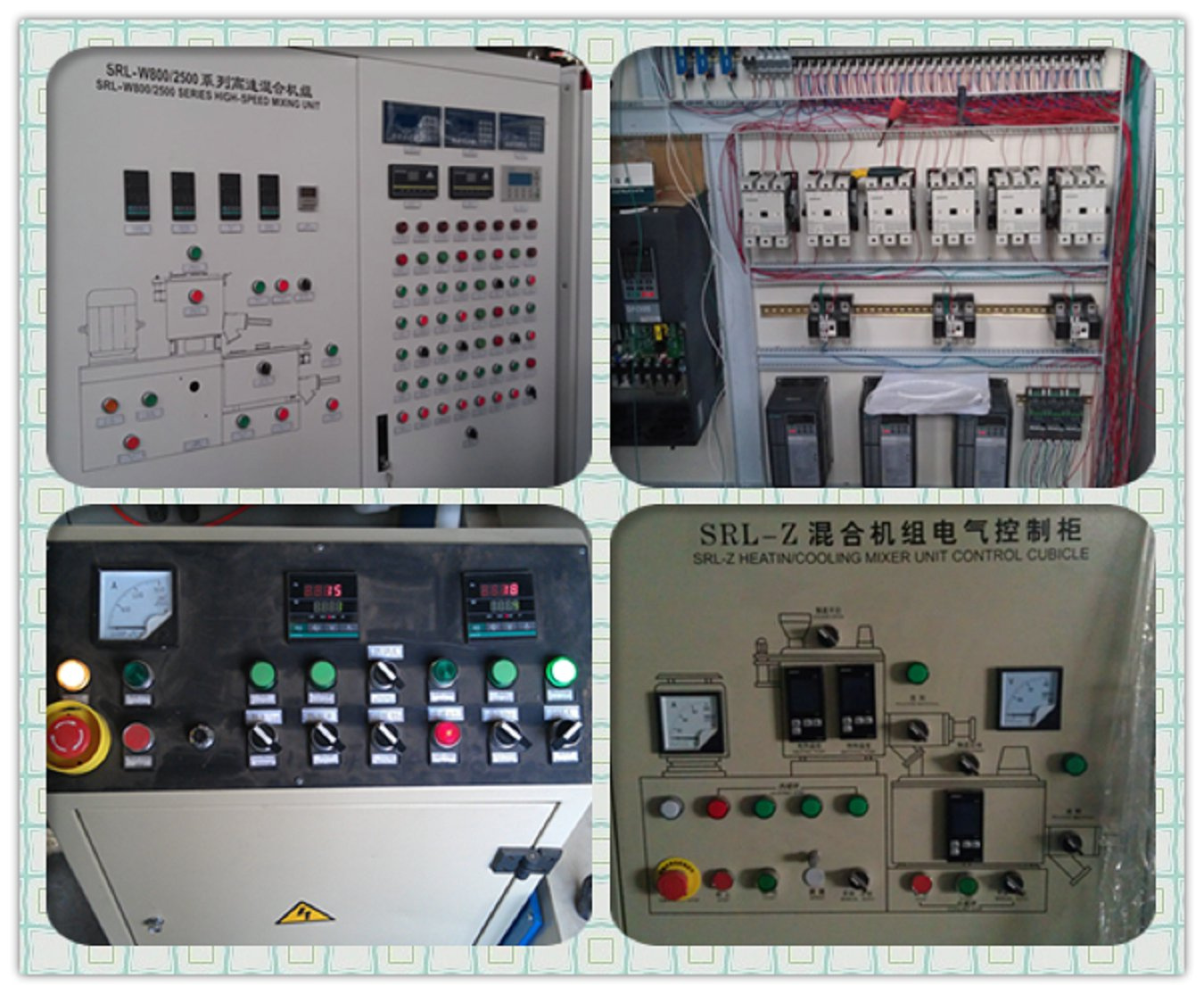

Remark: As we all know that the electrical parts are very important in mixing machine, so in our mixer equipments, most electrical part are imported, such like Siemens, ABB, RKC and hittach.
| model | Volume
(L) | Effective Volume
(L) | Motor P ower
(Kw) | Spindle S peed
(Rpm) | Heating
M anner | Discharge
M anner |
| SRL-Z50/100 | 50/100 | 35/70 | 7/11/5.5 | 750/1500/180 | Self-friction
or
electric heating
| pneumatic
|
| SRL-Z100/200 | 100/200 | 70/140 | 11/22/7.5 | 650/1300/150 |
| SRL-Z200/500 | 200/500 | 140/250 | 30/42/11 | 550/110/90 |
| SRL-Z300/600 | 300/600 | 210/420 | 40/55/11 | 475/950/90 |
| SRL-Z500/1000 | 500/1000 | 350/700 | 47/67/15 | 430/860/60 |
| SRL-Z800/1600 | 800/1600 | 560/1100 | 60/90/22 | 370/740/50 |
Zhangjiagang Longree Technology Co., Ltd. is one of the famous manufacturers of plastic mixing, extrusion, surface decoration and recycling machine.
Longree Technology is located in Zhangjiagang, Jiangsu Province, close to the international metropolis Shanghai, only 120km away from the Shanghai Pudong International Airport.
In our Longree group, there are plastic conveying-mixing, extrusion, surface decoration, recycling equipment manufacturing plants, crusher and pulverizer plant, professional screw manufacturing plant, screw gearbox manufacturing plant and a PC products plant( in Russia).
We can supply wide range of all kinds of plastic machinery. We have a strong technical team, experienced workers, and a professional after-sales team. All of these ensure our super quality, competitive price and satisfying after-sales service.
We continue to improve equipment performance based on customers' feedback. Now the Customer Satisfaction Rate is about 98%. Growing up together with the customers, with this development concept, Longree`s products not only have a big market in China, but also exported to: Moscow (Russia), Istanbul (Turkey), Dubai (UAE), Helsinki (Finland), Buenos Aires (Argentina), Brazil, (Cairo)Egypt, India and other countries and regions.
Our main products are as follows:
1 Extruder
2 Pipe production line
3 Profile production line
4 Sheet production line
5 Board production line
6 WPC production line
7 Granulation line
8 Recycling line
9 Mixer
10 Auxiliary machine
Welcome you to visit our Longree Group!
