| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
All |
| Working Pressure: |
High Pressure Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Impeller Number: |
Single-Stage Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
Product Description

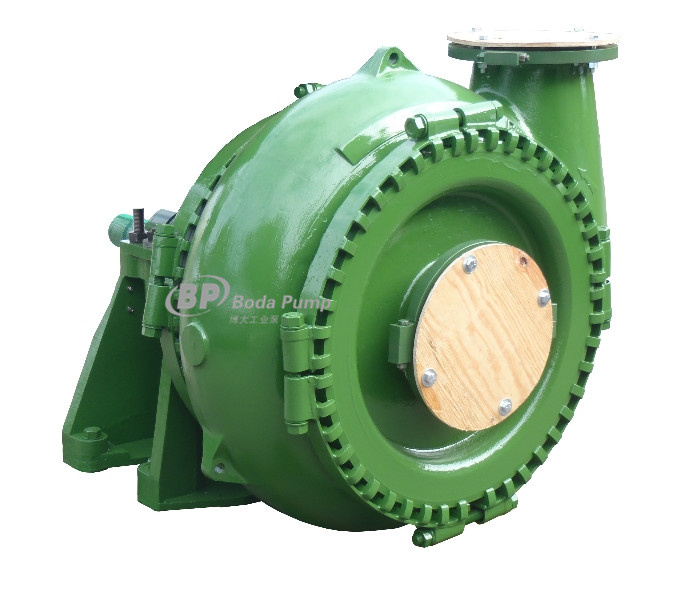

BG Series: Dredge and Gravel Slurry Pumps
Dimensionally interchangeable with G ® Series pumps.
Boda Slurry ® BG Series pumps are designed to handle very large particles for gravel and dredging operations. Boda Slurry ® Gravel pumps are designed for the continuous handling of the most difficult higher abrasive slurries, containing solids too large to be pumped by a standard slurry pump.

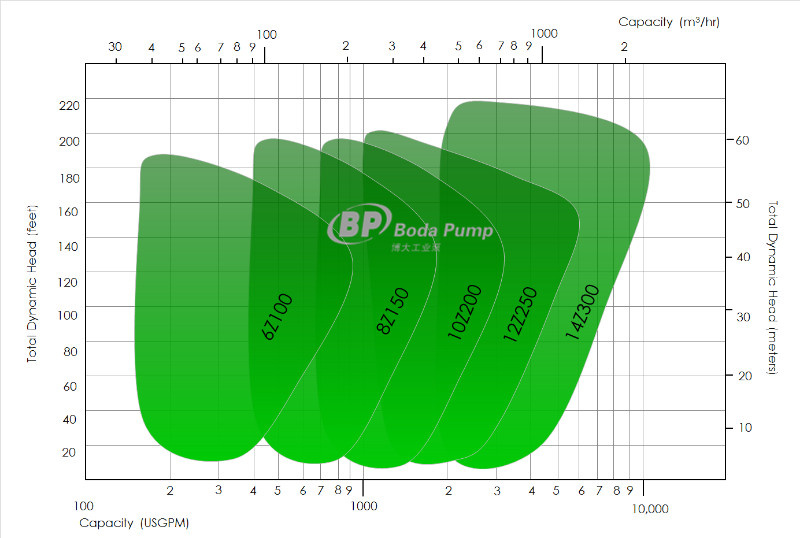

BG Series Profile:
- Discharge Diameters 4" to 12" (100mm to 300mm)
- Heads Through 230ft (70m)
- Flow rates Through 8,000gpm (4,100m3/h)
- Casing Pressure Tolerance 300psig (2,020kPa)
BG Series Features:
- These pumps are constructed of a single casing connected by means of clamps and a widened suction port
- WETTED PARTS
- IMPELLERS pump out vanes on rear and front (on closed impellers) reduce recirculation within pump, and aid in preventing seal contamination optional castings of straight or semi-Francis vanes (from 3 to 8 vanes on certain sizes) offer wider hydraulic options in single sizes
- NPSH - exceptional NPSHr conditions due to large impeller eyes
- LARGE PARTICLES - large eye openings and vane passages allow for the largest particle flows of any Boda Slurry® pump
- SEALS Boda offers a wide variety of seal options to suit any process requirements
- EXPELLER (CENTRIFUGAL SEAL) available with low flow water flush or zero flow (grease lubricated) options to provide exceptional sealing where water introduction to the seal is intolerable or limited
- STUFFING BOX gland sealing with packing and lantern ring
- SCHURCO LOW-FLOW SEAL Boda® offers a variety of low-flow seals, which can significantly reduce water usage in the stuffing box the low-flow seal systems can be applied in a variety of applications using several material and component options
- BEARING ASSEMBLY all bearings assembled with highest quality tapered roller bearings in controlled environments to prevent lubricant and housing contamination oversized shaft diameters and reduced overhang in the wet end contribute to long life and reliability in the field
- BASE a single piece base with integrated adjustment mechanism for impeller clearance within pump bearing assembly locks into base using four heavy-duty bolts three custom designed mounting modes available: overhead using integrated single pedestal system, side-by-side with adjustable motor mount, and direct-coupled with precision in-house alignment (optional VFD packages available)
Typical BG Series Applications:
Heavy Mining Explosive Sludge In Metal Smelting River And Pond Dredging Heavy Refuse Removal Larger Particle Or Low NPSHA Applications
