| Prod Model: |
JL-KGPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008, CE, SGS |
| Feature: |
Energy Saving, High Efficiency |
| Package: |
Plywood Case |
| Warranty: |
1 Year |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Place Style: |
Horizontal |
| Manufacturing Level: |
A |
| Media: |
Steam and Water |
| Burning Style: |
Electric Heating |
| Pressure: |
Low Pressure |
| Usage: |
Industrial |
| Fuel: |
Electric Heating |
Product Description

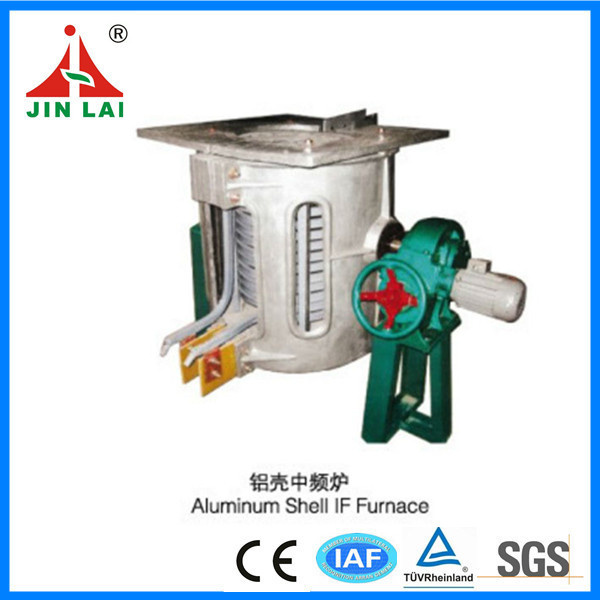

Big Capacity KGPS Aluminum Shell Melting Unit
Product Description
Overview and Application:
Medium frequency induction melting furnace is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting. It's applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel sliver and other ferrous or nonferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
Performance and features:
Zero-voltage scanning soft start, start or stop at any time under any state without impact on power supply;
Rapidly melting, low production cost, low pollution, conforming to environmental protection requirement;
Melting directly from low temperature, available for fully emptying of solution, easy change of melting material;
Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
Furnace shell with cast aluminum ally or steel construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
Adapt angle of the inverter automatic adjustment circuit design, automatically match the load impedance, keep the equipment running in good working condition without adjusting the compensation capacitance, automatically diagnose error and easy to maintenance.
|
Medium Frequency Induction Heating Machine |
Model NO.
( capacity ) |
Input power ( 50/60HZ) |
|
Water consumption ( Ton/hour ) |
Power/Ton ( KW/H) |
|
|
power (KW) |
Input voltage (V) |
current
(A) |
Direct current (A) |
Direct voltage (V) |
MF voltage (V) |
MF frequency (KHZ) |
steel |
iron |
Red copper |
brass |
aluminum |
Melting time(minute/furnace) |
|
JL-KGPS--0.1T |
100 |
380 |
160 |
200 |
500 |
750 |
1-2.5 |
5-10 |
800 |
750 |
450 |
400 |
580 |
30-70 |
|
JL-KGPS--0.25T |
160 |
380 |
256 |
320 |
500 |
750 |
1-2.5 |
5-10 |
750 |
700 |
440 |
380 |
550 |
30-70 |
|
JL-KGPS--0.3T |
200 |
380 |
320 |
400 |
500 |
750 |
1-2.5 |
5-10 |
700 |
650 |
430 |
380 |
530 |
35-60 |
|
JL-KGPS--0.5T |
400 |
380 |
640 |
800 |
500 |
750 |
1-2.5 |
10-30 |
650 |
600 |
430 |
370 |
500 |
40-60 |
|
JL-KGPS--0.75T |
500 |
380 |
800 |
1000 |
500 |
750 |
1-2.5 |
10-30 |
630 |
580 |
420 |
350 |
460 |
40-70 |
|
JL-KGPS--1T |
800 |
380 |
1280 |
1600 |
500 |
750 |
0.7-1 |
10-30 |
600 |
560 |
410 |
340 |
440 |
40-70 |
|
JL-KGPS--1.5T |
1200 |
380 |
1920 |
2400 |
500 |
750 |
0.7-1 |
20-50 |
580 |
530 |
400 |
330 |
420 |
45-80 |
|
720 |
1010 |
1260 |
950 |
1650 |
40-70 |
|
JL-KGPS--2T |
1500 |
720 |
1263 |
1578 |
950 |
1200 |
0.5-1 |
20-50 |
560 |
520 |
400 |
330 |
410 |
40-85 |
|
950 |
960 |
1200 |
1200 |
1650 |
40-75 |
|
JL-KGPS--3T |
2000 |
720 |
1600 |
2150 |
500 |
1200 |
0.5-1 |
30-60 |
530 |
510 |
400 |
330 |
410 |
40-85 |
|
950 |
1280 |
1684 |
1200 |
1650 |
45-75 |
|
JL-KGPS--5T |
3000 |
|
|
|
|
|
0.3-1 |
30-60 |
510 |
490 |
400 |
330 |
410 |
|
|
1000 |
1850 |
2280 |
1315 |
1850 |
45-85 |
|
JL-KGPS--10T |
5000 |
1000 |
2130 |
2660 |
1315 |
1850 |
0.3-1 |
50-100 |
500 |
470 |
400 |
330 |
410 |
45-85 |
|
Interior temperature :1. steel 1650°C 2. iron 1450°C 3. red copper 1150 °C 4. brss 950 °C 5. aluminum |
