Prod Model: |
HB9 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Density: |
6.0g/cm3 |
Size: |
Diam80*Thickness2mm |
Method Of Moulding: |
Thermal Casting/Drying Press/Extrusion |
MOQ: |
5PCS |
Application: |
Insulating Varnish |
Type: |
Insulation Sheet |
Material: |
Ceramic |
Chemistry: |
Wear Resistance |
Thermal Rating: |
1000c |
Maximum Voltage: |
220V |
Color: |
Black |
Brand: |
Hb |
Product Description

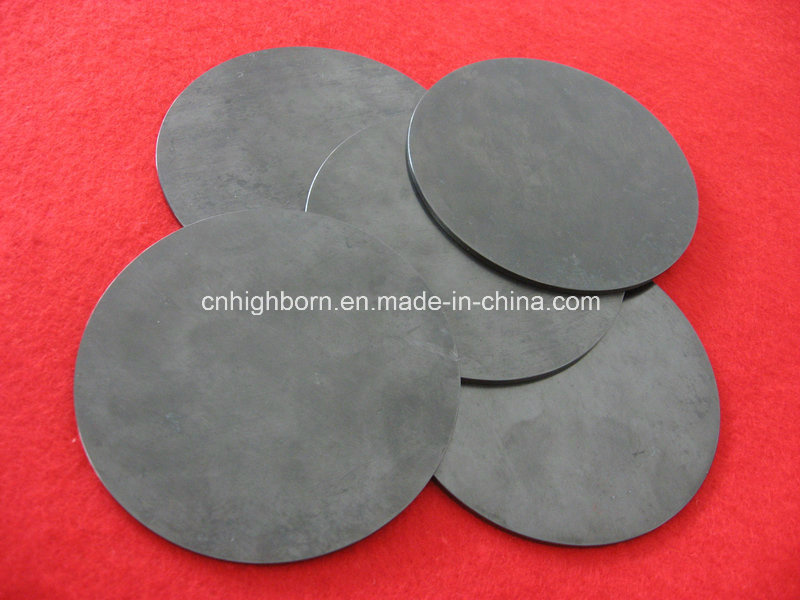

Zirconia Ceramic substrate, alumina wafer, alumina substrate
Material:
a) 95%, 99%, 99.5% Al2O3, zirconia ceramic
b) Design as per your needs
1. material: ALUMINA CERAMIC, zirconia ceramic etc.
2. method of moulding: thermal casting/drying press/extrusion
3. colour: white/light yellow
4. sintering temperature: 1580c
5. surface finish:Ra0.4 &SIM RA 0.8&mum etc, upon your requirement.
6. package: packing with carton and ship with wooden box.
7. we can produce them by your molds or te drawings you require.
8. minimum order: 5pcs
MATERIAL PROPERTIES
| Unit | 95% Al2O3 | 99% Al2O3 | ZrO2 | GP-Si3N4 |
Color | - | white | ivory | white | gray |
Density | g/cm³ | 3.65 | 3.88 | 5.95 | 3.22 |
Water Absorption | % | 0 | 0 | 0 | 0 |
Young's Modulus | Gpa | 280 | 350 | 205 | 295 |
Vickers Hardness | Gpa | 14 | 20 | 12 | 18-20 |
Flexural Strength ( at R.T. ) | Mpa | 280 | 300 | 900 | 650 |
Compressive Strength ( at R.T. ) | Mpa | 2000 | 2500 | 2200 | 2200 |
Thermal Conductivity ( at R.T. ) | W/(m.K) | 18-25 | 30 | 2.2 | 25 |
Thermal Shock Resistance | ΔT(°C) | 220 | 180-200 | 280-350 | 450-650 |
Max. Working Temperature ( at R.T. ) | °C | 1500 | 1700 | 850 | 1200 |
Volume Resistivity ( at R.T. ) | Ω.cm | >10^15 | >10^14 | >10^12 | >10^14 |
Dielectric Constant (1 MHz at R.T. ) | - | 9.50 | 9.80 | 26 | 8.20 |
Dielectric Strength | kV/mm | 16 | 22 | - | 16 |
