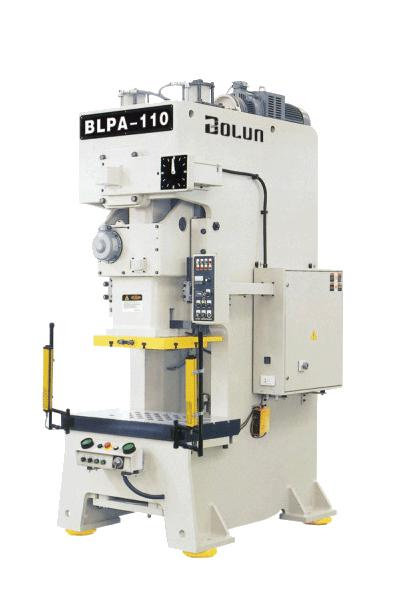

BLPA25-260T SERIES HIGH PRECISION COMPACT POWER PRESS
BLPA is widely used for pasts pressing and forming in the fields of electronic, household electric appliance, furniture, communication fools and vehicles(automobile, motorcycles, bikes)and Hardware etc.
Main Properties
High rigidity
1. High rigidity and precision frame, use welding steel sheet with hot-treatment, eliminated the internal stress of the press machine.
2. The structural parts have proportional loading and balanced rigidity.
High precision with high stadbility
The friction areas of crankshaft, gear, gear shaft etc. Are hardening hot-treated, then grinding processed, So having high wearesisting and balancing performance with stable functions.
Safe and reliable operation
High sensitive clutch/braking device added international-level twin-body electromagnetic valve and over-loading protection device can guarantee the sliding boards running and stop with high precision and safe performance.
Automatic processing with force saving
Can epuipped with any automatic transmission equipment for automatic production, reduce cost, promote efficiency.
Balanced center of gravity
1. The transmission center and the integral center of this machine approach same one, can guarantee the precision and reliability for press machine.
2. This machine uses two-supporting sliding board balancer to guarantee the machine running smoothly and evenly.
Adjusting system of Sliding boards
In high speed operation, the adjustable precision is 0.1mm, so safer and quicker in production.
Environment protection
Advanced design idea, low noise, save energy.
|
Basic Data |
BLPA-25 |
BLPA-35 |
BLPA-45 |
BLPA-60 |
BLPA-80 |
BLPA-110 |
BLPA-160 |
BLPA-200 |
BLPA-260 |
|
|
V |
H |
V |
H |
V |
H |
V |
H |
V |
H |
V |
H |
V |
H |
V |
H |
V |
H |
|
Capacity (ton) |
|
25 |
35 |
45 |
60 |
80 |
110 |
160 |
200 |
260 |
|
Rated tonnage point (mm) |
|
3.2 |
1.6 |
3.2 |
1.6 |
3.2 |
1.6 |
4 |
2 |
4 |
2 |
6 |
3 |
6 |
3 |
6 |
3 |
7 |
3.5 |
|
Stroke Per Minute |
Speed changing (spm) |
140(60) |
200(130) |
120(40) |
180(110) |
100(40) |
150(100) |
90(35) |
120(80) |
80(35) |
120(80) |
60(30) |
90(60) |
50(20) |
70(40) |
50(20) |
70(50) |
40(20) |
50(40) |
|
stable Speed (spm) |
110 |
85 |
75 |
65 |
65 |
50 |
35 |
35 |
30 |
|
Stroke (mm) |
|
70 |
30 |
70 |
40 |
80 |
50 |
120 |
60 |
150 |
70 |
180 |
80 |
200 |
90 |
200 |
100 |
250 |
150 |
|
Die Height (mm) |
|
195 |
215 |
220 |
235 |
250 |
265 |
310 |
340 |
340 |
380 |
360 |
410 |
460 |
510 |
460 |
510 |
500 |
550 |
|
Slide Adjustment (mm) |
|
50 |
55 |
60 |
75 |
80 |
80 |
100 |
110 |
120 |
|
Bolster Area (mm) |
|
680× 300× 70 |
800× 400× 70 |
850× 440× 80 |
900× 500× 80 |
1000× 550× 90 |
1150× 600× 110 |
1250× 800× 140 |
1400× 820× 160 |
1500× 840× 180 |
|
Slide Ared(mm) |
|
300× 220× 50 |
360× 250× 50 |
400× 300× 60 |
500× 360× 70 |
560× 420× 70 |
650× 470× 80 |
700× 550× 90 |
850× 630× 90 |
950× 700× 100 |
|
Shank Hole (mm) |
|
φ 38.1 |
φ 38.1 |
φ 38.1 |
φ 50 |
φ 50 |
φ 50 |
φ 65 |
φ 65 |
φ 65 |
|
Main motor (kwxp) |
|
VS 3.7× 4 |
VS 3.7× 4 |
VS 5.5× 4 |
VS 5.5× 4 |
VS 7.5× 4 |
VS 11× 4 |
VS 15× 4 |
VS 18× 4 |
VS 22× 4 |
|
Slide Adjust Device |
|
manual operation |
manual operation |
manual operation |
manual operation |
electrical driving |
electrical driving |
electrical driving |
electrical driving |
electrical driving |
|
Air Pressure Kg/cm2 |
|
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
Presses Precision |
|
GB(JIS)1 |
GB(JIS)1 |
GB(JIS)1 |
GB(JIS)1 |
GB(JIS)1 |
GB(JIS)1 |
GB(JIS)1 |
GB(JIS)1 |
GB(JIS)1 |
|
Presses Dimdnsion (mm) |
|
1280× 850× 2200 |
1380× 900× 2400 |
1600× 950× 2500 |
1600× 1000× 2800 |
1800× 1180× 3000 |
1900× 1300× 3200 |
2300× 1400× 3800 |
2615× 1690× 4075 |
2780× 1850× 4470 |
|
Presses Weight (ton) |
|
2.1 |
3 |
3.8 |
5.6 |
6.5 |
9.6 |
16 |
23 |
32 |
|
Die cushion capacity(ton) |
|
|
2.3 |
2.3 |
3.6 |
3.6 |
6.3 |
10 |
14 |
14 |
|
Stroke(mm) |
|
|
50 |
50 |
70 |
70 |
80 |
80 |
100 |
100 |
|
Die cushion effective area(mm 2 ) |
|
|
300× 230 |
300× 230 |
350× 300 |
450× 310 |
500× 350 |
650× 420 |
710× 480 |
810× 480 |
