| Prod Model: |
Bracket |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Molding Process: |
Resin Sand/Green Sand |
| Molding: |
Hand Molding/Molding Machine Z145/146/148/Molding |
| Possible Heat Treatment: |
Annealing |
| Industry Involved: |
Municipal Construction / Fluid /Automotive |
| Part Unit Weight Range: |
0. 5kg-2000kgs |
| Max/Min Wall Thickness Requirements: |
4mm-250mm |
| Type: |
Clay Wet Sand |
Product Description

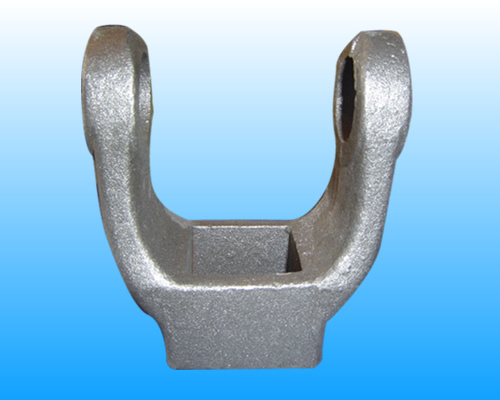

Bracket iron casting with high quality
Product Description
Material: Grey Iron, Ductile Iron, Malleable Iron, Carbon Steel, Aluminum,Brass,Bronze, copper ,zinc, Stainless Steel(Little) etc
Tolling process: Resin sand/Green Sand
Part unit weight range:0.5kg-20000kg
Max/Min wall thickness requirements: 4mm-250mm
Heat Treatment: Annealing, Quenching and tempering, Normalizing
Surface treatment: Paint,Anti-rust oil,Hot dipping galvanized,Powder coating
Products application: Machinery applications, automotive industry, lighting equipment, household appliances etc
Size and design :As per the customer's drawings and requirements
Sand casting Advantage: Low cost
Wrought Iron Fence (Garden Fence)
Material: Grey Iron
Surface finish process: Shot blast, Power coated
Made according to customers' drawing, specification or/ and samples
We are specializing in grey iron castings, ductile iron castings and aluminum castings. Our foundries have been making casting for about 30 years, most of our engineers and workers have at least 15 years of experience in the fields of castings, so we can supply with most favorable prices and suggest most suitable choice on casting process while we get the drawings from our customers.
Please see our abilities for casting as follows:
Material: Grey Iron, Ductile Iron, Aluminum
The casting techniques: Sand casting, lost foam casting/EPC casting, shell mold casting, permanent mold casting, low pressure die casting, high pressure die casting, gravity die casting.
Our production capability: 500-800 tons / per month.
The weights for iron castings: 0.80kgs - 3000kgs.
The weights for aluminum castings: 0.03kgs - 400kgs.
Machining: Turning, cutting, milling, grinding, drilling, reaming and threading.
Tolerance for machining: 0.02mm-0.05mm
Equipment: Lathe, planer, drilling machine, tapping machine, line cutting, milling machine, CNC machining center.
Surface Treatment: Shot blast, painting, chrome plating, power coating and anodizing
Made according to customers' drawing, specification and / or samples
Any demand or enquiry, please do not hesitate to contact us.
Sincerely look forward to establishing a stable long-term friendly business relationship with you.
| 1. Ductile Iron Castings: |
| 1) molding process: | Resin sand/Green Sand |
| 2) Material: | EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2 |
| 3) Molding: | Hand molding/Molding machine Z145/146/148/Molding line. |
| 4) Possible Heat Treatment: | Annealing |
| 5) Industry involved: | Municipal Construction / Fluid
/Automotive |
| 6) Part unit weight range: | 0. 5kg-2000kgs |
| 7) Max/Min wall thickness requirements: | 4mm-250mm |
| 8) Manufacturer Certification: | ISO9001(2000)/ TS16949 |
| 2. Grey iron castings: |
| 1) molding process: | Green sand/Resin sand |
| 2) Material: | EN-GJL-150/DIN 1691 GG-15
EN-GJL-200/DIN 1691-GG20
EN-GJL-250/DIN1691-GG25
EN-GJL-300/DIN1691-GG30 |
| 3) Molding: | Hand molding/ Molding machine Z145/146/148/Molding line. |
| 4) Industry involved: | Municipal industry/Construction Fluid industry/Automotive industry |
| 5) Part unit weight range: | 0.5kg-2000kgs |
| 6) Max/Min wall thickness requirements: | 4mm |
| 7) Manufacturer Certification: | ISO9001(2000)/ TS16949 |
| 3. Malleable castings: |
| 1) molding process: | Green Sand |
| 2) Material: | Ferrite Malleable Iron KTH350-10, KTH370-12, KTZ2550-04 |
| 3) Molding: | Hand-molding/Mechanical molding/Molding machine/Molding line. |
| 4) Possible Heat treatment: | Annealing, Normalizing, Quenching |
| 5) Industry involved: | Power Transmission/Construction Industry |
| 6) Part unit weight range: | 0.2kg-15kgs |
| 7) Max/Min wall thickness requirements: | 4mm-10mm |
| 8) Representative Product: | Insulator Caps/Fastener/Scaffold |
| 9) Manufacturer Certification: | ISO9001(2000)
|
Our company supplies different kinds of products. High quality and favaroble price. We' Re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
