| Prod Model: |
CF-058 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Manmade Wooden Case or Pallet |
| Certificate: |
ISO 9001 SGS CE |
| Production Capability: |
150tons Per Month |
| Origin Place: |
Qingdao China |
| Brand: |
Chifine |
| Service: |
OEM and ODM |
| Drawing: |
CAD,Igs,STP,Prt,etc |
| Heat Treatment: |
Tempered or Annealed,Quenched,etc |
| Tolerance: |
Class CT7~CT9 |
| Machining Type: |
CNC Turning Milling Drilling Lathe |
| Type: |
Clay Wet Sand |
Product Description
Brass /Bronze /Copper Casting for Valve Part
Product Description
Material: Various brass alloy, bronze, copper
Standard: DIN, ASTM, BS, JIS etc.
Process: Casting, deburring, machining, surface treatment, packing
Technical Process: Low pressure die casting, high pressure die casting, sand casting
Surface treatment : Painting, polishing, heat treatment, plaining, galvanization, shot blasting, chromate plating, power coated and anodizing
Size and design: As the customer's drawings and requirements or as the customer's samples
Packing: Bubble bag+Carton+Wooden pallet or as customers' requirements
Inspection: Foundry in-house or third Party inspection available upon customers requirements
Application:automotive parts, railroad parts, medical parts, marine parts, lighting parts, pump body, valve parts, architectural parts and furniture parts so on.
ADVANTAGES:
1. We have our own copper, brass, bronze melting factory, so wide material range could be selected.
2. CNC machinings improve the productivity.
3.20 years experience of cooperation with foreign countries.
4. We have QC team, all products need three times checked procedure before packing: Checking in workshop(solve timely in case any problem), professional checking(strictly according to related standard) and re-check before package(to avoid any possible neglect).
5. Welcome to visit our factory and your drawings.
6. If customers need samples, we can delivery.
As a professional company, Chifine have four groups of experienced teams to be in charge of different work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic serviceTesting Equipment
We use first-class facilities in the world to control all the processes to offer products with the best component quality and the correct dimension.
Customer's satisfaction is our final target!

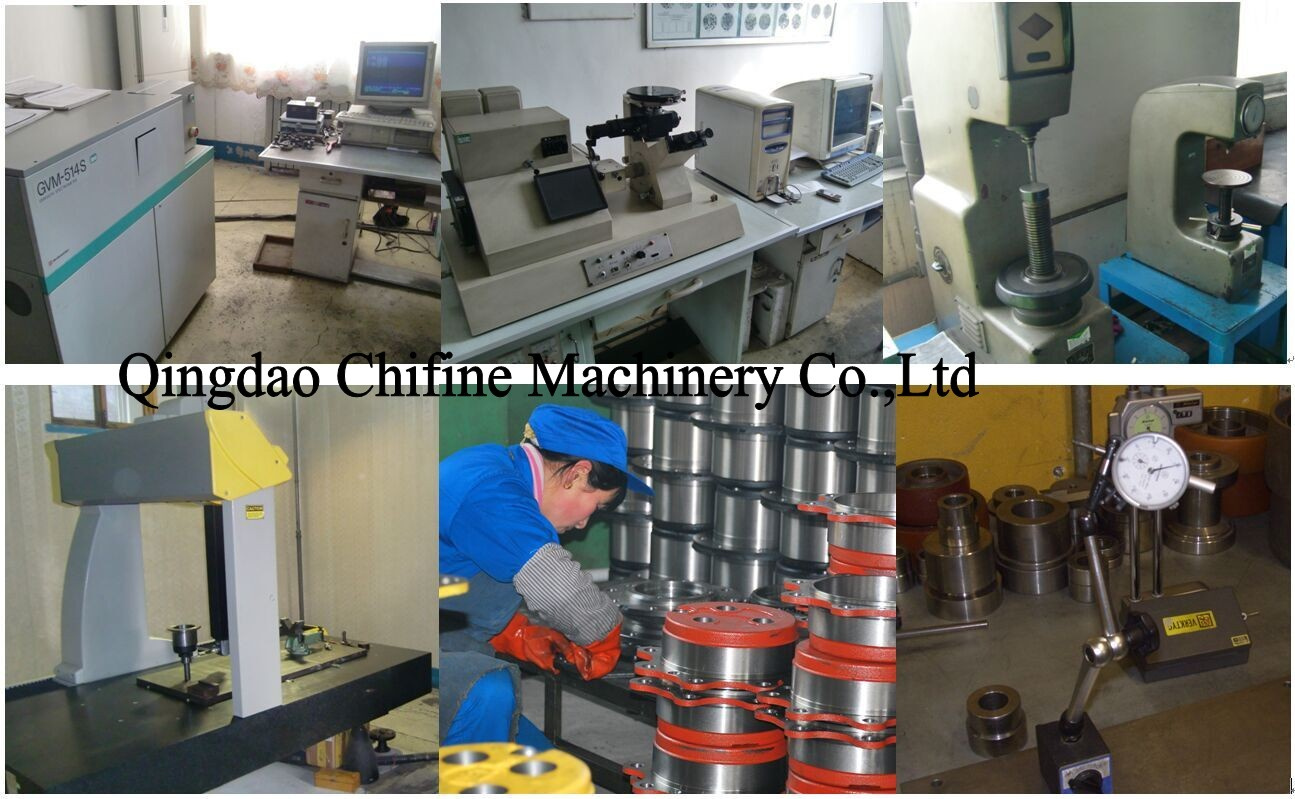

Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.
| PROCESS | MATERIAL | STANDARD |
SAND
CASTING | Green Sand | Grey Iron, Ductile Iron, Malleable Iron, Stanless Steel, Carbon, Steel, Aluminium, Brass, Bronze | ASTM
BS
JIS
DIN
etc |
| Furan Resin Sand |
| Cold Harden Resin Sand |
INVESTMENT
CASTING | Sodium Silicone (Water galss) | Stainless Steel, Carbon Steel, Special Alloy Steel Bronze, Brass, Aluminum |
| Silica Sol |
| FORGING | Hammer Forging | Stainless Steel, Carbon Steel, Alloy Streel, Brass, Aluminum |
| Die Forging |
| Roll Forging |
| STAMPING MACHINING | STAMPING MACHINING | All metal material |

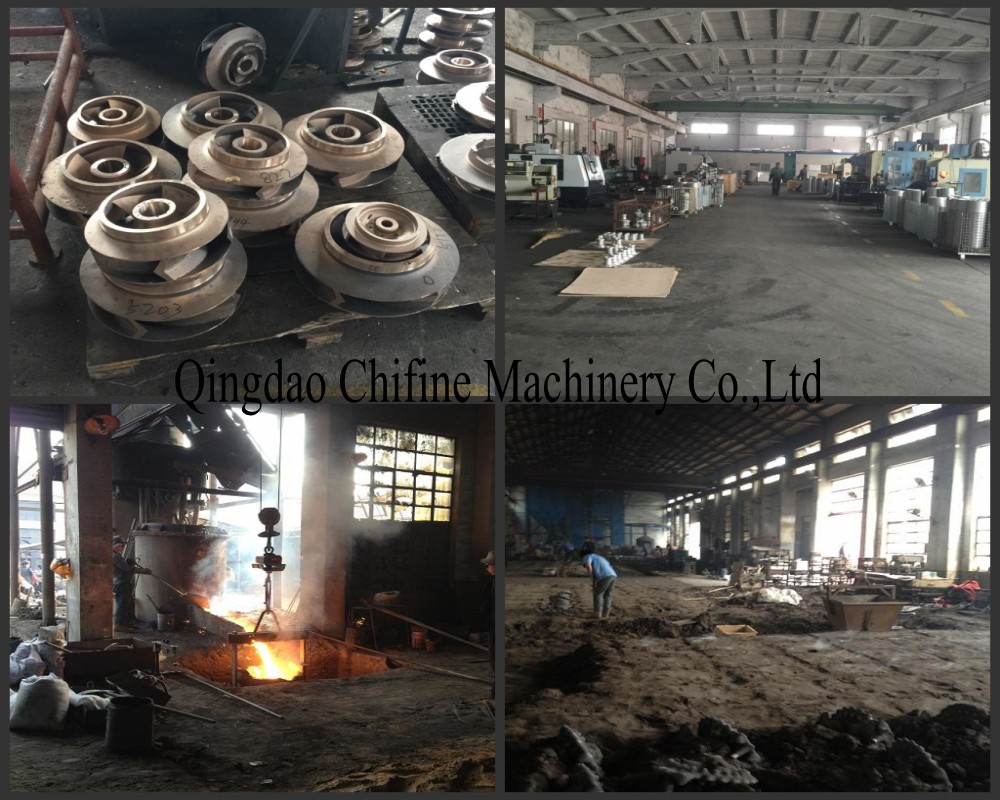

Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
