Brass Melting Furnace

Name: Brass Melting Furnace
Brand: china-castingforging.com
SKU: 781501165
Availability: InStock
Rating: 4.7 (102 reviews)

Price:	US $ 1000-100000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	T/T,Western Union

Contact Supplier

Shandong Hiking International Commerce Group Co., Ltd.

Showroom Product Company Profile

Prod Model:	Brass Melting Furnace
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Casting Scope:	6mm-60mm Copper Rod,Copper Bar, Brass Rod
Color:	Blue,Grey,Green, or Any Color Required
Type:	Electric Holding Furnace
Fuel:	Furnace
Usage:	Brass Melting Furnace

Product Description

1. Product Name: Brass Melting Furnace,Copper Melting Furnace and Holding Furnace,Copper rod casting furnace

2. Model: GTY
3. Usage: Copper melting holding, brass melting, Copper bar continuous casting, Copper rod casting, brass rod casting, brass bar casting, copper melting. 6-60mm Copper Bar casting

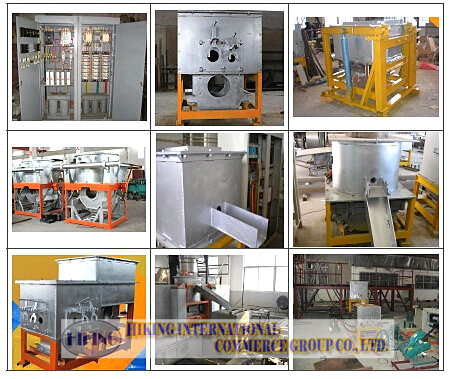

4. Equipment Composition and Photos:
1. Melting and holding Furnace 1 set
2. Electric Cabinet 1 Set

5. Equipment Package: Plastic film protection and plywood box.

6. Equipment Delivery: By sea container, train container, or by trucks.

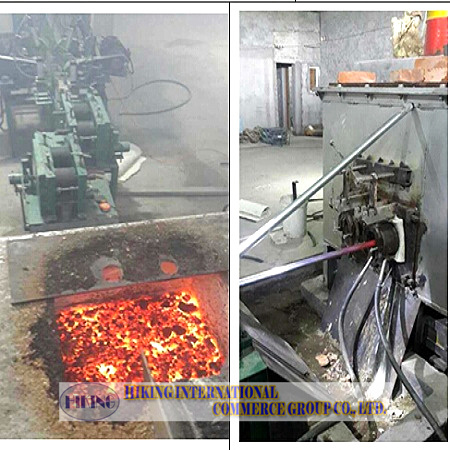

7. Equipment Working Site:

8. Aftersales Service:
1.Paper documents:

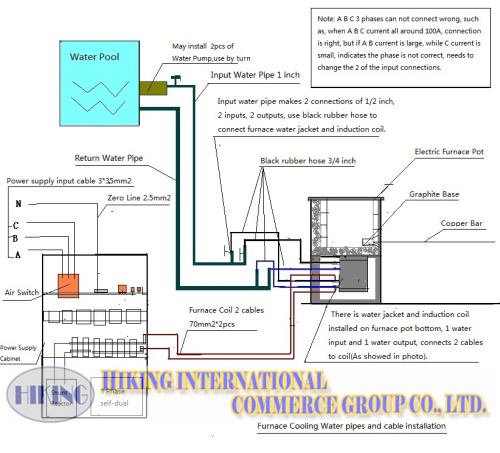

We offer all related schemes for building furnace foundation, furnace installation, cables connections, pipes connections.

2.Installation and commissioning:
We offer engineers for assistant of equipment installation and commissioning.
3.Spare parts support:
We support all spare parts in time when there is need for all the time after sales.

GYT-3000 Electric Melting Furnace		GYT-2000 Electric Melting Furnace
Minimum Capacity (T): 0.85		Minimum Capacity (T): 0.7
Melting Furnace Rated Capacity (T):7.5		Melting Furnace Rated Capacity (T):5
Rated Voltage (V): 380		Rated Voltage (V): 380
Phase Number: 3		Phase Number: 3
Frequency of Input Current (HZ): 50		Frequency of Input Current (HZ): 50
Melting Rate ( t/h): 3		Melting Rate ( t/h): 2
Power Consumption(kw h/t) : 230		Power Consumption(kw h/t) : 240
Temperature Holding Power (kw): 160		Temperature Holding Power (kw): 120
Rated Power (kw): 720		Rated Power (kw): 480
Rating Working Temperature (ºC): 1250		Rating Working Temperature (ºC): 1250
Cooling Water Pressure (Mpa): 0.2-0.4		Cooling Water Pressure (Mpa): 0.2-0.4
Cooling Water Consumption (t/h): 3.8 (Coil water jacket)		Cooling Water Consumption (t/h): 3.8 (Coil water jacket)
Weight of Molten Hook (kg): 330		Weight of Molten Hook (kg): 230

GYT-1500 Electric Melting Furnace		GYT-1000 Electric Melting Furnace
Minimum Capacity (T): 0.55		Minimum Capacity (T): 0.5
Melting Furnace Rated Capacity (T):2.2		Melting Furnace Rated Capacity (T):2
Rated Voltage (V): 380		Holding Furnace Rated Capacity (T): 4
Phase Number: 3		Rated Voltage (V): 380
Frequency of Input Current (HZ): 50		Phase Number: 3
Melting Rate ( t/h): 1		Frequency of Input Current (HZ): 50
Power Consumption(kw h/t) : 260		Melting Rate ( t/h): 0.75
Temperature Holding Power (kw): 70		Power Consumption(kw h/t) : 260
Rated Power (kw): 240		Temperature Holding Power (kw): 70
Rating Working Temperature (ºC): 1250		Rated Power (kw): 180
Cooling Water Pressure (Mpa): 0.2-0.4		Rating Working Temperature (ºC): 1250
Cooling Water Consumption (t/h): 2.8 (Coil water jacket)		Cooling Water Pressure (Mpa): 0.2-0.4
Weight of Iron Core (kg): 815		Cooling Water Consumption (t/h): 2.8 (Coil water jacket)
Weight of Molten Hook (kg): 220		Weight of Iron Core (kg): 815
		Weight of Molten Hook (kg): 105

GYT-500 Electric Melting Furnace		GYT-750 Electric Melting Furnace
Minimum Capacity (T): 0.3		Minimum Capacity (T): 0.5
Melting Furnace Rated Capacity (T):1.8		Melting Furnace Rated Capacity (T):2
Holding Furnace Rated Capacity (T): 3		Holding Furnace Rated Capacity (T): 4
Rated Voltage (V): 380		Rated Voltage (V): 380
Phase Number: 3		Phase Number: 3
Frequency of Input Current (HZ): 50		Frequency of Input Current (HZ): 50
Melting Rate ( t/h): 0.5		Melting Rate ( t/h): 0.75
Power Consumption(kw h/t) : 260		Power Consumption(kw h/t) : 260
Temperature Holding Power (kw): 55		Temperature Holding Power (kw): 70
Rated Power (kw): 120		Rated Power (kw): 180
Rating Working Temperature (ºC): 1250		Rating Working Temperature (ºC): 1250
Cooling Water Pressure (Mpa): 0.2-0.4		Cooling Water Pressure (Mpa): 0.2-0.4
Cooling Water Consumption (t/h): 1.6 (Coil water jacket)		Cooling Water Consumption (t/h): 2.8 (Coil water jacket)
Weight of Iron Core (kg): 550		Weight of Iron Core (kg): 815
Weight of Molten Hook (kg): 80		Weight of Molten Hook (kg): 105

GYT-300 Electric Melting Furnace		GYT-300 Hydraulic Tilting Electric Melting Furnace
Minimum Capacity (T): 0.2		Minimum Capacity (T): 0.2
Melting Furnace Rated Capacity (T):1.2		Melting Furnace Rated Capacity (T):1.2
Holding Furnace Rated Capacity (T): 2.8		Holding Furnace Rated Capacity (T): 2.8
Rated Voltage (V): 380		Rated Voltage (V): 380
Phase Number: 3		Phase Number: 3
Frequency of Input Current (HZ): 50		Frequency of Input Current (HZ): 50
Melting Rate ( t/h): 0.3		Melting Rate ( t/h): 0.3
Power Consumption(kw h/t) : 280		Power Consumption(kw h/t) : 280
Temperature Holding Power (kw): 45		Temperature Holding Power (kw): 45
Rated Power (kw): 90		Rated Power (kw): 90
Rating Working Temperature (ºC): 1250		Rating Working Temperature (ºC): 1250
Cooling Water Pressure (Mpa): 0.2-0.4		Cooling Water Pressure (Mpa): 0.2-0.4
Cooling Water Consumption (t/h): 1.6 (Coil water jacket)		Cooling Water Consumption (t/h): 1.6 (Coil water jacket)
Weight of Iron Core (kg): 420		Weight of Iron Core (kg): 420
Weight of Molten Hook (kg): 60		Weight of Molten Hook (kg): 60

GYT-200 Electric Melting Furnace
Minimum Capacity (T): 0.15
Melting Furnace Rated Capacity (T):0.8
Holding Furnace Rated Capacity (T): 1.5
Rated Voltage (V): 380
Phase Number: 3
Frequency of Input Current (HZ): 50
Melting Rate ( t/h): 0.2
Power Consumption(kw h/t) : 300
Temperature Holding Power (kw): 30
Rated Power (kw): 60
Rating Working Temperature (ºC): 1250
Cooling Water Pressure (Mpa): 0.2-0.4
Cooling Water Consumption (t/h): 1.6 (Coil water jacket)
Weight of Iron Core (kg): 221
Weight of Molten Hook (kg): 45

Shandong Hiking International Commerce Group Co., Ltd. is professional supplier of industry metallurgy equipment, and exported for years.

Our main products are as followings:

1. Industry Resistance Heat Treatment Furnace (Quenching furnace, hardending furnace, annealing furnace, heat treatment furnace)

1.1 Boggie Resistance Furnace

1.2 Box Type Resistance Furnace

1.3 Experiment Heating Furnace

1.4 Pit Furnace(Nitriding furnace, carburizing furnace, carbonitriding furnace)

1.5 Induction Heating Furnace

2. Melting Furnace (Melt iron, steel, stainless steel, copper, brass, aluminum, silver, gold, etc)

3.1 Induction Melting Furnace (Reducer tilting induction furnace; Hydraulic tilting induction furnace)

3.2 Resistance Melting Furnace

3.3 Gas Heat Melting Furnace

4. Casting Machinery

4.1 Copper Bar Casting

4.2 Sand Mixer

4.3 Molding Machine

4.4 Core Shooter

5. Water Cooling Tower

5.1 Closed Type Cooling Tower

5.2 Open Type Cooling Tower

5.3 Heat Exchanger

6. Dedusting Equipment

7. Ladle

8. Transformer

9. Spare Parts

MPU-2FK Main Board, MPU-6FK control board, MPU-8FK Circuit board, capacitor, thyristor, SCR, resistor, pulse transformer, temperature tester, Water cooled cable, induction coil.

Our equipment is distributed all over 50 countries, welcome to our company with inquiry telephone or email for business cooperation.
