Product Description

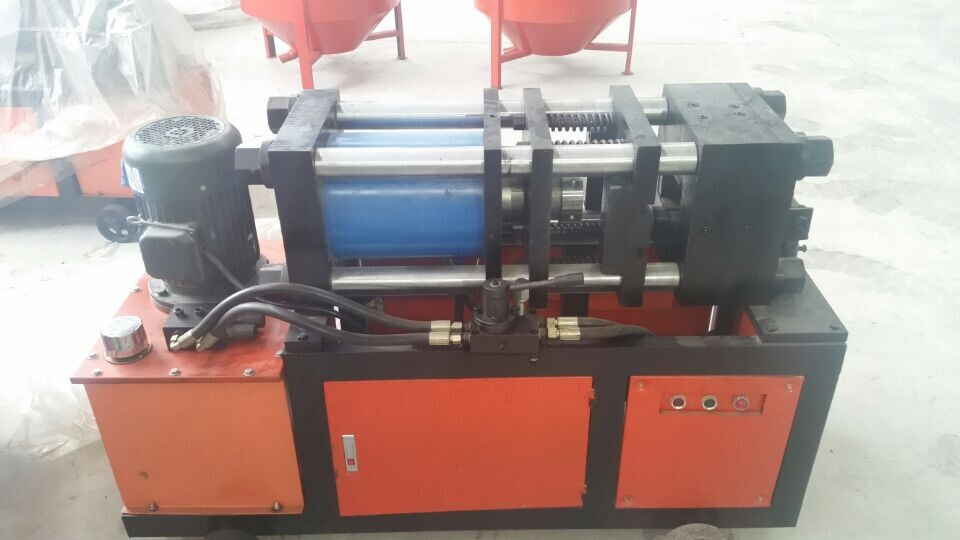

Bridge reinforced hydraulic head upsetting machine
:Bridge pile foundation reinforced upsetting machine. Hydraulic Upsetting Machine screw steel head upsetting machine.
Extension bar upsetting machine Keywords: upsetting machine, reinforced upsetting machine, upsetting
Upsetting straight thread, electric upsetting, upsetting sleeve
Cold upsetting, upsetting straight thread steel bar joint
Steel straight thread upsetting machine principle and application:
The reinforcement end of plastic deformation by using the principle of cold heading, 4 ~ 6mm diameter increases, and then processing thread. After the thread processing the actual cross-sectional area greater than the reinforcement of the original cross-sectional area, greatly improve the tensile strength of the joint. This upsetting the threaded joint by tensile test all broken in parent material, suitable for engineering purposes of higher requirements
Reinforced straight thread upsetting machine is mainly used for construction engineering ribbed steel rolling straight thread head is the key equipment for steel bar connection. Can machining diameter 16-40 mm HRB335 and HRB400 ribbed bars with. Reinforced straight thread rolling machine, is composed of a machine frame, clamping pliers, guide rail, skateboard, cycloid pin wheel reducer, stripping rib rolling head, limit of feeding mechanism and automatic opening and closing mechanism, travel mechanism, cooling system, electric control box, control system, etc. part
Steel straight thread upsetting machine features:
Reinforced upsetting machine has the advantages of simple operation, compact structure, reliable work, has a unique automatic folding mechanism
Upsetting machine for reinforcing steel bar can be a fixture to complete from stripping rib to roll thread rolling process, full shaped teeth of the thread processing, high size precision, high mechanical strength; can be processed is fastening screw, processing anti thread.
Reinforced upsetting machine for the end of the steel bar section area expanded 15-20%
Reinforced upsetting machine can process the diameter range from 16 to 40mm, HRB335 and HRB400 grade steel.
The main technical parameters of reinforced straight thread upsetting machine:
1 steel diameter range: 16- Phi Phi 40mm
2 main motor power: 4 KW
Equipped with 3 power: three-phase 380V 50Hz
4 spindle speed: 40-62r/min
5 the maximum length of the screw steel 200mm
6 weight: 560kg
Full automatic hydraulic steel head upsetting machine is the latest technology, the latest products; the use of advanced hydraulic system and electric structure principle; no need to work in a dynamic high pressure; upsetting operation only button according to the last power, more than 10 seconds, the whole upsetting work completed, in order to ensure safe and civilized production, simple operation, convenient; in the upsetting, the mold can be used for a long time, no loss, and a set of specifications of mould steel processing can be 2 kinds of specifications, high processing precision, quality assurance. Qinghai Xining hydraulic reinforced upsetting machine which is suitable for phi 16- Phi 32mm, II, III grade building reinforced greatly reduce labor costs, improve production efficiency, a few minutes of professional training to posts.
Extension of upsetting machine for reinforcing steel bar reinforced end plastic deformation by using the principle of cold heading, 4 ~ 6mm diameter increases, and then processing thread. After the thread processing the actual cross-sectional area greater than the reinforcement of the original cross-sectional area, greatly improve the tensile strength of the joint. Threaded joints for the upsetting of the tensile experiment detection all broken in the base metal for in building, road and bridge, power plants and other requirements of the higher engineering;
Mechanical principle: make an end of the reinforcing bar is plastic deformation by using the principle of hydraulic cold heading, 4 ~ 6mm diameter increases, and then processing thread. After the thread processing the actual cross-sectional area greater than the reinforcement of the original cross-sectional area, greatly improve the tensile strength of the joint. Threaded joints for the upsetting of the tensile experiment detection all broken in the base metal for on demand higher engineering
Extension bar upsetting machine:
This machine is construction of reinforced mechanical connection (upsetting straight thread connection) machinery, its main function is to building reinforced end of extrusion upsetting, increase the sectional area of reinforcement, it is suitable for phi 16 diameter 32mm II, III grade building steel bar.
The extension of reinforced upsetting machine equipment characteristics:
(1) the operation is simple, hydraulic and electrical control, do not need professional technicians, training ten minutes to start operation;
(2) the end of the steel bar cross-sectional area to expand the 15-20%, so that the processing thread bottom diameter not less than the steel bar diameter, fully exert the tensile strength. Qinghai Xining steel bar hydraulic upsetting machine diameter increases 4 ~ 6mm Qinghai Xining steel bar hydraulic upsetting machine applicable to the construction, road and bridge, power plants and other requirements of the higher engineering; mechanical principles: the principle of hydraulic cold heading steel end plastic deformation is greatly improved the tensile strength of the joint
