Briquetting Press

Briquetting Press
Price: Negotiable
Min Order: 1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Application:

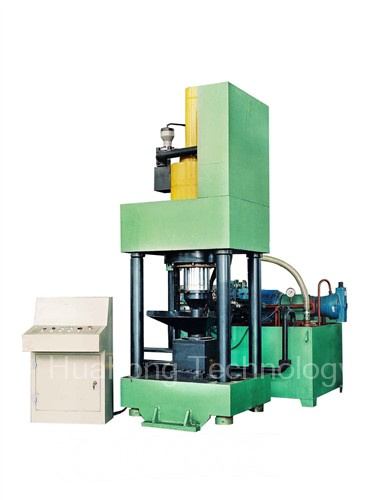

Y83 series of hydraulic briquetting press is used to compress metal sawdust (steel, cast iron, aluminum, copper, etc. ) into high density briquetts to lower burning loss during smelting. Cast iron briquet after compressed can substitute pig iron as raw material.

Features:
-Hydraulic drive, operation stable, no vibration, safe & reliable
-Simple foundation needed
-PLC control, manual & auto operation optional.
Model cylinder force
(KN)
Size of mould
(mm)
Unit Pressure
(MPa)
Briquet size
(mm)
Briquet weight
(kg)
Capacity
(kg/hr)
Motor
(kW)
YE83-250 2000+550 Φ110*300
Φ120*300
263
221
Φ110*70~100
Φ120*70~100
3.6~5.2
4.1~5.9
1000~1100 22
Y83-315 2850+550 Φ120*180
Φ140*180
278
204
Φ120*50~70
Φ140*50~70
3.1-4.5
3.6-5.1
900-1100 22
YE83-315 2850+550 Φ120*300 278 Φ120*70~100 4.4-6.3 1100-1200 30
Y83-400 3450+550 Φ125*300
Φ140*300
326
260
Φ125*70~100
Φ140*70~100
5-7.2
5.9-8.5
1200-1300 30/37
Y83-500 4900+600 Φ150*300
Φ180*300
283
196
Φ150*70~100
Φ180*70~100
6.9-9.9
8.9-12.8
1300-1800 30/45
YE83-500 4900+600 Φ150*300
Φ180*300
283
196
Φ150*70~100
Φ180*70~100
6.9-9.9
8.9-12.8
1300-1800 45
Y83-250 2000+550 Φ110*180
Φ120*180
263
221
Φ110*50~70
Φ120*50~70
2.6-3.7
2.9-4.1
800-900 18.5
Jiangsu huahong technology stock Co., Ltd. is located in jiangyin city in yangtze river delta zone. It is an enterprise specialing in manufacturing large-medium sized hydraulic equipmenr. It is the domestic large-scale production base of hydraulic baler and hydraulic shear. After 20 years' development, the company has grown to be a renowned enterprise in junk-recyle industry. We can produce over 100 types of equipment of over 10 series.

The company covers an area of 120 000 square meters. It owns totally more than 300 sets of large CNC floor type boring and milling machine, plano milling machine, nc lathe, nc cuttig machine, CNC machining centerand deep hole drilling and boring machine, and digital ultrasonic testing device abd etc.

The products are sold to more than 30 countries and areas in European, Asian and American markets.
